MQDC-430RA Banner Cordsets

MQDC-430RA on Powermatic Associates
Banner

Part#:MQDC-430RA

Manufacturer:Banner

Category:Cordsets

Alt. Part#:27080

Product Lifecycle:Active

In-stock parts: 1

Dec 21, 2024

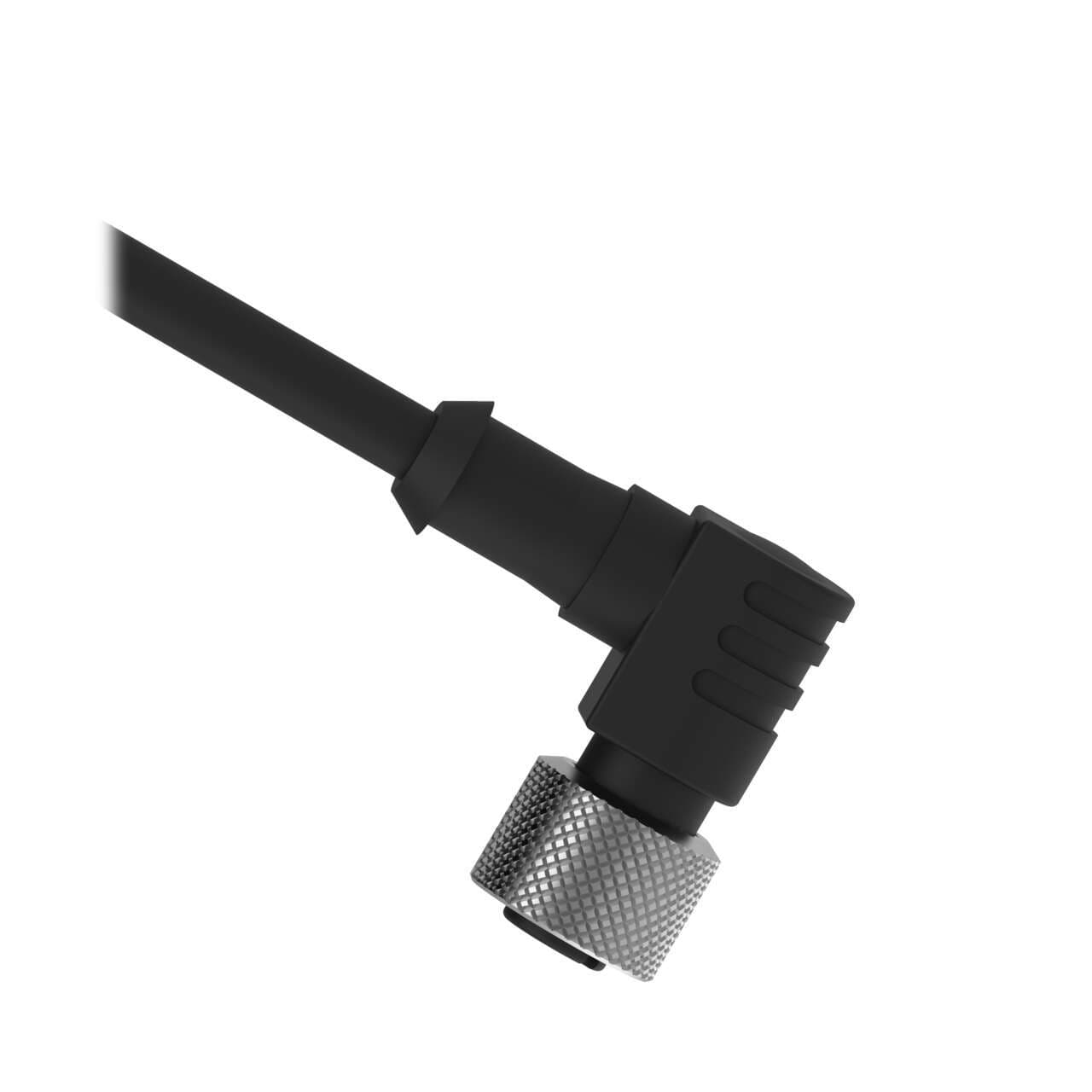

Cordset: Single Ended M12; 4-pin Right-Angle Female; 9 m (29.53 ft) 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQDC-430RA Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    361.966416 g
  • Country Of Origin
    US
  • Feature: Hazardous Area
    No
  • Oil/Grease Resistant
    No
  • Primary Orientation
    Right Angle
  • Primary Number of Conductors
    4
  • Primary AWG
    22
  • Secondary Connector Type
    Flying Leads
  • Primary Gender
    Female
  • Primary Coupling Method
    M12 Single Key
  • Primary Connector Type
    EURO
  • Voltage Rating (V)
    250 V ac/dc
  • Maximum Temp. (°C)
    105
  • Minimum Temp. (°C)
    -40
  • IP Rating
    IP67
  • Current Rating (A)
    4.0
  • Coupling Material/Color
    Nickel Plated Brass
  • Number of Contacts
    4
  • Shield/No Shield
    No Shield
  • Connector Body Material/Color
    PUR Black
  • Cordset Length (m)
    9.14
  • Trunk Length (m)
    No Trunk
  • Outside Cable Diameter (mm)
    5.2
  • Cable Jacket Color
    Black
  • Cable Jacket Material
    PVC
  • Number of Connectors
    1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MQDC-430RA Description

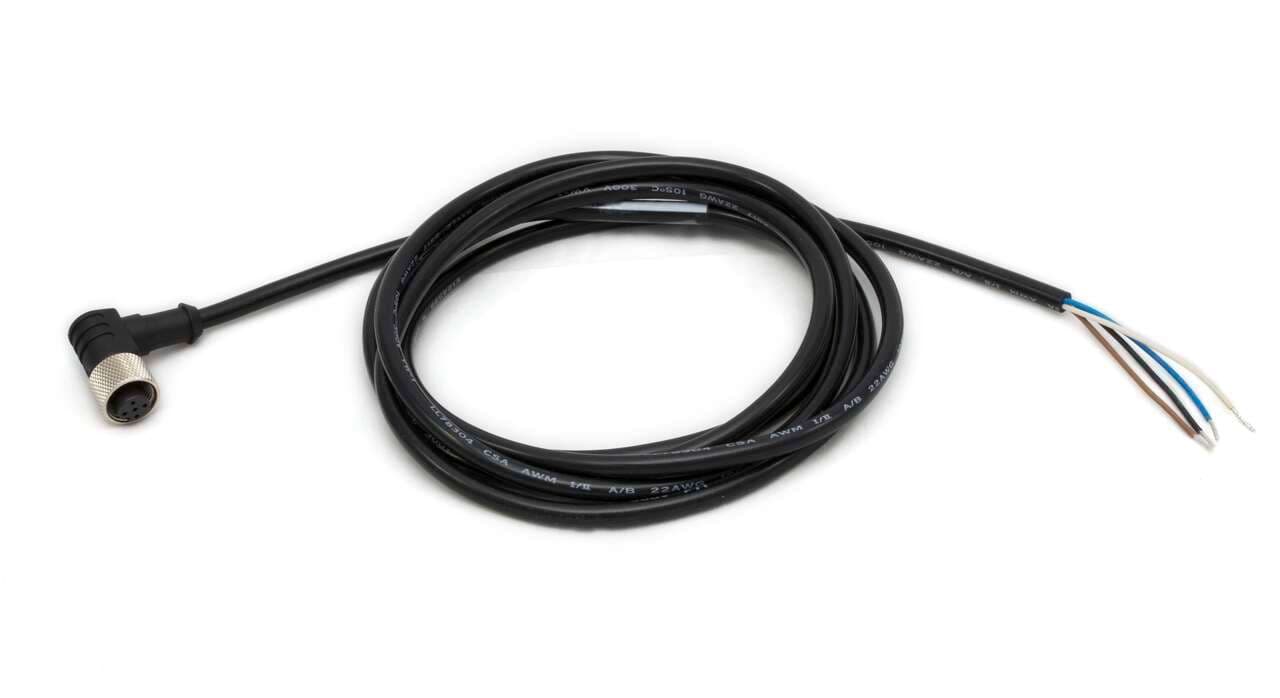

Banner Engineering MQDC-430RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 4-pin Euro-style M12 female angled connector and bare end flying leads. The cable has a diameter of 5.2mm and is encased in black sheathing made from PVC, ensuring durability and protection against environmental factors. The connector's coupling nut is made from nickel-plated brass, enhancing its resistance to corrosion. This model offers an ambient air temperature operation range of -40 to +105°C and is rated for a voltage of 250Vac. With a length of 30ft (9m) and a degree of protection rated at IP67, this cable is suited for a wide range of industrial environments.

Related documents MQDC-430RA Specs

MQDC-430RA 223455.pdf
