PKG 3Z-6/S90/S101 Turck Cordsets

Turck PKG 3Z-6/S90/S101 Actuator and Sensor Cordset, Connection Cable, Cable length (L) 6 m, M8, Female, Straight, 3-pin, Snap-on Connector with Sleeve Lock, TPU jacket, Black, 3X24 AWG, -40 Cold Bend Rating, Flame Ratings: UL1061, CSA FT1, Flexlife® and C-Track Approved, Cable length: 6 m
Turck

Part#:PKG 3Z-6/S90/S101

Manufacturer:Turck

Alt. Part#:U2133-93

Product Lifecycle:Active

In-stock parts: 1

Sep 28, 2024

Actuator and Sensor Cordset, Connection Cable, Cable length (L) 6 m, M8, Female, Straight, 3-pin, Snap-on Connector with Sleeve Lock, TPU jacket, Black, 3X24 AWG, -40 Cold Bend Rating, Flame Ratings: UL1061, CSA FT1, Flexlife® and C-Track Approved, Cable length: 6 m

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PKG 3Z-6/S90/S101 Turck price in the box on the right side or send a quick quote.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKG 3Z-6/S90/S101 Description

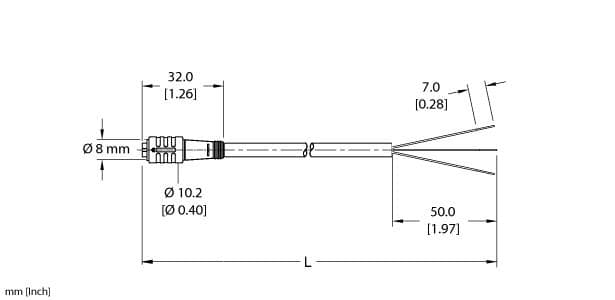

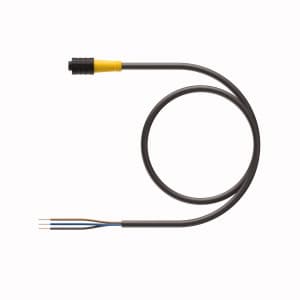

Turck PKG 3Z-6/S90/S101 is a single-ended mating cable/cordset designed with a TPE jacket, making it suitable for C-Track and drag chain applications. It features a 4.4mm cable sheath outer diameter and is capable of handling a rated current of 4A. This part utilizes a 3-pin M8 picofast female connector with a female snap-lock and bare end flying leads for connection. It falls under the M8 picofast to bare leads sub-range and measures 6 meters in length. The PKG 3Z-6/S90/S101 offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P. It is constructed with a nickel-plated brass coupling nut, POM locking sleeve, and TPU jacket. The color of the molded plug(s) and sheath is black. This cable is designed to operate at a rated voltage of 125Vac and supports a 3-wire configuration with a cross-section of 3 x #24AWG.

Related documents PKG 3Z-6/S90/S101 Specs

PKG 3Z-6/S90/S101 edb_U2133-93_eng_us.pdf

This item can ship within 24h!

Manufacturer warranty

$58.80

Stock:

1

Select Qty:

$58.80

$58.80 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
