MQDC1-515 Banner Cordsets
Part#:MQDC1-515
Manufacturer:Banner
Alt. Part#:47812
Product Lifecycle:Active
Get a quick Quote!

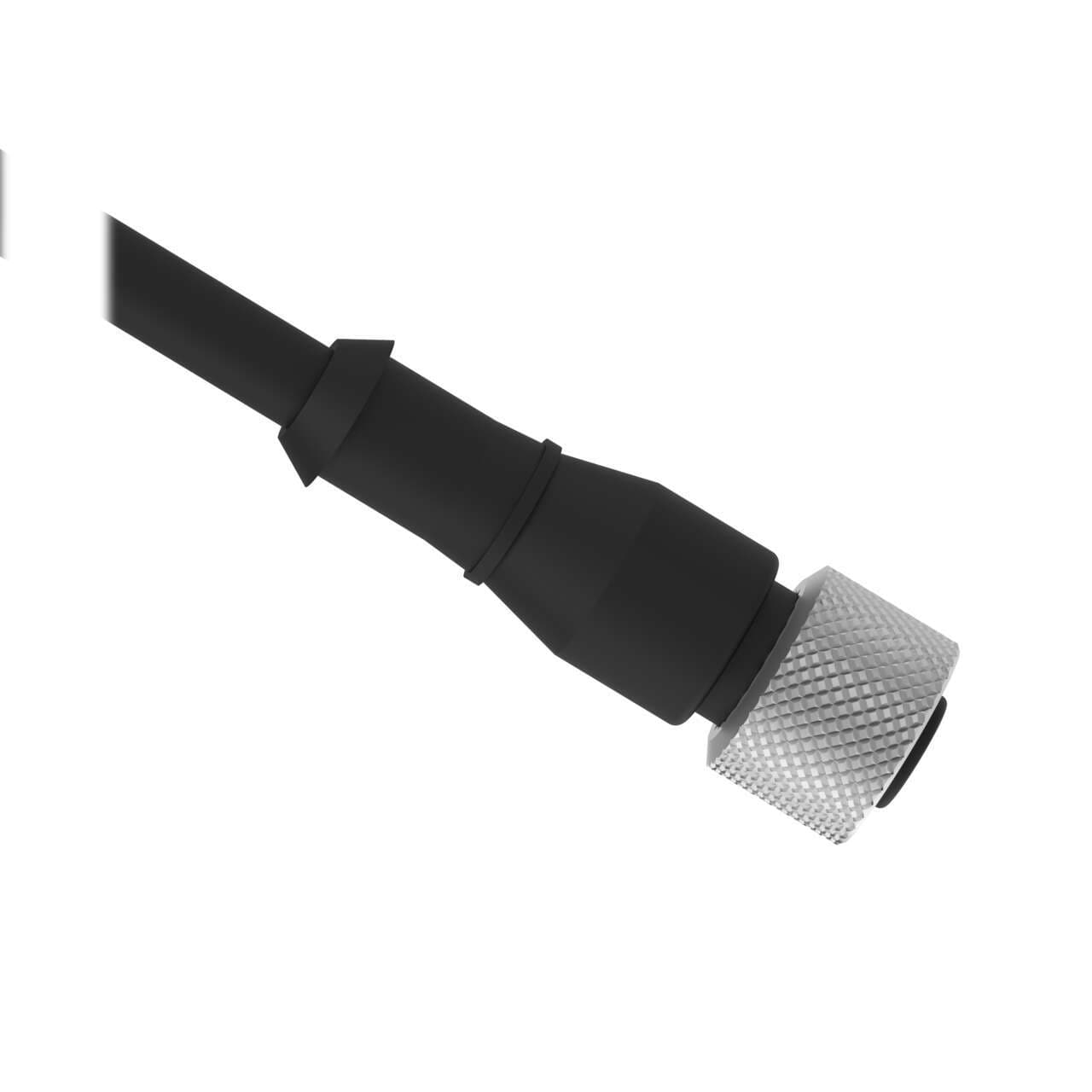

Cordset: Single Ended A-Code M12; 5-pin Straight Female Connector; 5 m (16.4 ft) Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQDC1-515 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 290.29888 g
- Country Of Origin US
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Primary AWG 22
- Primary Orientation Straight
- Primary Number of Conductors 5
- Secondary Connector Type Flying Leads
- Primary Gender Female
- Primary Coupling Method M12 Single Key
- Maximum Temp. (°C) 105
- Current Rating (A) 4.0
- Coupling Material/Color Nickel Plated Brass
- Primary Connector Type EURO
- IP Rating IP67
- Minimum Temp. (°C) -40
- Voltage Rating (V) 250 V ac/dc
- Number of Connectors 1
- Shield/No Shield No Shield
- Cable Jacket Material PVC
- Trunk Length (m) No Trunk
- Cordset Length (m) 4.57
- Outside Cable Diameter (mm) 5.6
- Cable Jacket Color Black
- Number of Contacts 5
- Connector Body Material/Color PUR Black
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
MQDC1-515 Description
Banner Engineering MQDC1-515 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and a length of 15ft (5m). This part is equipped with a 5-pin Euro-style M12 female straight connector and bare end flying leads for connectivity. The connector's coupling nut is made from nickel-plated brass, ensuring a secure connection. It operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for use in environments where dust and water resistance are necessary. The cable is black, and it is rated for a voltage of 250Vac.
