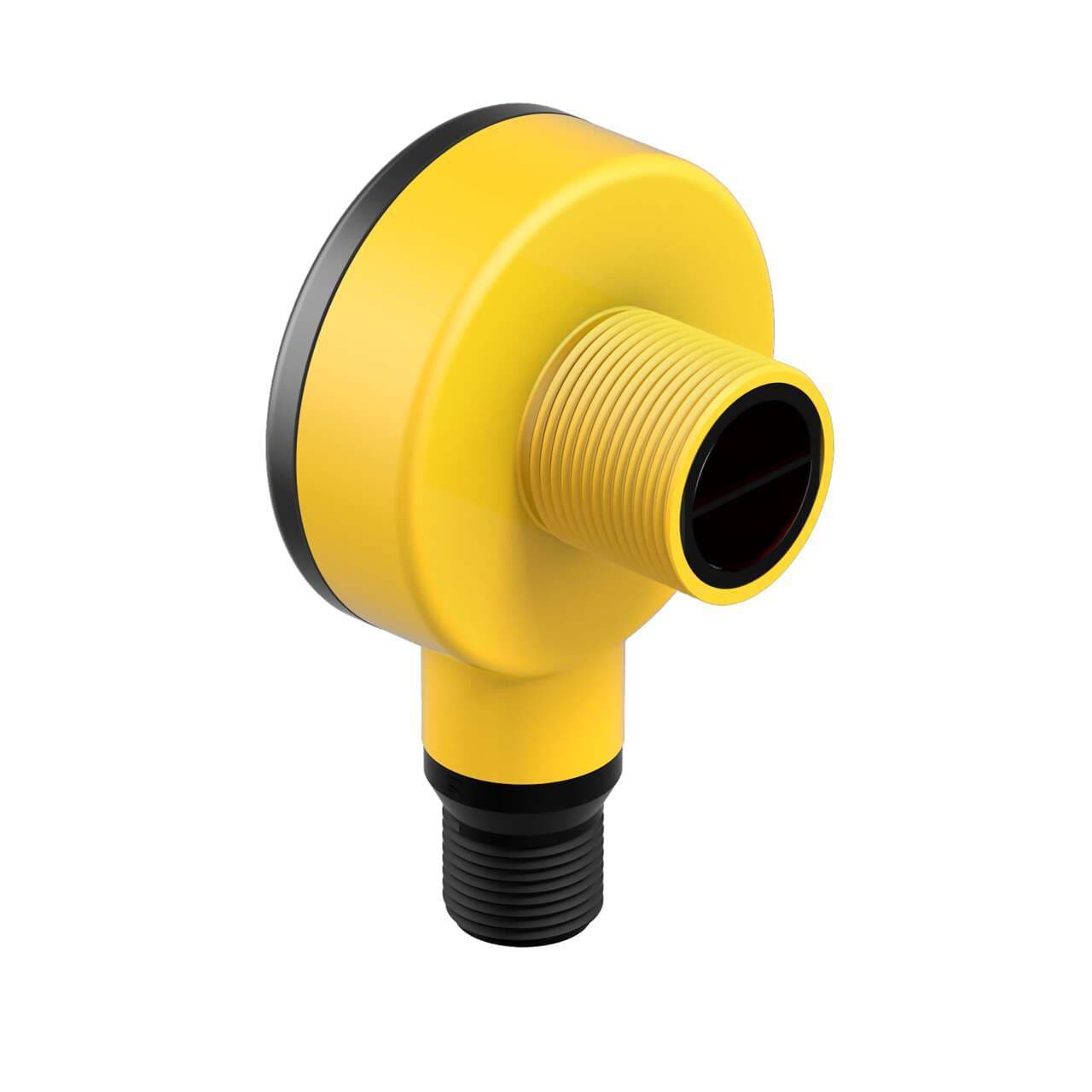

T18AW3DQ1 Banner Proximity Sensors

Name: T18AW3DQ1
Brand: Banner
Price: 114 USD
Availability: BackOrder

Part#:T18AW3DQ1

Manufacturer:Banner

Alt. Part#:34923

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM T18 Series: Diffuse; Range: 300 mm; Input: 20-250 V ac; Light Operate; 4-pin Micro Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the T18AW3DQ1 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
56.245408 g
Country Of Origin
US
Feature: Chemical Resistant
Yes
IO Link
No
DeviceNet
No
Feature: Audible
No
Feature: Ecolab Certified
Yes
Feature: Hazardous Area
No
Feature: Encapsulated
Yes
Feature: Timing (Hold/Delay)
No
Feature: Washdown Rated
Yes
Opposed Mode Emitter/Receiver
N/A
Indicator
LEDs
Adjustments
Potentiometer
Lens Material
Acrylic
Barrel Diameter (mm)
18
Max Op. Relative Humidity [%]
90% @ 50°C
NEMA Rating
NEMA 6P
IP Rating
IP67, IP69
Repeatability (µs)
4000

Number of Pins

Max Op. Temp. (°C)

Delay at Power-up (ms)

100

Special Feature: Water Detection

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Quick Disconnect Type

1/2 in. (Micro)

Output response time (ms)

Min Op. Temp. (°C)

-40

Operation

Light Operate

Connection

Integral QD

Power Supply/Supply Voltage

20-250 V ac

Max Sensing Distance (mm)

300

Power

Sensing Mode (Detailed)

Diffuse

Outputs

Solid-State AC Switch

Primary Housing Material

Thermoplastic

Sensing Beam

Infrared LED

Input/Output

Solid-State AC Switch

Housing Style

Barrel

Sensing Mode (General)

Proximity

Supply voltage (AC)

20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)

Wavelength

880 nm

Mounting mode

Threaded mount

Response time

16ms / 0.016 s

Degree of protection

IP67 IP69K NEMA 6P

Product series / family name

EZ-BEAM series

Sensing distance

300mm

Main function

Sensor (Photo-electric)

Design

diffuse mode

Diameter

40mm

Digital outputs

1 x digital output (Solid-state AC output; SPST contact type)

Ambient air temperature for operation

-40...+70 °C

Primary brand

Banner Engineering

Functions

Photo-electric sensor green LED (power ON) amber LED (output state) potentiometer adjustment

Shape

Cylindrical smooth

Operating mode

Light-ON

Material

thermoplastic housing Acrylic lns.

Sub-range name

T18 series

Light Color

Infrared (IR)

Thread size

M18

Compliant with standard(s)

cULus CSA CE

Connection type

Pre-equipped with 4-pin 1/2" Micro connector

Order code / Manufacturer SKU

34923

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

T18AW3DQ1 Description

Banner Engineering T18AW3DQ1 is a photo-electric sensor from the T18 series, designed with a diffuse mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and has an M18 cylindrical threaded/barrel shape. It is pre-equipped with a 4-pin 1/2" micro connector for connectivity and operates within a supply voltage range of 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.). The T18AW3DQ1 offers a threaded mount installation and can operate in ambient air temperatures ranging from -40 to +70°C. It boasts a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environments. The sensor has a 40mm diameter, a sensing distance of 300mm, and utilizes infrared light with a wavelength of 880 nm. It features a single digital output (Solid-state AC output; SPST contact type), operates in Light-ON mode, and has a response time of 16ms / 0.016 s.
