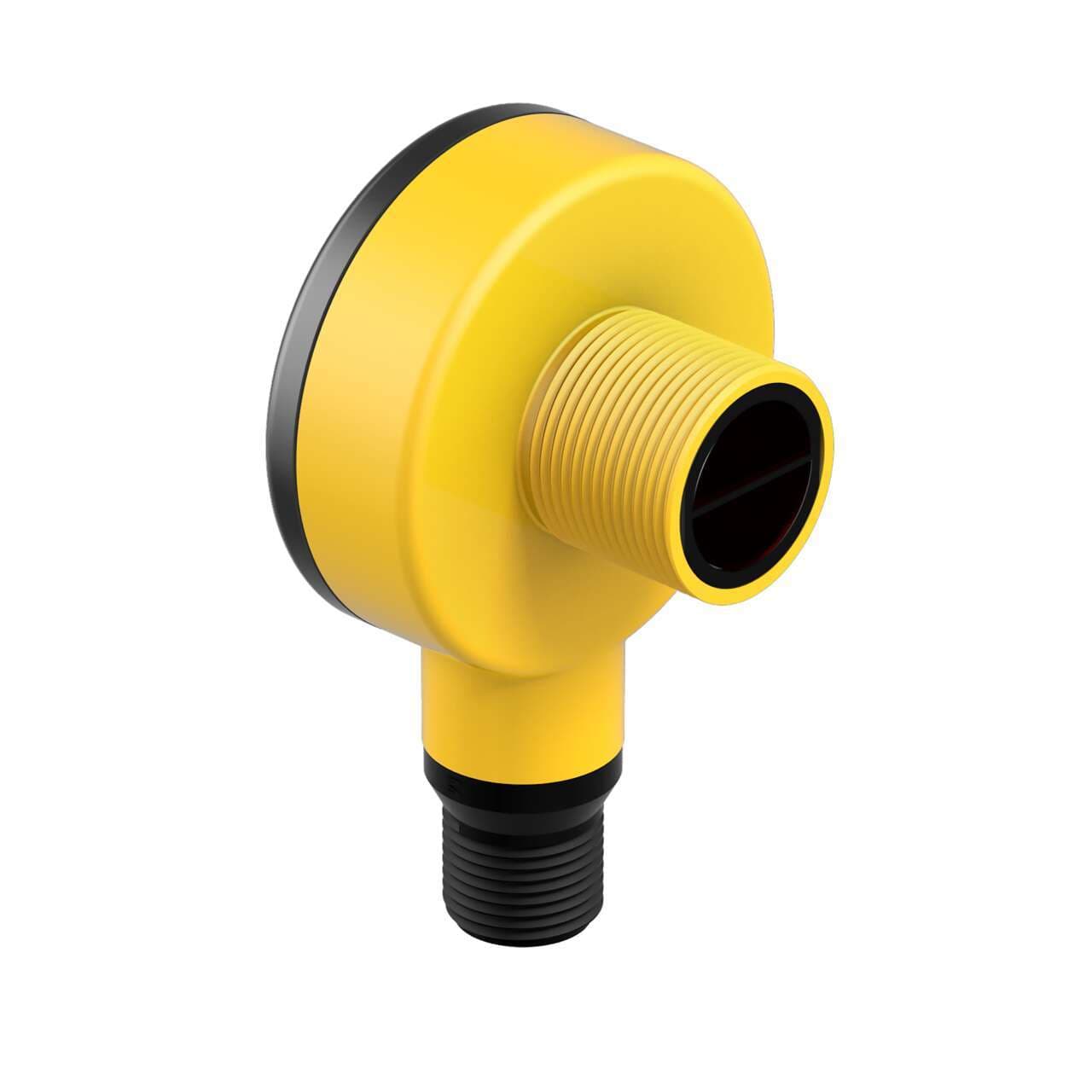

T18AW3LQ1 Banner Proximity Sensors

Name: T18AW3LQ1
Brand: Banner
Price: 114 USD
Availability: BackOrder

Part#:T18AW3LQ1

Alt. Part#:34927

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

EZ-BEAM T18 Series: Retro; Range: 2 m; Input: 20-250 V ac; Output: SPST Solid-state Light Operate; 4-pin Micro Integral QD

Product Details

Weight
57.152592 g
Country Of Origin
US
Feature: Audible
No
Feature: Chemical Resistant
Yes
IO Link
No
DeviceNet
No
Feature: Hazardous Area
No
Feature: Encapsulated
Yes
Feature: Timing (Hold/Delay)
No
Feature: Ecolab Certified
Yes
Indicator
LEDs
Feature: Washdown Rated
Yes
Opposed Mode Emitter/Receiver
N/A
Barrel Diameter (mm)
18
Adjustments
Potentiometer
NEMA Rating
NEMA 6P
Special Feature: Water Detection
No
Delay at Power-up (ms)
100
IP Rating
IP67, IP69
Lens Material
Acrylic

Max Op. Relative Humidity [%]

90% @ 50°C

Number of Pins

Repeatability (µs)

4000

Output response time (ms)

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Max Op. Temp. (°C)

Quick Disconnect Type

1/2 in. (Micro)

Operation

Light Operate

Power Supply/Supply Voltage

20-250 V ac

Min Op. Temp. (°C)

-40

Connection

Integral QD

Input/Output

Solid-State AC Switch

Outputs

Solid-State AC Switch

Max Sensing Distance (mm)

2000

Housing Style

Barrel

Primary Housing Material

Thermoplastic

Sensing Mode (Detailed)

Non-Polarized

Sensing Mode (General)

Retroreflective

Power

Sensing Beam

Infrared LED

Sub-range name

T18 series

Light Color

Infrared (IR)

Diameter

40mm

Digital outputs

1 x digital output (Solid-state AC output; SPST contact type)

Operating mode

Light-ON

Functions

Photo-electric sensor green LED (power ON) amber LED (output state) potentiometer adjustment

Shape

Cylindrical smooth

Response time

16ms / 0.016 s

Compliant with standard(s)

cULus CSA CE

Primary brand

Banner Engineering

Supply voltage (AC)

20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)

Connection type

Pre-equipped with 4-pin 1/2" Micro connector

Ambient air temperature for operation

-40...+70 °C

Main function

Sensor (Photo-electric)

Wavelength

950 nm

Thread size

M18

Degree of protection

IP67 IP69K NEMA 6P

Product series / family name

EZ-BEAM series

Design

retro-reflective mode

Sensing distance

Mounting mode

Threaded mount

Material

thermoplastic housing Acrylic lns.

Order code / Manufacturer SKU

34927

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18AW3LQ1 on Powermatic Associates is $114.00. Order now.

About the product

Banner Engineering T18AW3LQ1 is a photo-electric sensor from the T18 series, designed in a retro-reflective mode with potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and has an M18 cylindrical threaded/barrel shape. It is pre-equipped with a 4-pin 1/2" micro connector for connectivity and operates within a supply voltage range of 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.). The T18AW3LQ1 offers a threaded mount installation and can operate in ambient air temperatures ranging from -40 to +70°C. It boasts a degree of protection rated at IP67, IP69K, and NEMA 6P. The sensor has a diameter of 40mm and provides one digital output (Solid-state AC output; SPST contact type) with a sensing distance of 2m. It operates with an infrared light color at a wavelength of 950 nm and has a response time of 16ms / 0.016 s. The operating mode is Light-ON.
