T18AW3R W-30 Banner Sensors & Transducers

Name: T18AW3R W-30
Brand: Banner

Part#:T18AW3R W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

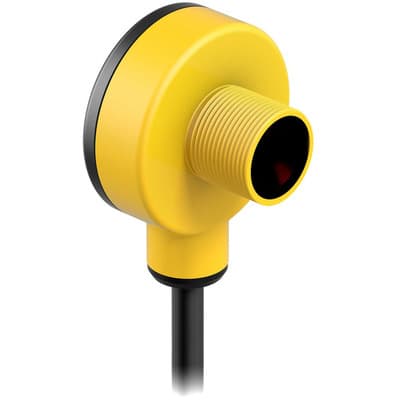

Photo-electric sensor receiver with through-beam system / opposed mode - Banner Engineering (EZ-BEAM series - T18 series) - Part #33928 - 40mm diameter - Sensing range 20m - Infrared (IR) light (950nm) - 1 x digital output (Solid-state AC output; SPST con

Product Details

Main function
Sensor (Photo-electric)
Design
through-beam system / opposed mode
Diameter
40mm
Mounting mode
Threaded mount
Ambient air temperature for operation
-40...+70 °C
Sub-range name
T18 series
Wavelength
950 nm
Connection type
Pre-wired with 30ft / 9m cable terminated with bare end flying leads
Compliant with standard(s)
cULus CSA CE
Primary brand
Banner Engineering
Functions
Photo-electric sensor receiver green LED (power ON) amber LED (output state)
Shape
Cylindrical smooth
Digital outputs
1 x digital output (Solid-state AC output; SPST contact type)
Degree of protection
IP67 IP69K NEMA 6P
Product series / family name
EZ-BEAM series
Supply voltage (AC)
20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
Light Color
Infrared (IR)
Operating mode
Light-ON
Order code / Manufacturer SKU
33928
Sensing distance
20m

Thread size

M18

Response time

(ON) 16ms / 0.016 s(OFF) 8ms / 0.008 s

Equivalent to

T18AW3RW30

Material

thermoplastic housing Polycarbonate lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
