T18AW3D W/30 Banner Proximity Sensors

Name: T18AW3D W/30
Brand: Banner
Price: 145 USD
Availability: BackOrder

Part#:T18AW3D W/30

Alt. Part#:35866

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

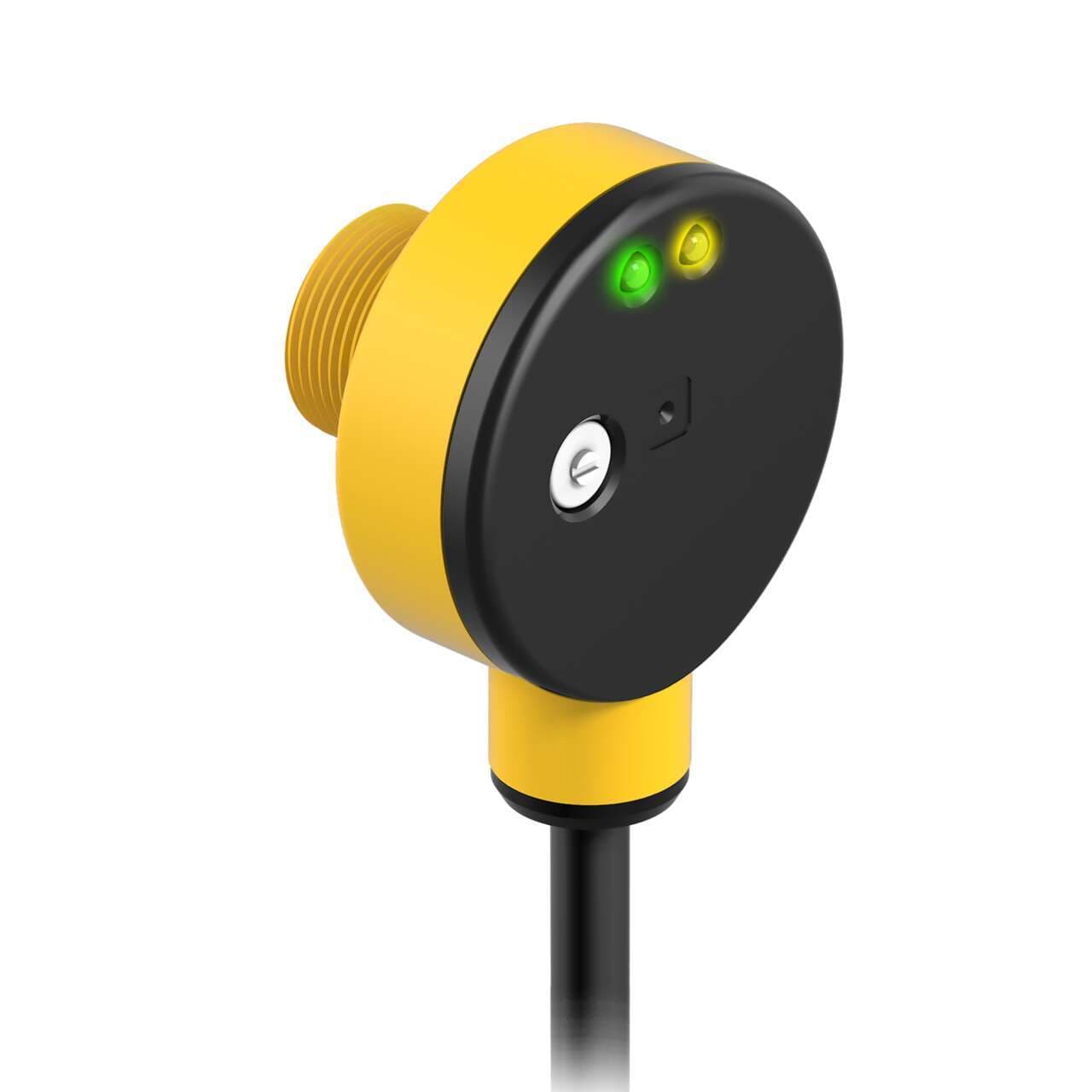

EZ-BEAM T18 Series: Diffuse; Range: 300 mm; Input: 20-250 V ac; Light Operate; 9 m (30 ft) Cable

Product Details

Weight
607.81328 g
Country Of Origin
US
IO Link
No
Indicator
LEDs
Feature: Chemical Resistant
Yes
Feature: Audible
No
DeviceNet
No
Feature: Ecolab Certified
Yes
Feature: Washdown Rated
Yes
Feature: Timing (Hold/Delay)
No
Feature: Hazardous Area
No
Feature: Encapsulated
Yes
Opposed Mode Emitter/Receiver
N/A
Adjustments
Potentiometer
Max Op. Relative Humidity [%]
90% @ 50°C
Barrel Diameter (mm)
18
Lens Material
Acrylic
Number of Pins
3
IP Rating
IP67, IP69
Repeatability (µs)
4000

Delay at Power-up (ms)

100

NEMA Rating

NEMA 6P

Special Feature: Intrinsically Safe

Output response time (ms)

Special Feature: Remote Teach

Max Op. Temp. (°C)

Operation

Light Operate

Special Feature: Water Detection

Quick Disconnect Type

No QD

Min Op. Temp. (°C)

-40

Connection

Cable

Power Supply/Supply Voltage

20-250 V ac

Max Sensing Distance (mm)

300

Primary Housing Material

Thermoplastic

Input/Output

Solid-State AC Switch

Outputs

Solid-State AC Switch

Sensing Mode (Detailed)

Diffuse

Sensing Mode (General)

Proximity

Sensing Beam

Infrared LED

Housing Style

Barrel

Power

Cable Length (m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18AW3D W/30 on Powermatic Associates is $145.00. Order now.

About the product

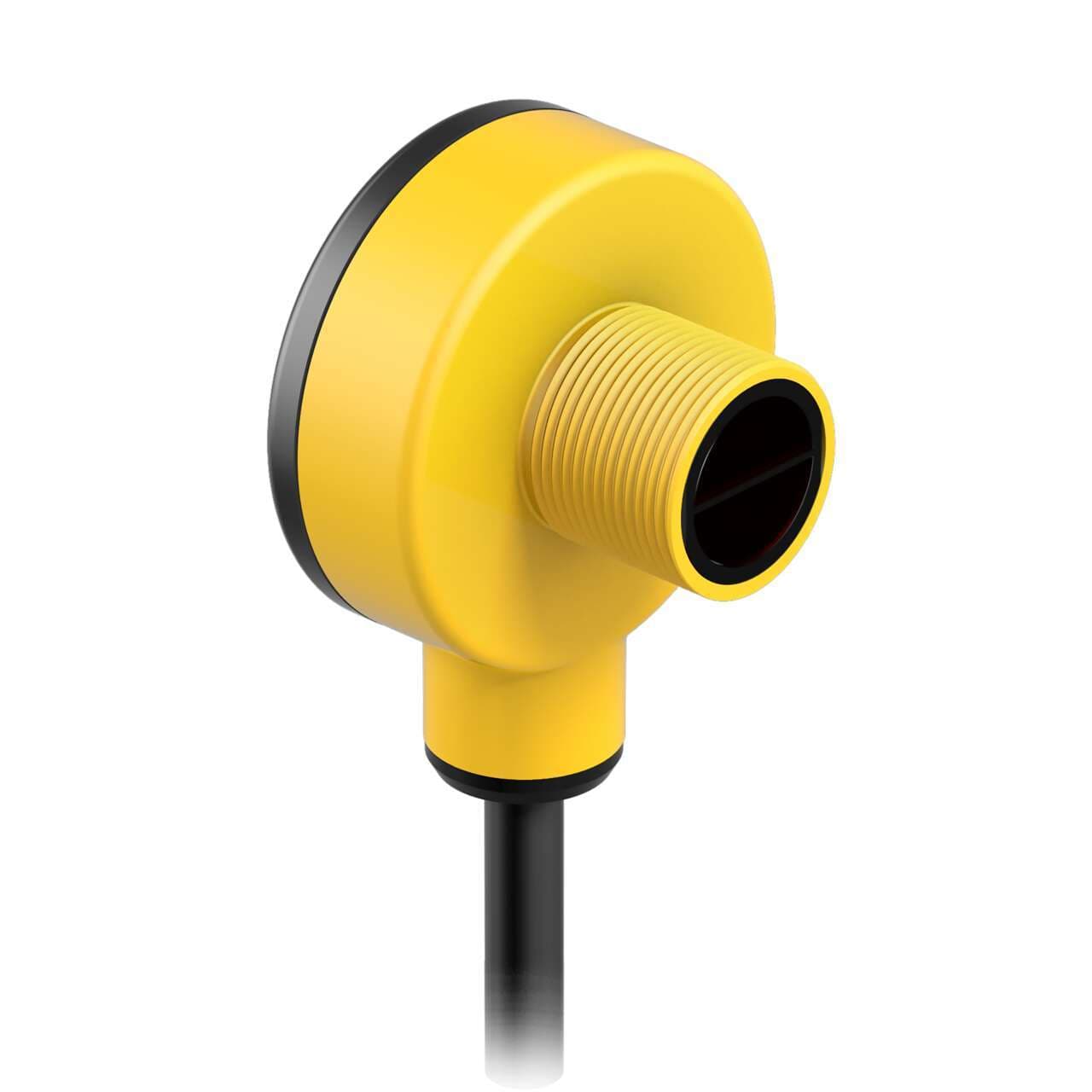

Banner Engineering T18AW3D W/30 is a photo-electric sensor from the T18 series, designed with a diffuse mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and has an M18 cylindrical threaded/barrel shape. It is pre-wired with a 30ft / 9m cable terminated with bare end flying leads for connectivity. The sensor operates within a supply voltage range of 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.) and can be mounted using a threaded mount. It is designed to work within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6P. The T18AW3D W/30 has a diameter of 40mm and features one digital output (Solid-state AC output; SPST contact type) with a sensing distance of 300mm. It operates with an infrared light color at a wavelength of 880 nm, has a response time of 16ms / 0.016 s, and functions in a Light-ON operating mode.
