T18SN6FF50M5V Banner Proximity Sensors

T18SN6FF50M5V on Powermatic Associates
Banner
  • T18SN6FF50M5V
  • T18SN6FF50M5V

Part#:T18SN6FF50M5V

Alt. Part#:43094

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

10 in stock

Apr 12, 2025

Product description

T18SN6FF50 M5 V NPN LO 50 mm FF 5 V DC CABLED IN-HOUSE HYBRID

Product Details

  • Weight
    154.22128 g
  • Country Of Origin
    US
  • Feature: Chemical Resistant
    Yes
  • IO Link
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • DeviceNet
    No
  • Feature: Encapsulated
    Yes
  • Feature: Washdown Rated
    Yes
  • Feature: Ecolab Certified
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    18
  • Indicator
    LEDs
  • IP Rating
    IP67, IP69
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • Repeatability (µs)
    750
  • NEMA Rating
    NEMA 6P
  • Number of Pins
    4
  • Delay at Power-up (ms)
    100
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Water Detection
    No
  • Operation
    Light Operate
  • Output response time (ms)
    3
  • Special Feature: Remote Teach
    No
  • Max Op. Temp. (°C)
    70
  • Power Supply/Supply Voltage
    5 V dc
  • Quick Disconnect Type
    No QD
  • Min Op. Temp. (°C)
    -40
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Connection
    Cable
  • Power
    DC
  • Max Sensing Distance (mm)
    50
  • Outputs
    NPN
  • Primary Housing Material
    Thermoplastic
  • Sensing Beam
    Infrared LED
  • Input/Output
    Discrete
  • Sensing Mode (General)
    Proximity
  • Housing Style
    Barrel
  • Cable Length (m)
    2
  • Primary brand
    Banner Engineering
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Response time
    3ms / 0.003 s
  • Material
    thermoplastic housing Acrylic lns.
  • Main function
    Sensor (Photo-electric)
  • Sensing distance
    50mm
  • Mounting mode
    Threaded mount
  • Ambient air temperature for operation
    -40...+70 °C
  • Product series / family name
    EZ-BEAM series
  • Design
    background suppression system
  • Wavelength
    880 nm
  • Operating mode
    Light-ON
  • Sub-range name
    T18 series
  • Light Color
    Infrared (IR)
  • Degree of protection
    IP67 IP69K NEMA 6P
  • Compliant with standard(s)
    cULus CSA CE
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
  • Thread size
    M18
  • Order code / Manufacturer SKU
    43094
  • Supply voltage (DC)
    5Vdc
  • Shape
    Cylindrical smooth
  • Digital outputs
    1 x digital output (NPN transistor)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18SN6FF50M5V on Powermatic Associates is $170.00. Order now.

About the product

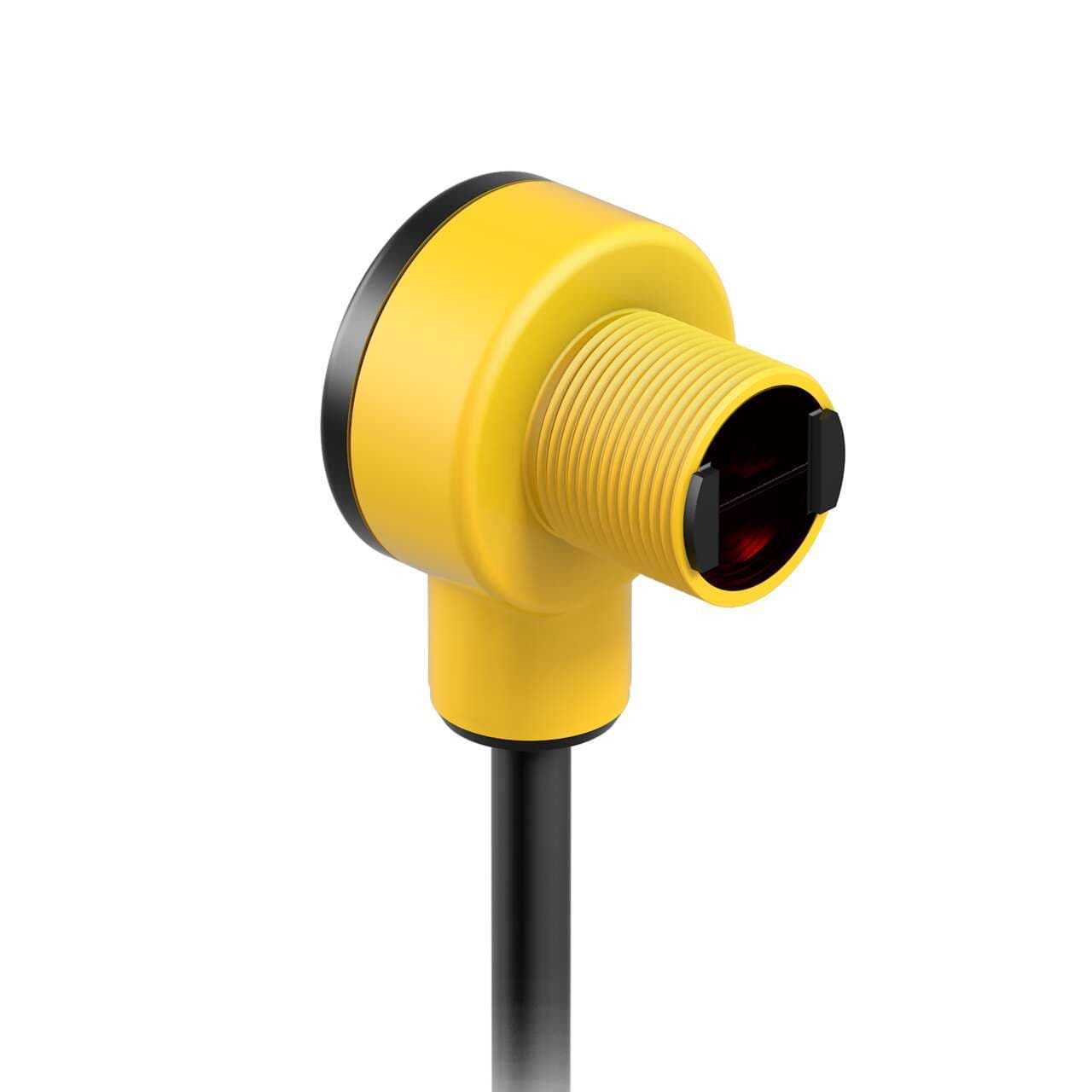

Banner Engineering T18SN6FF50M5V is a fixed-field photo-electric sensor from the T18 series, designed with a background suppression system. It features a thermoplastic housing and an acrylic lens. This sensor is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for connectivity. It operates on a 5Vdc supply voltage and is mounted using a threaded mount. The T18SN6FF50M5V can operate within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6P, making it suitable for harsh environments. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (NPN transistor). The sensing distance is 50mm, with an infrared (IR) light color, a response time of 3ms / 0.003 s, and operates in Light-ON mode. The wavelength of the IR light is 880 nm, and it has an M18 thread size.
