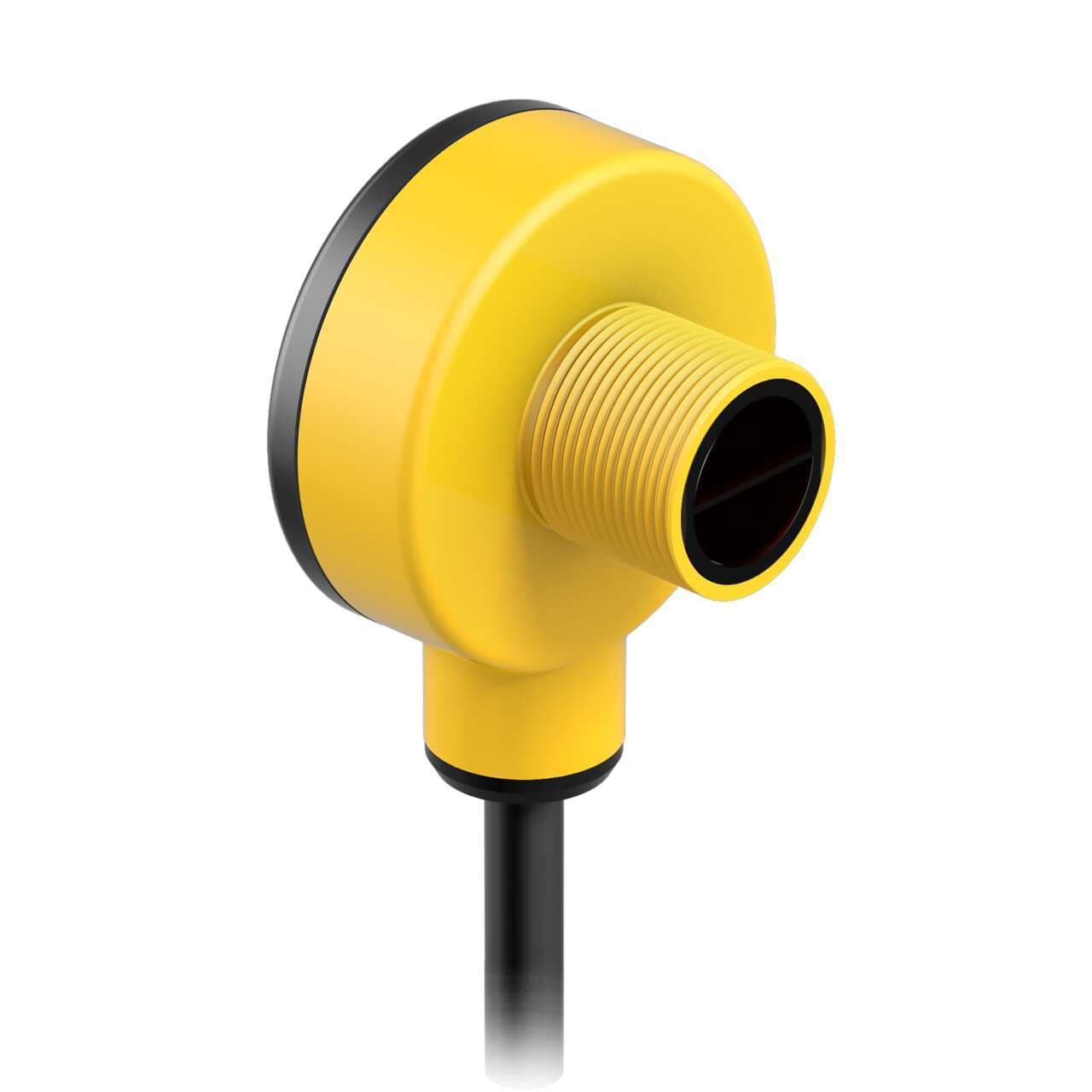

T18AW3D Banner Proximity Sensors

Name: T18AW3D
Brand: Banner

Banner T18AW3D EZ-BEAM T18 Series: Diffuse; Range: 300 mm; Input: 20-250 V ac; Light Operate; 2 m (6.5 ft) Cable

Part#:T18AW3D

Manufacturer:Banner

Alt. Part#:34922

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM T18 Series: Diffuse; Range: 300 mm; Input: 20-250 V ac; Light Operate; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the T18AW3D Banner price in the box on the right side or send a quick quote.

Product Details

Weight
154.22128 g
Country Of Origin
US
IO Link
No
Feature: Audible
No
DeviceNet
No
Feature: Chemical Resistant
Yes
Feature: Encapsulated
Yes
Feature: Hazardous Area
No
Feature: Ecolab Certified
Yes
Feature: Timing (Hold/Delay)
No
Feature: Washdown Rated
Yes
Barrel Diameter (mm)
18
Opposed Mode Emitter/Receiver
N/A
Indicator
LEDs
Adjustments
Potentiometer
Max Op. Relative Humidity [%]
90% @ 50°C
Lens Material
Acrylic
NEMA Rating
NEMA 6P
IP Rating
IP67, IP69
Number of Pins
3

Repeatability (µs)

4000

Delay at Power-up (ms)

100

Special Feature: Water Detection

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Output response time (ms)

Max Op. Temp. (°C)

Operation

Light Operate

Min Op. Temp. (°C)

-40

Quick Disconnect Type

No QD

Connection

Cable

Power Supply/Supply Voltage

20-250 V ac

Outputs

Solid-State AC Switch

Primary Housing Material

Thermoplastic

Cable Length (m)

Sensing Mode (General)

Proximity

Max Sensing Distance (mm)

300

Input/Output

Solid-State AC Switch

Housing Style

Barrel

Sensing Mode (Detailed)

Diffuse

Power

Sensing Beam

Infrared LED

Product series / family name

EZ-BEAM series

Design

diffuse mode

Sub-range name

T18 series

Shape

Cylindrical smooth

Digital outputs

1 x digital output (Solid-state AC output; SPST contact type)

Wavelength

880 nm

Thread size

M18

Primary brand

Banner Engineering

Supply voltage (AC)

20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)

Diameter

40mm

Response time

16ms / 0.016 s

Order code / Manufacturer SKU

34922

Main function

Sensor (Photo-electric)

Functions

Photo-electric sensor green LED (power ON) amber LED (output state) potentiometer adjustment

Light Color

Infrared (IR)

Mounting mode

Threaded mount

Ambient air temperature for operation

-40...+70 °C

Sensing distance

300mm

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Operating mode

Light-ON

Degree of protection

IP67 IP69K NEMA 6P

Material

thermoplastic housing Acrylic lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

T18AW3D Description

Banner Engineering T18AW3D is a photo-electric sensor from the T18 series, featuring a diffuse mode with potentiometer adjustment. This sensor is housed in thermoplastic with an acrylic lens and has an M18 cylindrical threaded/barrel shape. It is designed for threaded mount installation and comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. The T18AW3D operates on a supply voltage of 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.) and can function within an ambient air temperature range of -40 to +70°C. It offers a degree of protection rated at IP67, IP69K, and NEMA 6P. The sensor has a diameter of 40mm and features one digital output (Solid-state AC output; SPST contact type) with a sensing distance of 300mm. It operates in Light-ON mode, has a response time of 16ms / 0.016 s, and utilizes infrared light with a wavelength of 880 nm.
