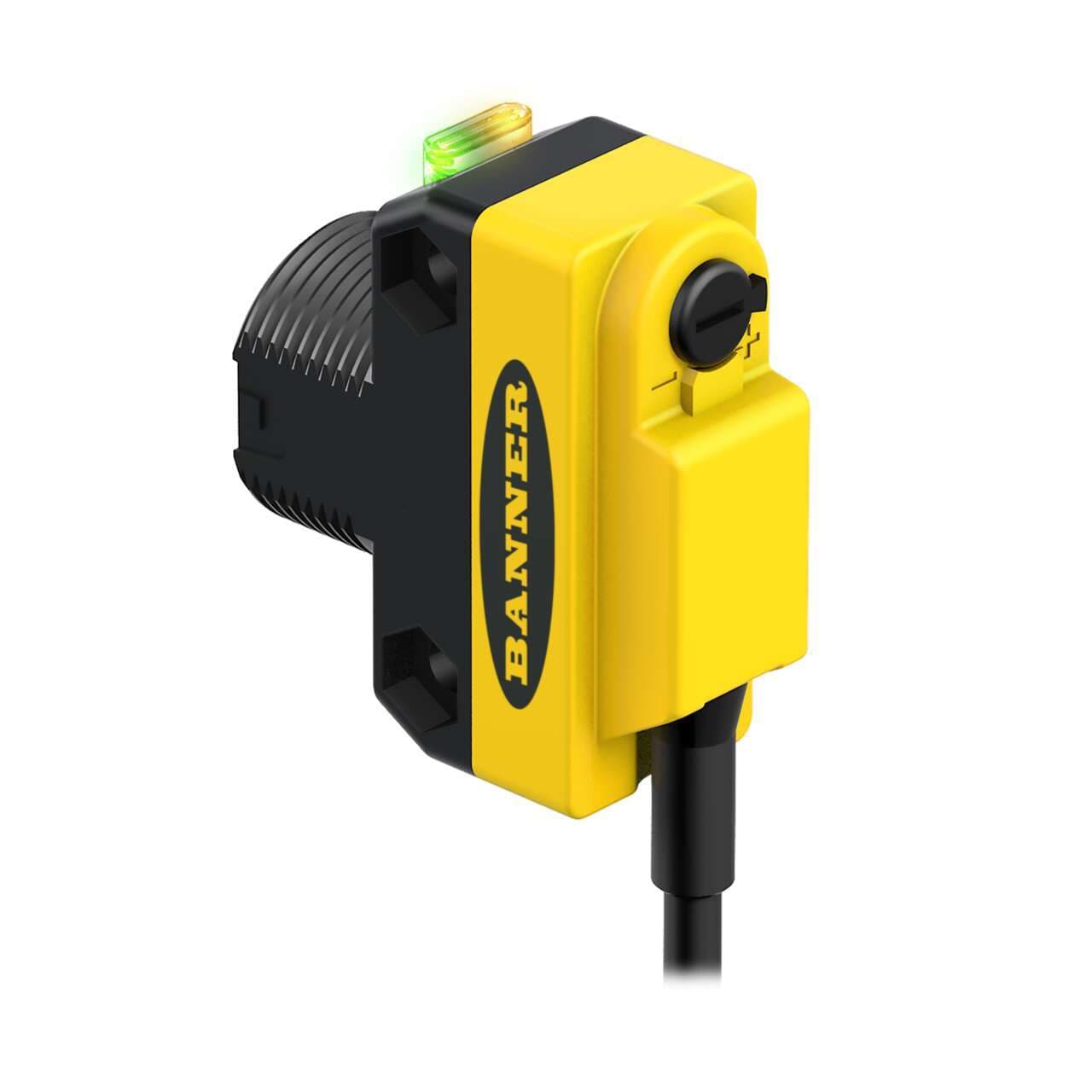

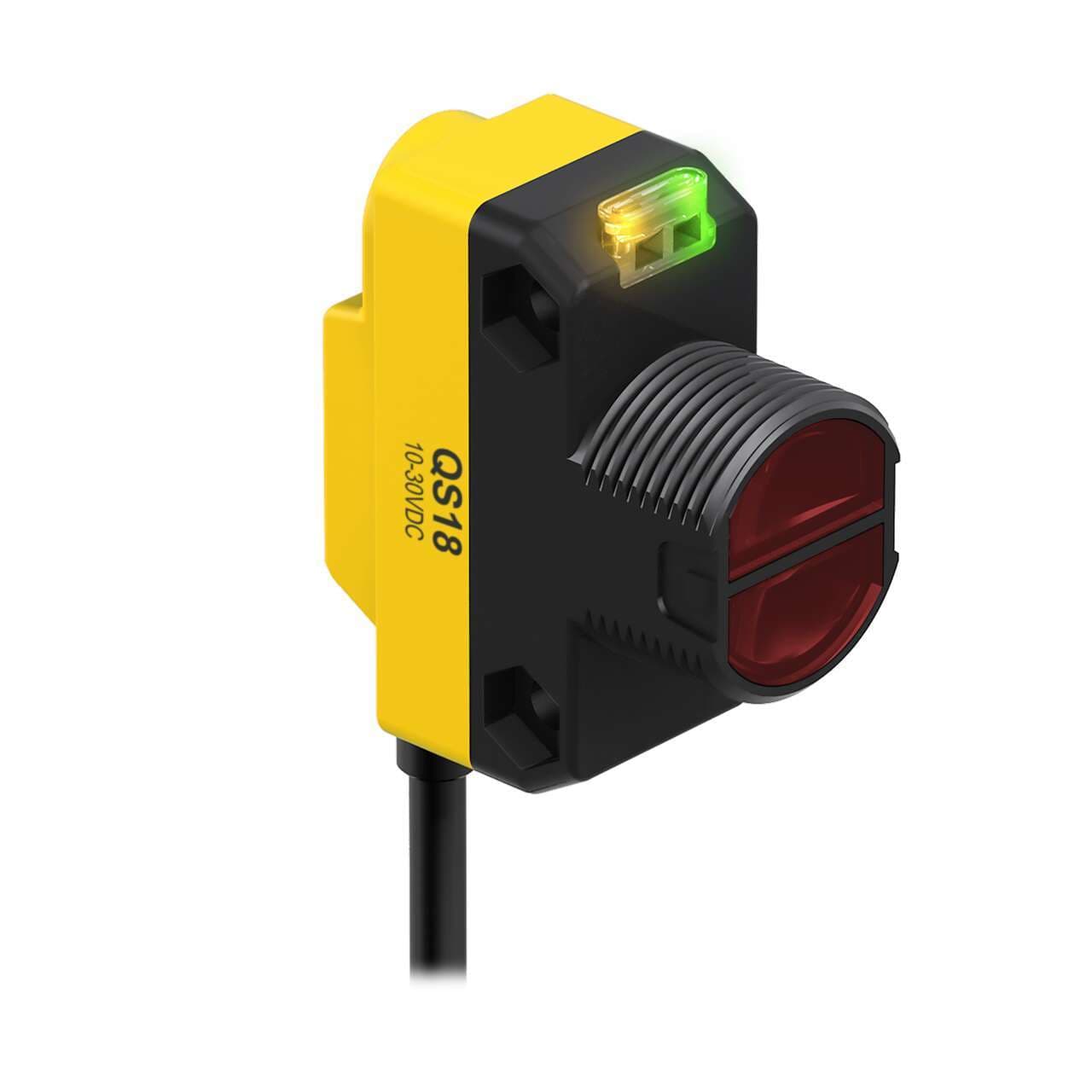

QS18VP6DL Banner Proximity Sensors

Name: QS18VP6DL
Brand: Banner
Price: 90 USD
Availability: InStock

Part#:QS18VP6DL

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:800767

Product Lifecycle:Active

In-stock parts: 11

Jan 25, 2025

WORLD-BEAM QS18 Series: Diffuse; Range: 600 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS18VP6DL Banner price in the box on the right side or send a quick quote.

Product Details

Weight
55.0660688 g
Country Of Origin
MX
IO Link
No
DeviceNet
No
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Encapsulated
No
Feature: Quick Disconnect
No
Feature: Timing (Hold/Delay)
No
Indicator
LEDs
Barrel Diameter (mm)
18
Lens Material
Acrylic
Repeatability (µs)
90
Adjustments
Potentiometer
Max Op. Relative Humidity [%]
95% @ 50°C
Number of Pins
4
NEMA Rating
NEMA 6
IP Rating
IP67
Delay at Power-up (ms)
100

Sensing Beam Wavelength

940

Special Feature: Water Detection

Special Feature: Remote Teach

Output response time (ms)

0.85

Min Op. Temp. (°C)

-20

Max Op. Temp. (°C)

Special Feature: Intrinsically Safe

Operation

Light/Dark Operate

Quick Disconnect Type

No QD

Connection

Cable

Outputs

PNP

Power Supply/Supply Voltage

10-30 V dc

Sensing Mode (Detailed)

Diffuse

Power

Sensing Mode (General)

Proximity

Primary Housing Material

ABS

Input/Output

Discrete

Housing Style

Rectangular w/M18 Mount

Max Sensing Distance (mm)

600

Cable Length (m)

Sensing Beam

Infrared LED

Primary brand

Banner Engineering

Functions

Photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment

Mounting mode

Threaded mount

Compliant with standard(s)

cURus CE

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Light Color

Infrared (IR)

Order code / Manufacturer SKU

800767

Degree of protection

IP67 NEMA 6

Main function

Sensor (Photo-electric)

Shape

Rectangular

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Sub-range name

QS18 series

Wavelength

940 nm

Thread size

M18

Digital outputs

1 x digital output (PNP transistor)

Product series / family name

WORLD-BEAM series

Design

diffuse mode

Operating mode

Light-ON Dark-ON

Ambient air temperature for operation

-20...+70 °C

Sensing distance

600mm

Response time

0.85ms / 0.00085 s

Material

thermoplastic housing Acrylic lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QS18VP6DL Description

Banner Engineering QS18VP6DL is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. This sensor is equipped with an M18 threaded mount for easy installation and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. It operates within an ambient air temperature range of -20 to +70°C and offers a sensing distance of up to 600mm. The QS18VP6DL utilizes infrared light with a wavelength of 940 nm for detection and provides both Light-ON and Dark-ON operating modes. It is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for convenient connection. This model is part of the QS18 series and offers a high degree of protection with an IP67 NEMA 6 rating, making it suitable for challenging environments. It supports a supply voltage range of 10Vdc to 30Vdc (with 12Vdc / 24Vdc nominal) and includes 1 x digital output (PNP transistor; complementary NO/NC) with a rapid response time of 0.85ms / 0.00085 s.
