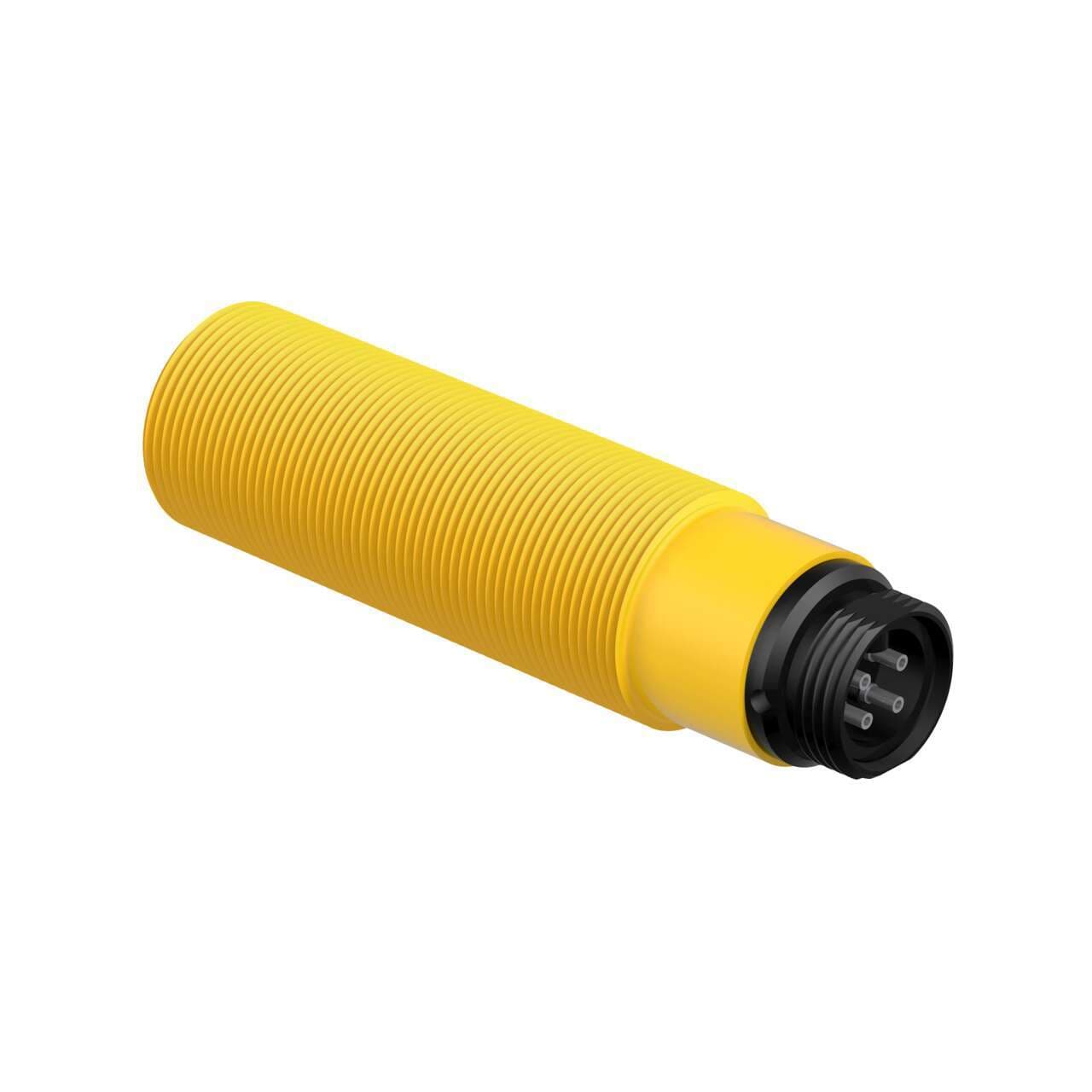

SMI30AN6RBQ Banner Proximity Sensors

SMI30AN6RBQ on Powermatic Associates
Banner
  • SMI30AN6RBQ
  • SMI30AN6RBQ

Part#:SMI30AN6RBQ

Alt. Part#:35272

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

SMI30 Series: Receiver - Frequency B; Range: 140 m; Input: 10-30 V dc; Output: Light Operate - I.S. Interface; 3-pin Mini Integral QD

Product Details

  • Weight
    163.29312 g
  • Country Of Origin
    MX
  • IO Link
    No
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • DeviceNet
    No
  • Feature: Hazardous Area
    Yes
  • Opposed Mode Emitter/Receiver
    Receiver
  • Feature: Timing (Hold/Delay)
    No
  • Indicator
    LEDs
  • Feature: Encapsulated
    Yes
  • Adjustments
    N/A
  • Barrel Diameter (mm)
    30
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Lens Material
    Acrylic
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP67
  • Number of Pins
    3
  • Delay at Power-up (ms)
    N/A
  • Special Feature: Water Detection
    No
  • Repeatability (µs)
    1600
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    Yes
  • Output response time (ms)
    10
  • Min Op. Temp. (°C)
    -40
  • Operation
    Light Operate
  • Power Supply/Supply Voltage
    10-30 V dc
  • Quick Disconnect Type
    7/8 in. (Mini)
  • Max Op. Temp. (°C)
    70
  • Connection
    Integral QD
  • Input/Output
    Discrete
  • Outputs
    NPN
  • Sensing Mode (Detailed)
    Receiver
  • Housing Style
    Barrel
  • Primary Housing Material
    Thermoplastic
  • Max Sensing Distance (mm)
    140000
  • Sensing Mode (General)
    Opposed
  • Power
    DC
  • Sensing Beam
    Infrared LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMI30AN6RBQ on Powermatic Associates is $213.00. Order now.


About the product

Banner Engineering SMI30AN6RBQ is a photo-electric sensor from the SMI30 series designed with a through-beam system or opposed mode "B" modulation frequency. This intrinsically-safe photo-electric sensor, serving as the receiver component, is encased in a thermoplastic housing with an acrylic lens. It comes pre-equipped with a 3-pin 7/8" mini connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6P. The SMI30AN6RBQ features a cylindrical threaded/barrel shape with an M30 thread size. It has one digital output utilizing an NPN transistor and is capable of sensing distances up to 140 meters. The sensor operates with an infrared light color, has a response time of 10ms or 0.01 seconds, operates in Light-ON mode, and utilizes a wavelength of 880 nm.
