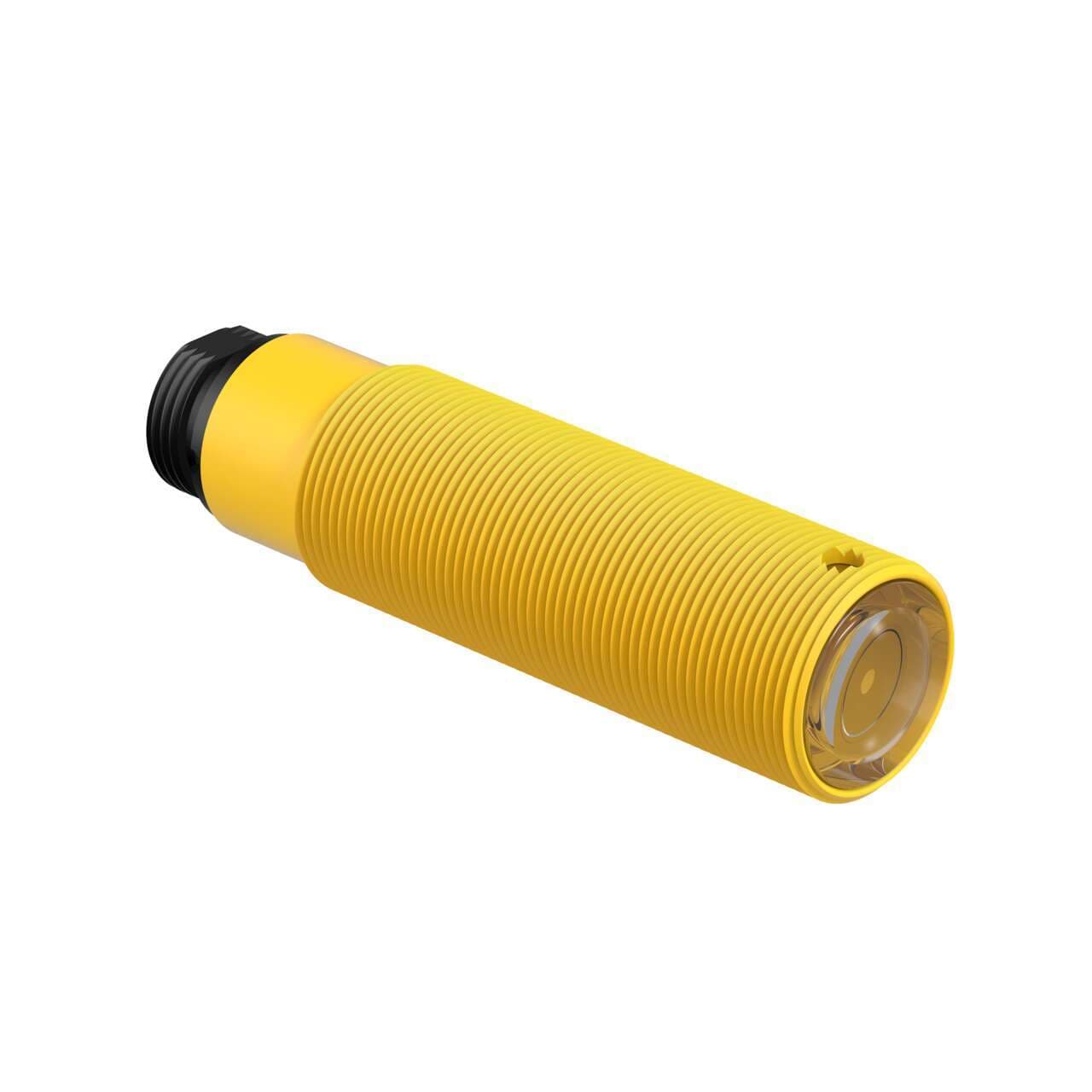

SMI30RN6RBQ

Banner

Product Lifecycle: Active

Banner Engineering SMI30RN6RBQ is a sensor from the SMI30 series designed as a through-beam system or opposed mode "B" modulation frequency photo-electric sensor. This intrinsically-safe photo-electric sensor, functioning as the receiver alone, is housed in thermoplastic with an acrylic lens. It comes pre-equipped with a 3-pin 7/8" mini connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6P. The SMI30RN6RBQ features a cylindrical threaded/barrel shape with an M30 thread size. It has one digital output utilizing an NPN transistor and offers a sensing distance of up to 140 meters. The sensor operates with an infrared light color, has a response time of 10ms or 0.01 seconds, operates in Dark-ON mode, and utilizes a wavelength of 880 nm.

SMI30RN6RBQ

Banner Engineering SMI30RN6RBQ is a sensor from the SMI30 series designed as a through-beam system or opposed mode "B" modulation frequency photo-electric sensor. This intrinsically-safe photo-electric sensor, functioning as the receiver alone, is housed in thermoplastic with an acrylic lens. It comes pre-equipped with a 3-pin 7/8" mini connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6P. The SMI30RN6RBQ features a cylindrical threaded/barrel shape with an M30 thread size. It has one digital output utilizing an NPN transistor and offers a sensing distance of up to 140 meters. The sensor operates with an infrared light color, has a response time of 10ms or 0.01 seconds, operates in Dark-ON mode, and utilizes a wavelength of 880 nm.

SMI30 Intrinsically Safe Series Sensor.pdf

SMA/SM2/SMI/SM30 QD.pdf

SMA/SM2/SMI/SM30 QD.stp

Product details

SMI30 Intrinsically Safe Series Sensor.pdf

SMA/SM2/SMI/SM30 QD.pdf

SMA/SM2/SMI/SM30 QD.stp

DeviceNetNo
Feature: AudibleNo
Feature: Chemical ResistantNo
Feature: EncapsulatedYes
Opposed Mode Emitter/ReceiverReceiver
Feature: Timing (Hold/Delay)No

IO LinkNo

IndicatorLEDs

Feature: Hazardous AreaYes

Barrel Diameter (mm)30

AdjustmentsN/A

Lens MaterialAcrylic

Max Op. Relative Humidity [%]90% @ 50°C

NEMA RatingNEMA 6P

IP RatingIP67

Number of Pins3

Repeatability (µs)1600

Delay at Power-up (ms)N/A

Special Feature: Water DetectionNo

Output response time (ms)10

Max Op. Temp. (°C)70

Special Feature: Remote TeachNo

OperationDark Operate

Special Feature: Intrinsically SafeYes

Min Op. Temp. (°C)-40

Quick Disconnect Type7/8 in. (Mini)

Power Supply/Supply Voltage10-30 V dc

ConnectionIntegral QD

Max Sensing Distance (mm)140000

OutputsNPN

Sensing Mode (Detailed)Receiver

Sensing Mode (General)Opposed

Sensing BeamInfrared LED

Input/OutputDiscrete

PowerDC

Primary Housing MaterialThermoplastic

Housing StyleBarrel
