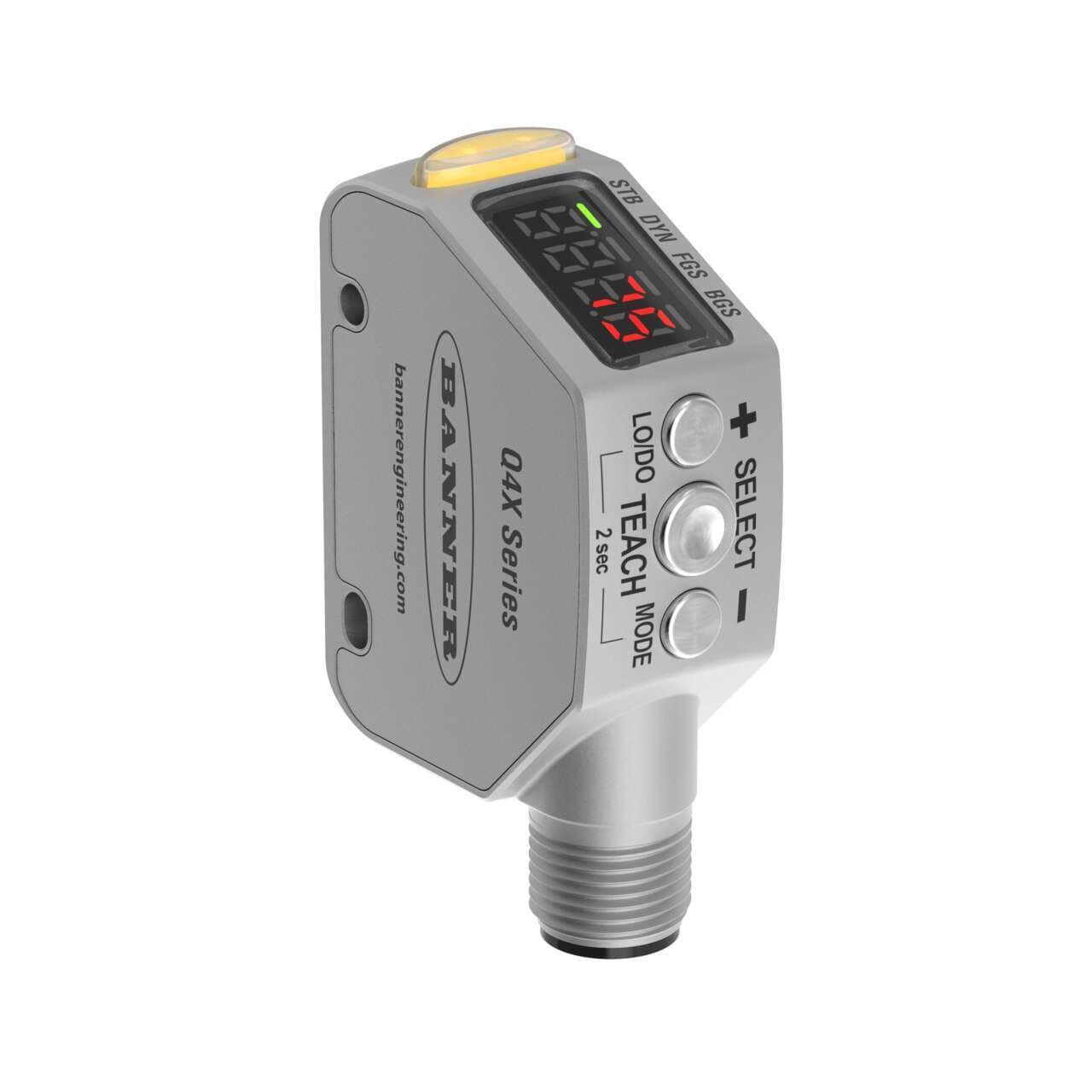

Q4XFULAF610-Q8 Banner Proximity Sensors
Part#:Q4XFULAF610-Q8
Alt. Part#:809947
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q4X Series: Laser Adjustable Field; Range: 610 mm; Input 12-30 V dc; Output: Analog: 0-10 V; 5-pin M12 Integral QD; Flush Mount Housing
Product Details
- Weight 142.88148 g
- Country Of Origin US
- Profibus No
- 1-wire Serial Interface No
- Wireless No
- SSI No
- RS-485 No
- RS-422 No
- RS-232 No
- IO Link No
- Feature: Chemical Resistant Yes
- Feature: Timing (Hold/Delay) No
- Feature: Washdown Rated Yes
- Feature: Remote Teach Yes
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Power/Current Consumption (exclusive of load) < 700mW
- Max Ambient Light (Lux) 5000
- Laser Control Yes
- Minimum Window Size (mm) 2
- Analog Linearity (mm) +/- 0.75 mm from 25 to 50 mm, 9.0 mm at 300 mm, 28 mm at 600 mm
- Spot Size (@ Reference Distance) 1.9 mm x 1.0 mm @ 610 mm
- Window Material Acrylic
- Minimum Response Time (ms) 0.5
- Warm-up Time (minutes) 10
- Max Op. Relative Humidity Non-Condensing (%) 95 at 55°C
- Min Operating Temperature (°C) -10
- Storage Temperature (°C) -25 to 75
- Max Operating Temperature (°C) 50
- IP Rating IP67; IP68; IP69
- Output Protection Protected against continuous overload and short circuit
- Analog Voltage Output Rating 2.5 kΩ min. load impedance
- Mechanical Shock MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
- Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Temperature Effect (mm/°C) 1 mm/°C
- Number of Pins 5
- Adjustments Push Button; Remote Teach
- Sensing Beam Wavelength (nm) 655
- Delay at Power-up (ms) 750
- Power Supply 12-30 V dc
- Max Sensing Distance (mm) 610
- Minimum Sensing Distance (mm) 35
- Analog Resolution/Discrete Repeatability 25 mm to 100 mm: +/- 0.5 mm, 100 mm to 600 mm: +/- 0.5%
- Quick Disconnect Type M12 (Euro)
- Analog Output Configuration 0-10 V dc
- Indicator Display; LED(s)
- Connection Integral QD
- Input/Output Analog
- Laser Classification Class 1
- PC Configurable No
- Sensing Beam Visible Red Laser
- Max Measurement Range >500 mm - <=1000 mm
- Primary Housing Material Stainless Steel
- Sensing Mode (General) Proximity
- Housing Style Rectangular
- Sensing Mode (Detailed) Background/Foreground Suppression
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q4XFULAF610-Q8 on Powermatic Associates is $648.00. Order now.
About the product
Banner Engineering Q4XFULAF610-Q8 is a Class 1 laser adjustable-field photo-electric sensor/transmitter designed for precise sensing tasks. It features a flush face housing suitable for mounting in various applications and operates within an ambient air temperature range of -10 to +50 °C. This sensor is equipped with a background/foreground suppression system that can be adjusted via TEACH mode, ensuring accurate detection by ignoring irrelevant background objects. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy installation. The Q4X series sensor boasts a high degree of protection with ratings of IP67, IP68, and IP69K, making it resistant to dust, water, and high-pressure water jets. Its chemical-resistant design enhances durability in harsh environments. The sensor operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and is housed in stainless steel with an acrylic LED window. It offers a sensing distance range of 35 to 610mm and utilizes a visible class 1 red laser with a wavelength of 655 nm for detection. Additionally, it includes protection functions against overload and short-circuit conditions and provides 1 x analog output (0-10Vdc) for versatile connectivity.
