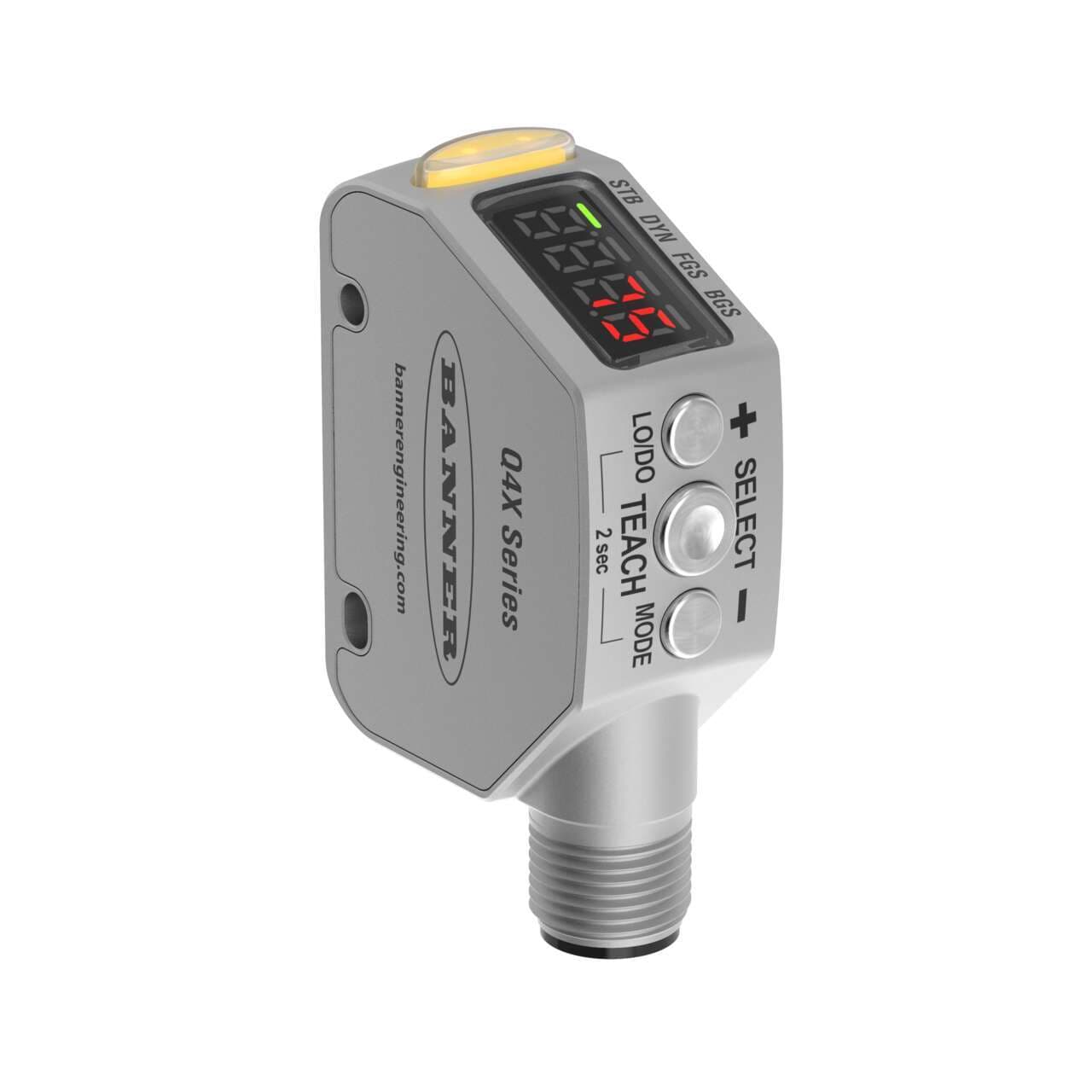

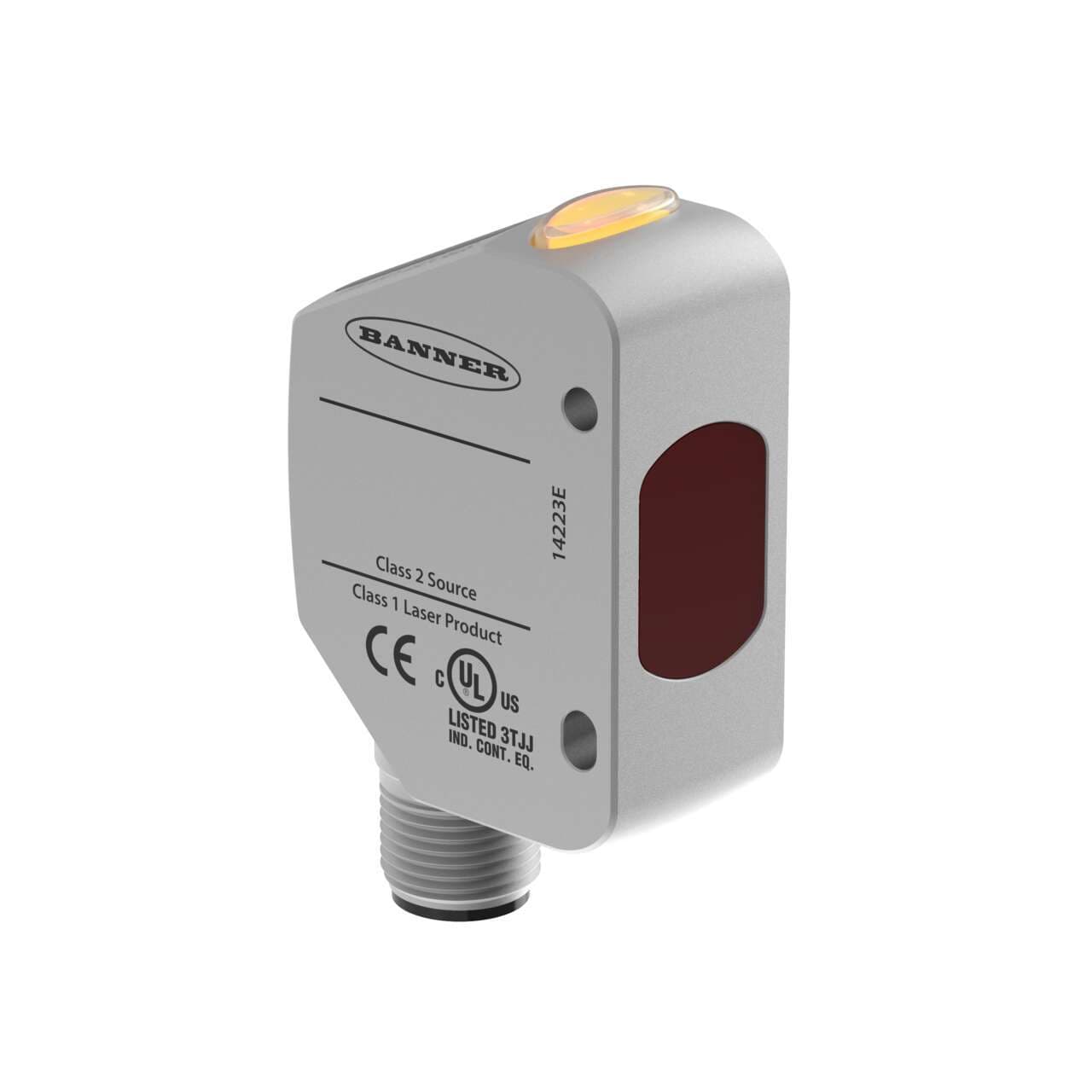

Q4XFNLAF310-Q8 Banner Proximity Sensors

Product Details

• Weight
  136.0776 g
• Country Of Origin
  US
• Sub-range name
  Q4X
• Primary brand
  Banner Engineering
• Functions
  Class 1 Laser adjustable-field photo-electric sensor TEACH mode
• Sensing distance
  35...310mm
• Main function
  Sensor (Photo-electric)
• Display
  LED 4 digits display
• Product series / family name
  Q series
• Design
  background / foreground suppression system
• Shape
  Rectangular
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Wavelength
  655 nm
• Thread size
  M18
• Ambient air temperature for operation
  -10...+50 °C
• Order code / Manufacturer SKU
  97632
• Light Color
  Visible class 1 red Laser
• Mounting mode
  Flush face housing
• Protection functions
  Overload Short-circuit
• Connection type
  Pre-equipped with 4-pin Euro-style M12 connector
Digital outputs
1 x digital output (NPN transistor)
Degree of protection
IP67 IP68 IP69K
Material
Stainless steel housing Acrylic LED window
Chemical resistance
chemical-resistant
Compliant with standard(s)
CE
Equivalent to
Q4XFNLAF310Q8
Sensing Mode (Detailed)
Background/Foreground Suppression
Analog Resolution/Discrete Repeatability
35 mm to 60 mm: +/-0.5; 60 mm to 310 mm: +/- 1% of range
Mechanical Shock
MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Max Op. Relative Humidity Non-Condensing (%)
95 at 55°C
Alarm Output (mA)
100
PC Configurable
No
Indicator
Display; LED(s)
Sensing Beam Wavelength (nm)
655
Output Protection
Protected against continuous overload and short circuit
Warm-up Time (minutes)
10
Feature: Clear Object Detection
Yes
Sensing Mode (General)
Proximity
Laser Classification
Class 1
Power Supply
10-30 V dc
Output Saturation Voltage NPN Outputs
<1.0 V @ 100 mA
Minimum Response Time (ms)
1.5
Feature: Remote Teach
Yes
RS-422
No
Device Type
Sensor
Max Sensing Distance (mm)
310
Discrete (Switched) Outputs
1 NPN
Window Material
Acrylic
Max Off-state Leakage Current (µA)
5 @ 30 V dc
PROFINET
No
Primary Housing Material
Stainless Steel
Delay at Power-up (ms)
750
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Max Operating Temperature (°C)
50
Laser Control
Yes
Power
DC
Connection
Integral QD
Adjustments
Push Button; Remote Teach
Storage Temperature (°C)
-25 to 75
Discrete Output Hysteresis (mm)
Automatically adjusted
Feature: Washdown Rated
Yes
Max Measurement Range
>100 mm - <=500 mm
Input/Output
Discrete
Minimum Sensing Distance (mm)
35
Max Discrete (Switched) Output (mA)
100
Spot Size (@ Reference Distance)
2.0 mm x 0.8 mm @ 300 mm
Power/Current Consumption (exclusive of load)
< 675 mW
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
RS-232
No
Sensing Beam
Visible Red Laser
Quick Disconnect Type
M12 (Euro)
Temperature Effect (mm/°C)
+/- 0.05 mm/°C from 25 to 125 mm, +/- 0.35 mm/°C at 300 mm
Min Operating Temperature (°C)
-10
Max Ambient Light (Lux)
5000
Common Ethernet Protocol
No
SSI
No
Housing Style
Rectangular
Number of Pins
4
IP Rating
IP67; IP68; IP69
Minimum Window Size (mm)
0.4
Feature: Timing (Hold/Delay)
Yes
1-wire Serial Interface
No
IO Link
No
RS-485
No
Feature: Chemical Resistant
Yes
Profibus
No
Feature: Ecolab Certified
Yes
Wireless
No
