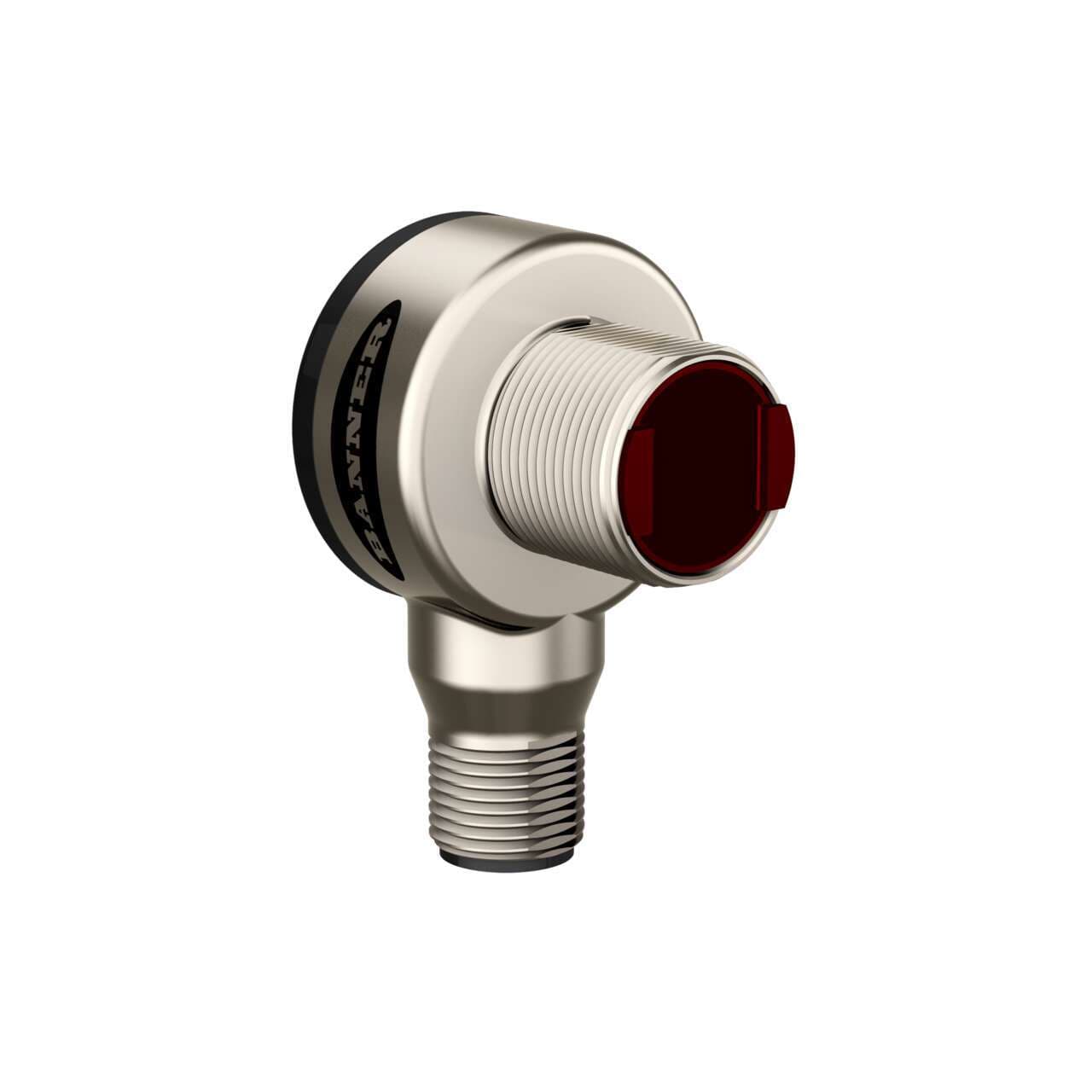

TM18VN6DVQ8 Banner Proximity Sensors


Part#:TM18VN6DVQ8
Alt. Part#:18036
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
TM18 VN6DVQ8 EZ BEAM TM18: Diffuse (Red); Range: 500 mm; Input: 10-30 V dc; Outputs: NPN Complementary; 4-pin M12 Integral QD
Product Details
- Weight 90.7184 g
- Country Of Origin US
- IO Link No
- DeviceNet No
- Feature: Chemical Resistant No
- Feature: Audible No
- Feature: Hazardous Area No
- Feature: Encapsulated Yes
- Feature: Timing (Hold/Delay) No
- Feature: Washdown Rated Yes
- Opposed Mode Emitter/Receiver N/A
- Indicator LEDs
- Barrel Diameter (mm) 18
- Adjustments N/A
- Lens Material Acrylic
- Max Op. Relative Humidity [%] 90% @ 50°C
- IP Rating IP67, IP69
- NEMA Rating NEMA 6
- Special Feature: Remote Teach No
- Number of Pins 4
- Repeatability (µs) 185
- Special Feature: Water Detection No
- Delay at Power-up (ms) 100
- Special Feature: Intrinsically Safe No
- Max Op. Temp. (°C) 70
- Output response time (ms) 3 ON/1.5 OFF
- Quick Disconnect Type M12 (Euro)
- Operation Light/Dark Operate
- Connection Integral QD
- Min Op. Temp. (°C) -40
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Visible Red LED
- Housing Style Barrel
- Outputs NPN
- Max Sensing Distance (mm) 500
- Input/Output Discrete
- Primary Housing Material Zinc Die-Cast with Nickel-Plating
- Sensing Mode (Detailed) Diffuse
- Sensing Mode (General) Proximity
- Power DC
- Degree of protection IP69K NEMA 6
- Sub-range name TM18 series
- Response time 3ms / 0.003 s
- Operating mode Light-ON Dark-ON
- Order code / Manufacturer SKU 18036
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Compliant with standard(s) cULus CE
- Sensing distance 500mm
- Wavelength 660 nm
- Digital outputs 1 x digital output (NPN transistor)
- Ambient air temperature for operation -40...+70 °C
- Design diffuse mode heavy-duty
- Shape Cylindrical threaded/barrel
- Light Color Visible red
- Material Nickel-plate die-cast Zinc housing Acrylic lns.
- Main function Sensor (Photo-electric)
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Functions Photo-electric sensor green LED (power ON) yellow LED (output state)
- Product series / family name EZ-BEAM series
- Thread size M18
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TM18VN6DVQ8 on Powermatic Associates is $113.00. Order now.
About the product
Banner Engineering TM18VN6DVQ8 is a photo-electric sensor from the TM18 series, designed in a diffuse mode heavy-duty format. This sensor features a nickel-plated die-cast zinc housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. The TM18VN6DVQ8 offers a degree of protection rated at IP67, IP69K, and NEMA 6, ensuring durability in various environmental conditions. Its M18 cylindrical threaded/barrel shape facilitates easy installation. The sensor provides one digital output via an NPN transistor and has a sensing distance of up to 500mm. It emits visible red light with a wavelength of 660 nm and features a quick response time of 3ms. Additionally, it supports both Light-ON and Dark-ON operating modes for versatile application.
