TM18VP6DVQ8 Banner Proximity Sensors

TM18VP6DVQ8 on Powermatic Associates
Banner

Part#:TM18VP6DVQ8

Alt. Part#:18027

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

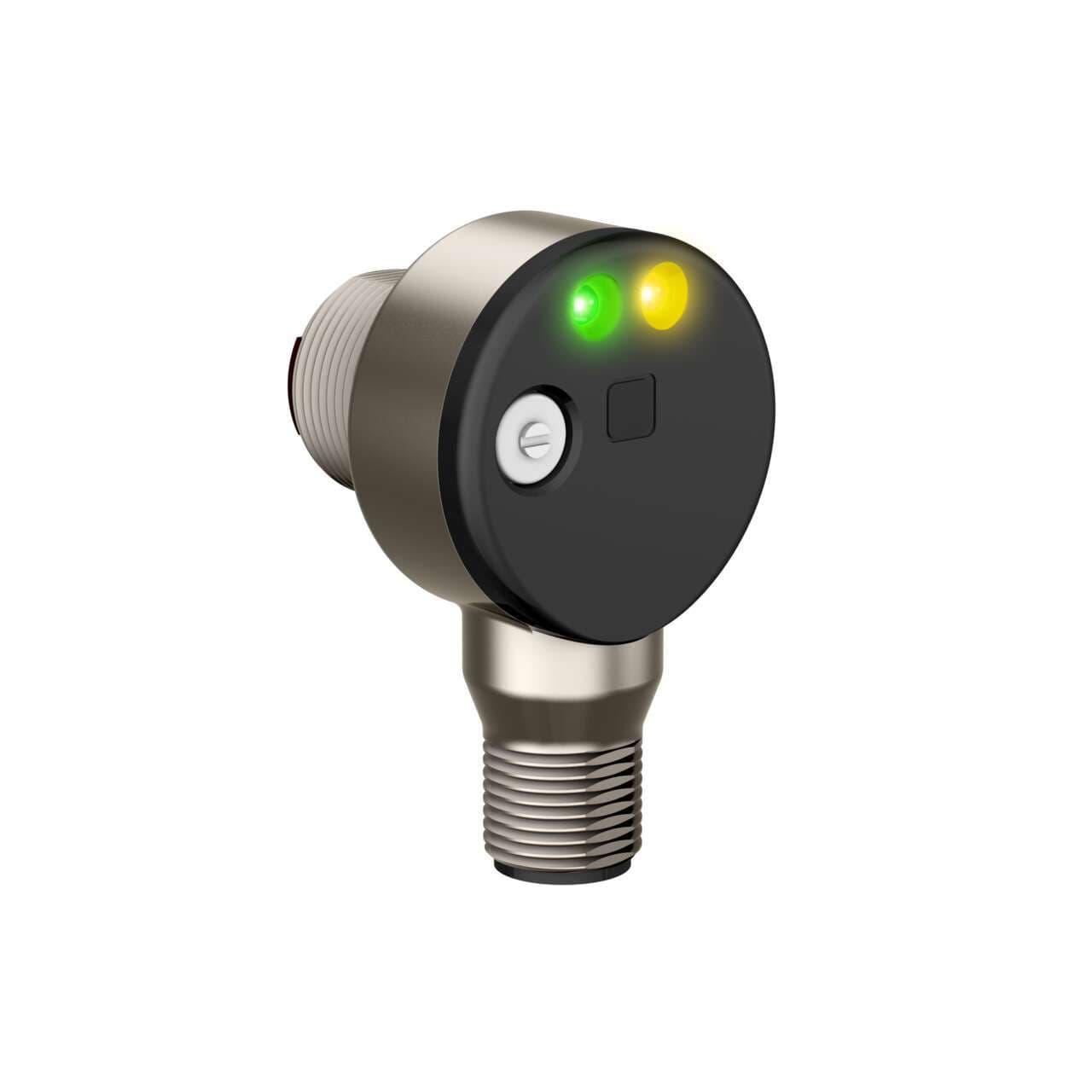

TM18 VP6DVQ8 EZ BEAM TM18: Diffuse (Red); Range: 500 mm; Input: 10-30 V dc; Outputs: PNP Complementary; 4-pin M12 Integral QD

Product Details

  • Weight
    61.23492 g
  • Country Of Origin
    MX
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Encapsulated
    Yes
  • Feature: Audible
    No
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Indicator
    LEDs
  • NEMA Rating
    NEMA 6
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Number of Pins
    4
  • Special Feature: Remote Teach
    No
  • Connection
    Integral QD
  • Feature: Washdown Rated
    Yes
  • Lens Material
    Acrylic
  • Repeatability (µs)
    185
  • Special Feature: Intrinsically Safe
    No
  • Delay at Power-up (ms)
    100
  • IP Rating
    IP67, IP69
  • Special Feature: Water Detection
    No
  • Output response time (ms)
    3 ON/1.5 OFF
  • Quick Disconnect Type
    M12 (Euro)
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -40
  • Max Op. Temp. (°C)
    70
  • Power Supply/Supply Voltage
    10-30 V dc
  • Power
    DC
  • Sensing Mode (Detailed)
    Diffuse
  • Outputs
    PNP
  • Max Sensing Distance (mm)
    500
  • Input/Output
    Discrete
  • Sensing Mode (General)
    Proximity
  • Primary Housing Material
    Zinc Die-Cast with Nickel-Plating
  • Housing Style
    Barrel
  • Sensing Beam
    Visible Red LED
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Design
    diffuse mode heavy-duty
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Product series / family name
    EZ-BEAM series
  • Sub-range name
    TM18 series
  • Main function
    Sensor (Photo-electric)
  • Shape
    Cylindrical smooth
  • Wavelength
    660 nm
  • Mounting mode
    Threaded mount
  • Response time
    3ms / 0.003 s
  • Primary brand
    Banner Engineering
  • Thread size
    M18
  • Ambient air temperature for operation
    -40...+70 °C
  • Functions
    Photo-electric sensor green LED (power ON) yellow LED (output state)
  • Light Color
    Visible red
  • Digital outputs
    1 x digital output (PNP transistor)
  • Sensing distance
    500mm
  • Operating mode
    Light-ON Dark-ON
  • Material
    Nickel-plate die-cast Zinc housing Acrylic lns.
  • Compliant with standard(s)
    cULus CE
  • Degree of protection
    IP69K NEMA 6
  • Order code / Manufacturer SKU
    18027

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TM18VP6DVQ8 on Powermatic Associates is $113.00. Order now.

About the product

Banner Engineering TM18VP6DVQ8 is a photo-electric sensor from the TM18 series, designed for diffuse mode heavy-duty applications. This sensor features a nickel-plated die-cast zinc housing with an acrylic lens, ensuring durability in demanding environments. It comes pre-equipped with a 4-pin Euro-style M12 connector for easy installation. The TM18VP6DVQ8 operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and can be mounted using a threaded mount. It is designed to operate within an ambient air temperature range of -40 to +70°C and offers a high degree of protection with ratings of IP67, IP69K, and NEMA 6, making it suitable for use in a variety of harsh conditions. The sensor has a cylindrical M18 threaded/barrel shape, includes 1 x digital output (PNP transistor), and offers a sensing distance of up to 500mm. It emits visible red light with a wavelength of 660 nm and has a quick response time of 3ms. Additionally, it supports both Light-ON and Dark-ON operating modes.
