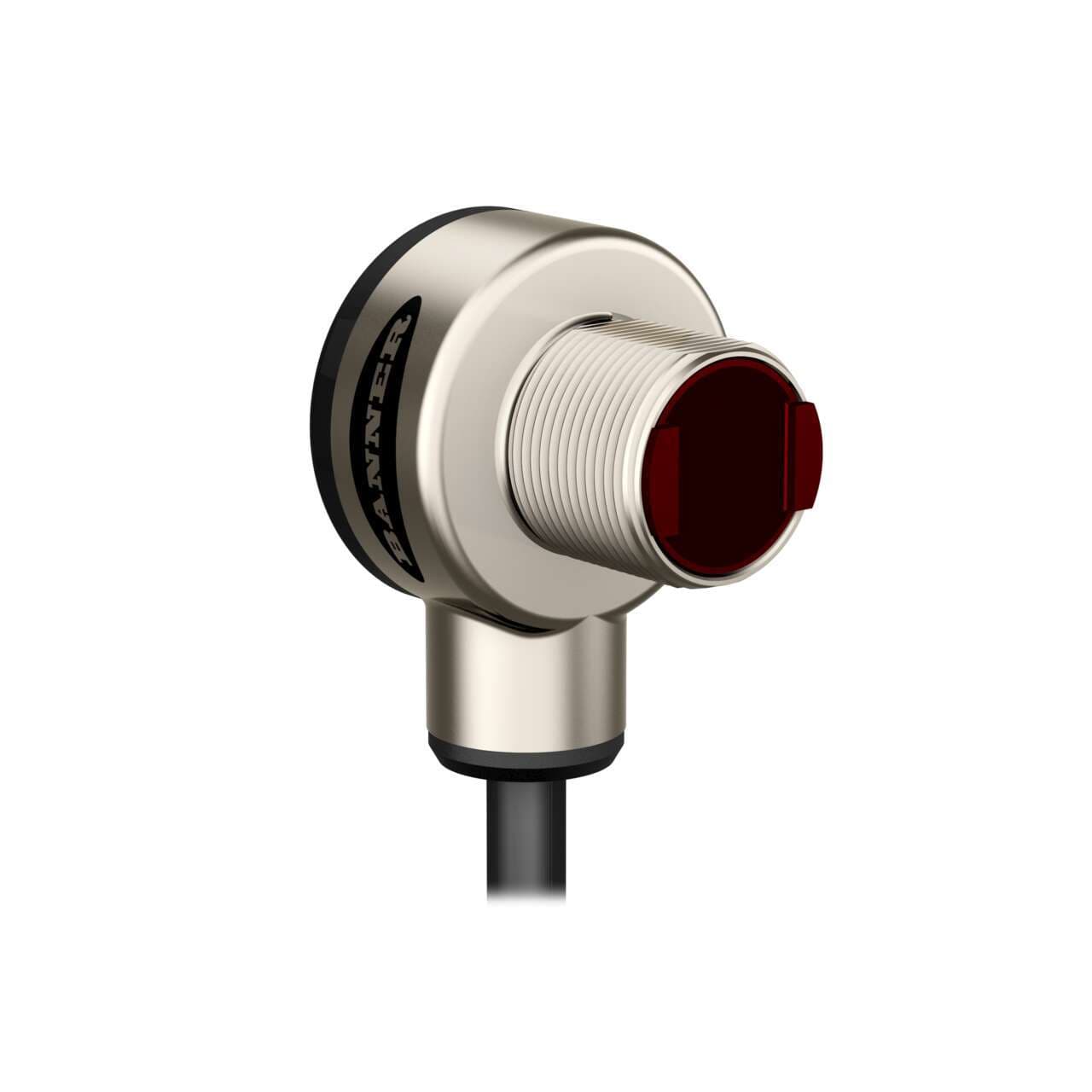

TM18VP6DVQ5 Banner Proximity Sensors


Part#:TM18VP6DVQ5
Alt. Part#:18038
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
TM18 VP6DVQ5 TM18 DIFFUSE M12 PNP LO/DO
Product Details
- Weight 90.7184 g
- Country Of Origin US
- Feature: Audible No
- IO Link No
- DeviceNet No
- Feature: Chemical Resistant No
- Feature: Encapsulated Yes
- Feature: Hazardous Area No
- Feature: Washdown Rated Yes
- Feature: Timing (Hold/Delay) No
- Barrel Diameter (mm) 18
- Opposed Mode Emitter/Receiver N/A
- Lens Material Acrylic
- Adjustments N/A
- Max Op. Relative Humidity [%] 90% @ 50°C
- NEMA Rating NEMA 6
- Indicator LEDs
- IP Rating IP67, IP69
- Number of Pins 4
- Repeatability (µs) 185
- Delay at Power-up (ms) 100
- Special Feature: Water Detection No
- Max Op. Temp. (°C) 70
- Operation Light/Dark Operate
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Output response time (ms) 3 ON/1.5 OFF
- Power Supply/Supply Voltage 10-30 V dc
- Min Op. Temp. (°C) -40
- Quick Disconnect Type M12 (Euro)
- Connection Pigtail QD
- Outputs PNP
- Input/Output Discrete
- Max Sensing Distance (mm) 500
- Housing Style Barrel
- Sensing Mode (Detailed) Diffuse
- Primary Housing Material Zinc Die-Cast with Nickel-Plating
- Sensing Mode (General) Proximity
- Power DC
- Sensing Beam Visible Red LED
- Functions Photo-electric sensor green LED (power ON) yellow LED (output state)
- Sub-range name TM18 series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Cylindrical smooth
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -40...+70 °C
- Main function Sensor (Photo-electric)
- Sensing distance 500mm
- Wavelength 660 nm
- Operating mode Light-ON Dark-ON
- Material Nickel-plate die-cast Zinc housing Acrylic lns.
- Compliant with standard(s) cULus CE
- Primary brand Banner Engineering
- Design diffuse mode heavy-duty
- Degree of protection IP67 NEMA 6
- Product series / family name EZ-BEAM series
- Light Color Visible red
- Thread size M18
- Response time 3ms / 0.003 s
- Order code / Manufacturer SKU 18038
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Mounting mode Threaded mount
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TM18VP6DVQ5 on Powermatic Associates is $123.00. Order now.
About the product
Banner Engineering TM18VP6DVQ5 is a photo-electric sensor from the TM18 series, designed in a diffuse mode heavy-duty format. This sensor features a nickel-plated die-cast zinc housing with an acrylic lens. It is pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Euro-style M12 connector. The TM18VP6DVQ5 operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc. It offers a threaded mount for installation and can operate within an ambient air temperature range of -40 to +70°C. This sensor is protected to IP67, IP69K, and NEMA 6 standards, ensuring its durability in various environments. It has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (PNP transistor), and provides a sensing distance of 500mm. The light source is visible red, with a wavelength of 660 nm and a response time of 3ms / 0.003 s. The operating modes available are Light-ON and Dark-ON, and it features an M18 thread size for mounting.
