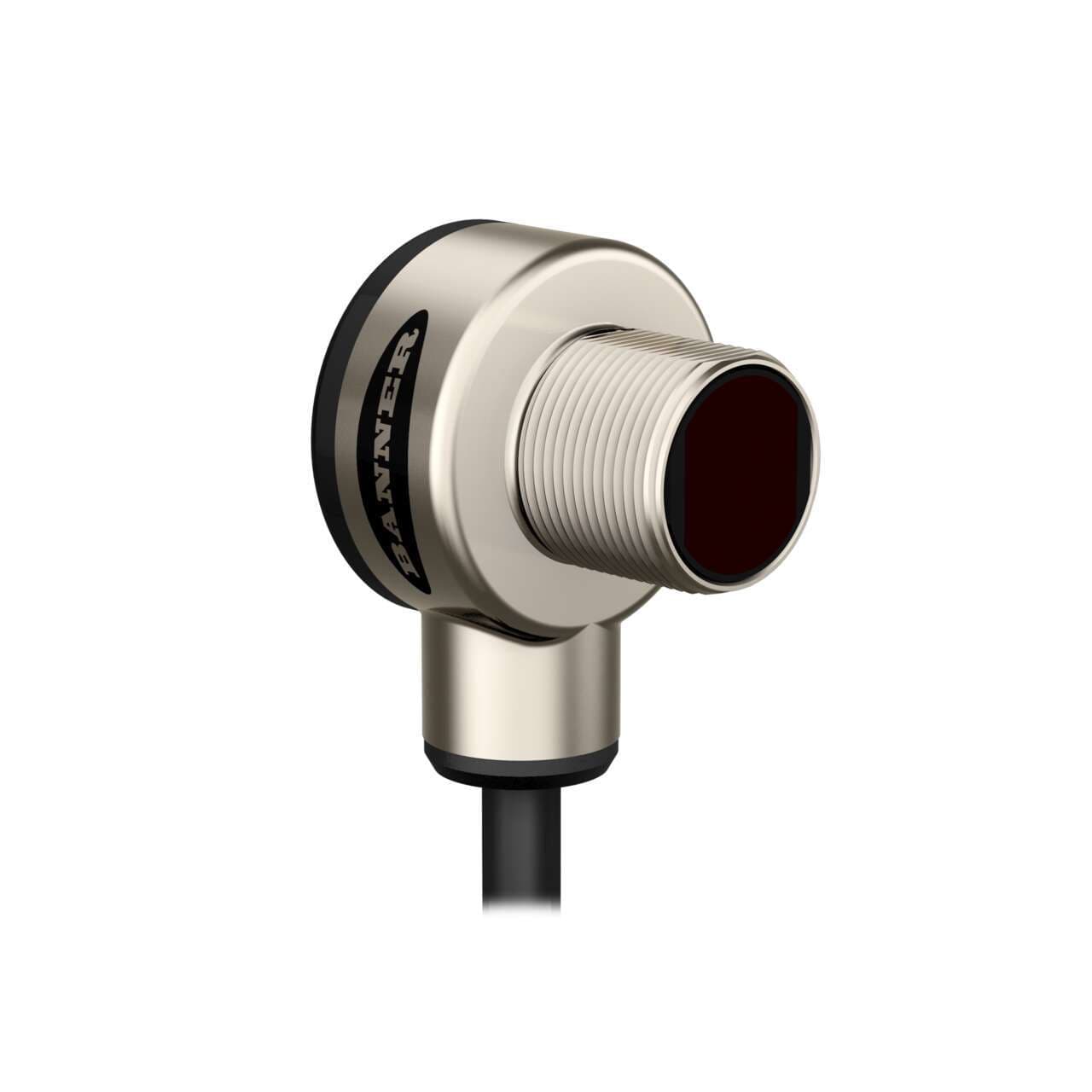

TM18VP6LPQ5 Banner Proximity Sensors


Part#:TM18VP6LPQ5
Alt. Part#:42053
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
TM18 VP6LPQ5 EZ BEAM TM18: Polarized Retroreflective; Range: 5.5 m; Input: 10-30 V dc; Outputs: PNP Complementary; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 90.7184 g
- Country Of Origin MX
- IO Link No
- Feature: Chemical Resistant No
- Feature: Audible No
- Feature: Hazardous Area No
- Adjustments N/A
- DeviceNet No
- Indicator LEDs
- Opposed Mode Emitter/Receiver N/A
- Feature: Timing (Hold/Delay) No
- Feature: Encapsulated Yes
- Feature: Washdown Rated Yes
- Barrel Diameter (mm) 18
- Lens Material Acrylic
- Max Op. Relative Humidity [%] 90% @ 50°C
- NEMA Rating NEMA 6
- IP Rating IP67, IP69
- Number of Pins 4
- Repeatability (µs) 585
- Special Feature: Water Detection No
- Delay at Power-up (ms) 100
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Output response time (ms) 3
- Max Op. Temp. (°C) 70
- Operation Light/Dark Operate
- Quick Disconnect Type M12 (Euro)
- Min Op. Temp. (°C) -40
- Connection Pigtail QD
- Max Sensing Distance (mm) 5500
- Sensing Mode (Detailed) Polarized
- Sensing Beam Visible Red LED
- Primary Housing Material Zinc Die-Cast with Nickel-Plating
- Power DC
- Outputs PNP
- Input/Output Discrete
- Sensing Mode (General) Retroreflective
- Housing Style Barrel
- Sub-range name TM18 series
- Shape Cylindrical smooth
- Mounting mode Threaded mount
- Ambient air temperature for operation -40...+70 °C
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 624 nm
- Main function Sensor (Photo-electric)
- Product series / family name EZ-BEAM series
- Sensing distance 5.5m
- Response time 3ms / 0.003 s
- Primary brand Banner Engineering
- Functions Polarized photo-electric sensor green LED (power ON) yellow LED (output state)
- Light Color Visible red
- Digital outputs 1 x digital output (PNP transistor)
- Design retro-reflective mode heavy-duty
- Thread size M18
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cULus CE
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Material Nickel-plate die-cast Zinc housing Acrylic lns.
- Degree of protection IP67 NEMA 6
- Order code / Manufacturer SKU 42053
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TM18VP6LPQ5 on Powermatic Associates is $136.00. Order now.
About the product
Banner Engineering TM18VP6LPQ5 is a polarized photo-electric sensor from the TM18 series, designed in a retro-reflective mode for heavy-duty applications. It features a nickel-plated die-cast zinc housing with an acrylic lens. This sensor is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. The TM18VP6LPQ5 offers a threaded mount for installation, and it can operate within an ambient air temperature range of -40 to +70°C. It boasts a degree of protection rated at IP67, IP69K, and NEMA 6, ensuring durability in various environmental conditions. The sensor has a cylindrical M18 threaded/barrel shape, includes 1 x digital output (PNP transistor), and provides a sensing distance of up to 5.5m. It emits visible red light with a wavelength of 624 nm and has a quick response time of 3ms / 0.003 s. The operating modes available are Light-ON and Dark-ON, with a thread size of M18.
