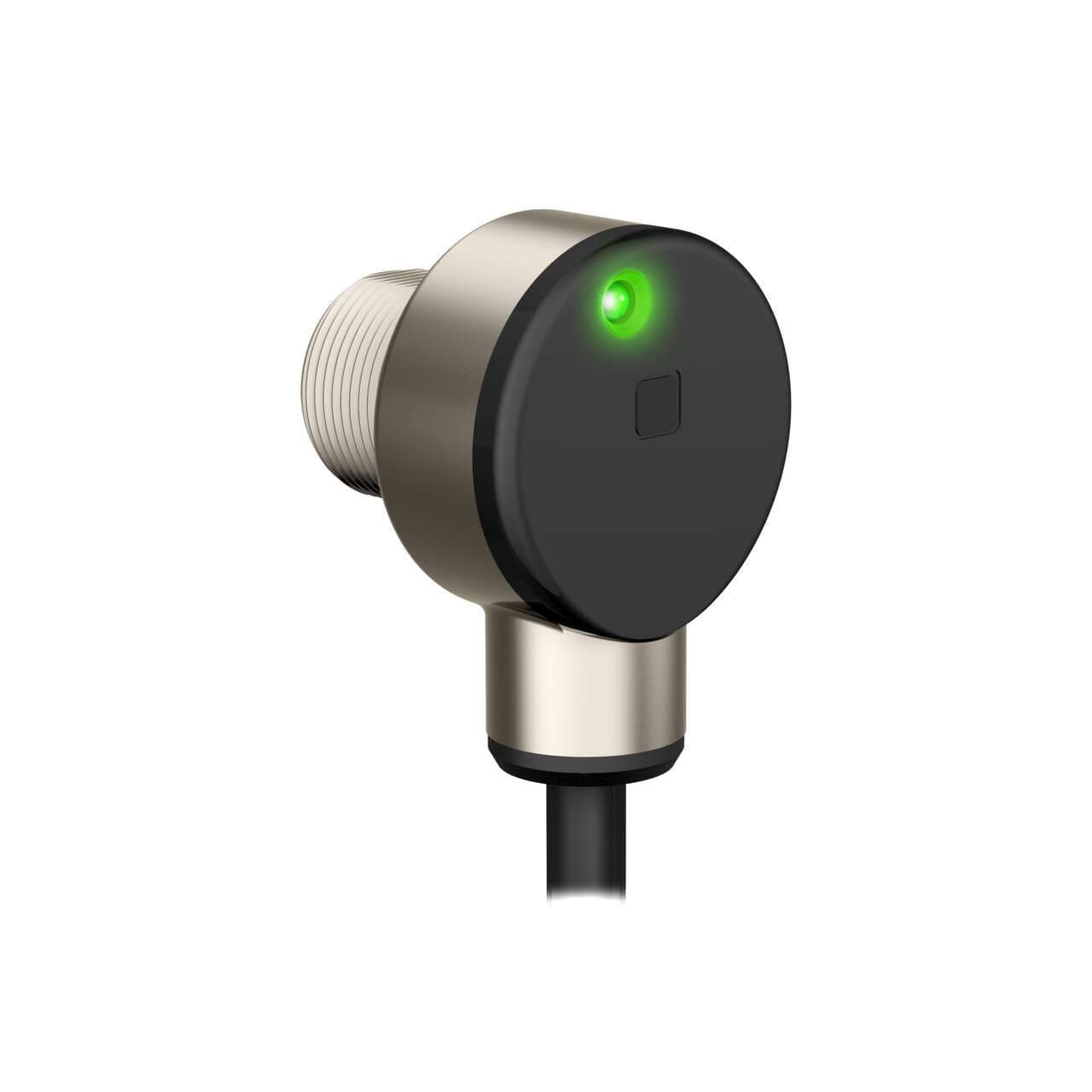

TM186E Banner Proximity Sensors


Part#:TM186E
Alt. Part#:42006
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM TM18: Emitter; Range: 20 m; Input: 10-30 V dc; Outputs: None; 2 m (6.5 ft) Cable
Product Details
- Weight 158.7572 g
- Country Of Origin MX
- Feature: Chemical Resistant No
- IO Link No
- DeviceNet No
- Feature: Washdown Rated Yes
- Number of Pins 2
- NEMA Rating NEMA 6
- Connection Cable
- Sensing Beam Visible Red LED
- Opposed Mode Emitter/Receiver Emitter
- Feature: Audible No
- Feature: Hazardous Area No
- Feature: Encapsulated Yes
- Feature: Timing (Hold/Delay) No
- Indicator LEDs
- Barrel Diameter (mm) 18
- IP Rating IP67
- Adjustments N/A
- Lens Material Polycarbonate
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Repeatability (µs) 190
- Output response time (ms) 1.5 ON/0.75 OFF
- Operation N/A
- Delay at Power-up (ms) 100
- Special Feature: Water Detection No
- Special Feature: Intrinsically Safe No
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Temp. (°C) 70
- Quick Disconnect Type No QD
- Min Op. Temp. (°C) -40
- Primary Housing Material Zinc Die-Cast with Nickel-Plating
- Housing Style Barrel
- Sensing Mode (Detailed) Emitter
- Outputs N/A
- Max Sensing Distance (mm) 20000
- Cable Length (m) 2
- Power DC
- Sensing Mode (General) Opposed
- Main function Sensor (Photo-electric)
- Product series / family name EZ-BEAM series
- Primary brand Banner Engineering
- Sub-range name TM18 series
- Shape Cylindrical threaded/barrel
- Compliant with standard(s) cULus CE
- Order code / Manufacturer SKU 42006
- Degree of protection IP67 NEMA 6
- Functions Photo-electric emitter green LED (power ON) yellow LED (output state)
- Wavelength 625 nm
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Design through-beam system / opposed mode heavy-duty
- Thread size M18
- Material Nickel-plate die-cast Zinc housing Polycarbonate lns.
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Light Color Visible red
- Response time 1.5ms / 0.0015 s
- Ambient air temperature for operation -40...+70 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TM186E on Powermatic Associates is $80.00. Order now.
About the product
Banner Engineering TM186E is a photo-electric sensor from the TM18 series, designed as an emitter in a through-beam system or opposed mode heavy-duty configuration. This sensor features a nickel-plated die-cast zinc housing with a polycarbonate lens. It is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. The TM186E operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It offers a degree of protection rated at IP67 NEMA 6, making it suitable for various environmental conditions. The sensor has an M18 cylindrical threaded/barrel shape, with a sensing distance of up to 20m. It emits visible red light with a wavelength of 625 nm and has a response time of 1.5ms / 0.0015 s. The thread size for mounting is M18.
