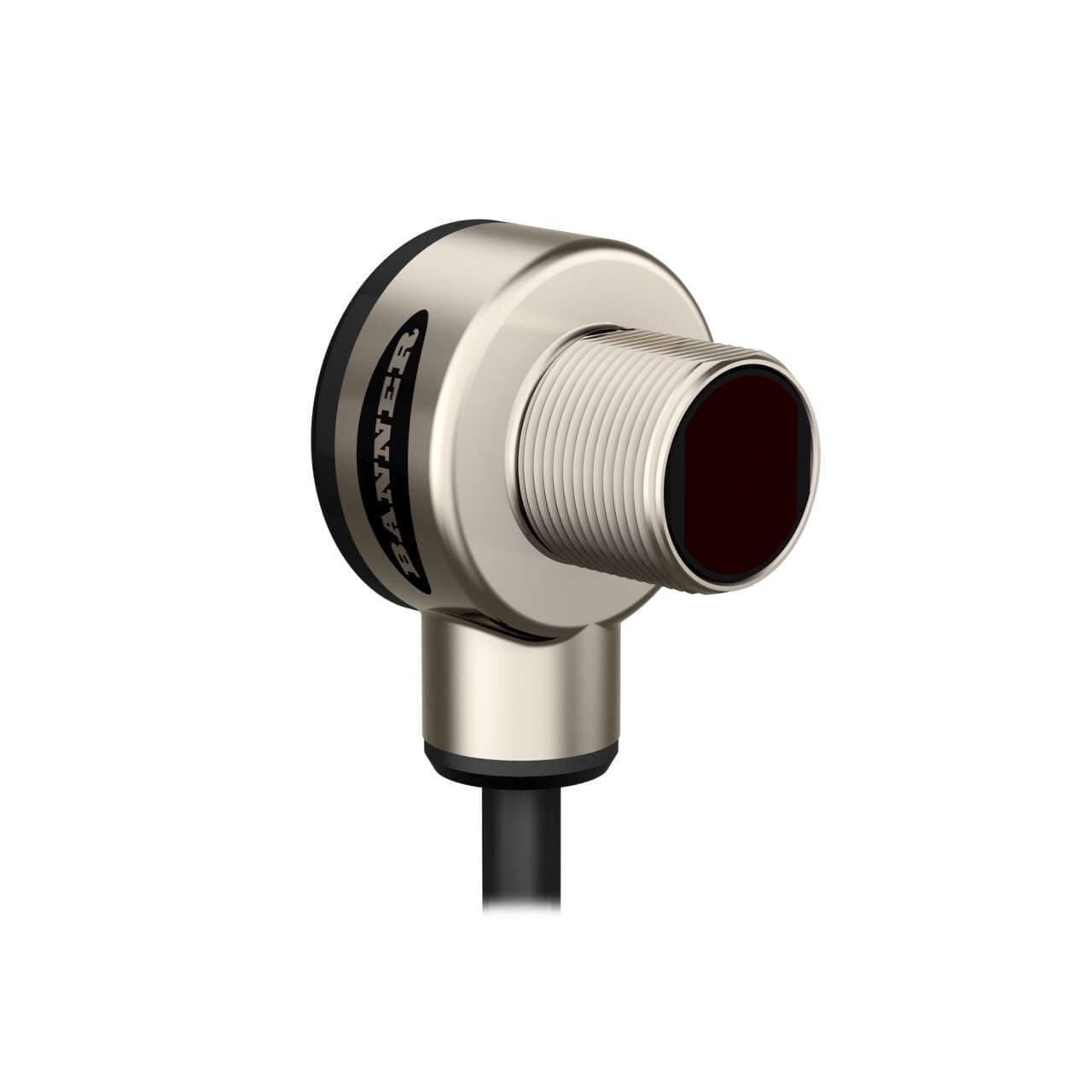

TM18AP6LPQ5 Banner Proximity Sensors

TM18AP6LPQ5 on Powermatic Associates
Banner

Part#:TM18AP6LPQ5

Alt. Part#:42051

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

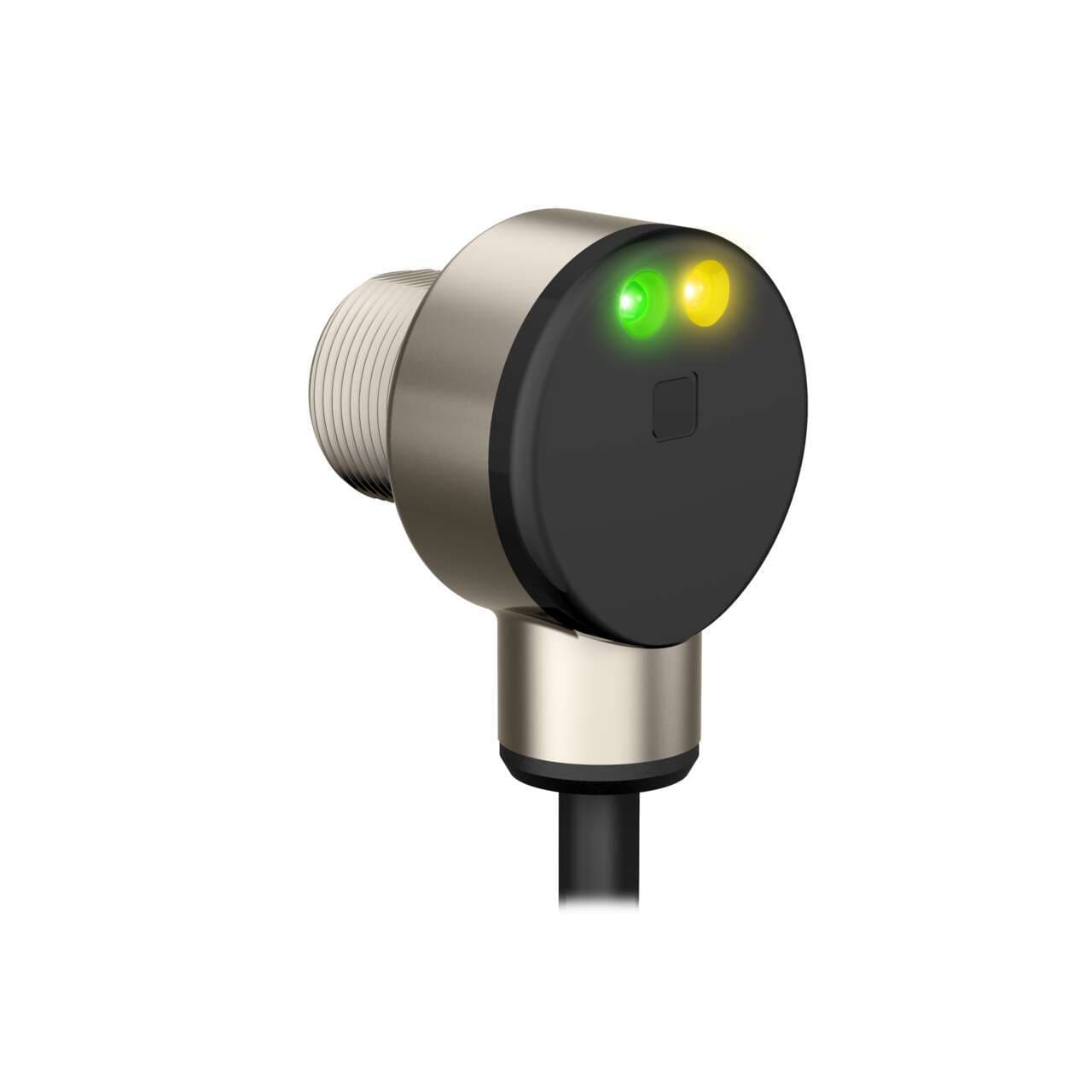

TM18 AP6LPQ5 EZ BEAM TM18: Polarized Retroreflective; Range: 5.5 m; Input: 10-30 V dc; Outputs: PNP Light Operate; 150 mm (6 in) M12 Pigtail QD

Product Details

  • Weight
    13.60776 g
  • Country Of Origin
    US
  • Feature: Chemical Resistant
    No
  • Indicator
    LEDs
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    Yes
  • Feature: Washdown Rated
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • Special Feature: Water Detection
    No
  • Number of Pins
    4
  • IP Rating
    IP67, IP69
  • Repeatability (µs)
    585
  • NEMA Rating
    NEMA 6
  • Delay at Power-up (ms)
    100
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    3
  • Special Feature: Remote Teach
    No
  • Operation
    Light Operate
  • Quick Disconnect Type
    M12 (Euro)
  • Max Op. Temp. (°C)
    70
  • Min Op. Temp. (°C)
    -40
  • Connection
    Pigtail QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    PNP
  • Max Sensing Distance (mm)
    5500
  • Primary Housing Material
    Zinc Die-Cast with Nickel-Plating
  • Input/Output
    Discrete
  • Sensing Beam
    Visible Red LED
  • Sensing Mode (General)
    Retroreflective
  • Sensing Mode (Detailed)
    Polarized
  • Housing Style
    Barrel
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TM18AP6LPQ5 on Powermatic Associates is $136.00. Order now.

About the product

Banner Engineering TM18AP6LPQ5 is a polarized photo-electric sensor from the TM18 series, designed in a retro-reflective mode for heavy-duty applications. It features a nickel-plated die-cast zinc housing with an acrylic lens and is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. This sensor operates within a supply voltage range of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function in ambient air temperatures ranging from -40 to +70°C. It offers a degree of protection rated at IP67, IP69K, and NEMA 6, making it suitable for challenging environments. The TM18AP6LPQ5 has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (PNP transistor), and provides a sensing distance of up to 5.5m. It emits visible red light with a wavelength of 660 nm and has a response time of 3ms / 0.003 s, operating in Light-ON mode.
