TM18AP6FF100Q8 Banner Proximity Sensors

TM18AP6FF100Q8 on Powermatic Associates
Banner
  • TM18AP6FF100Q8
  • TM18AP6FF100Q8

Part#:TM18AP6FF100Q8

Alt. Part#:42017

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

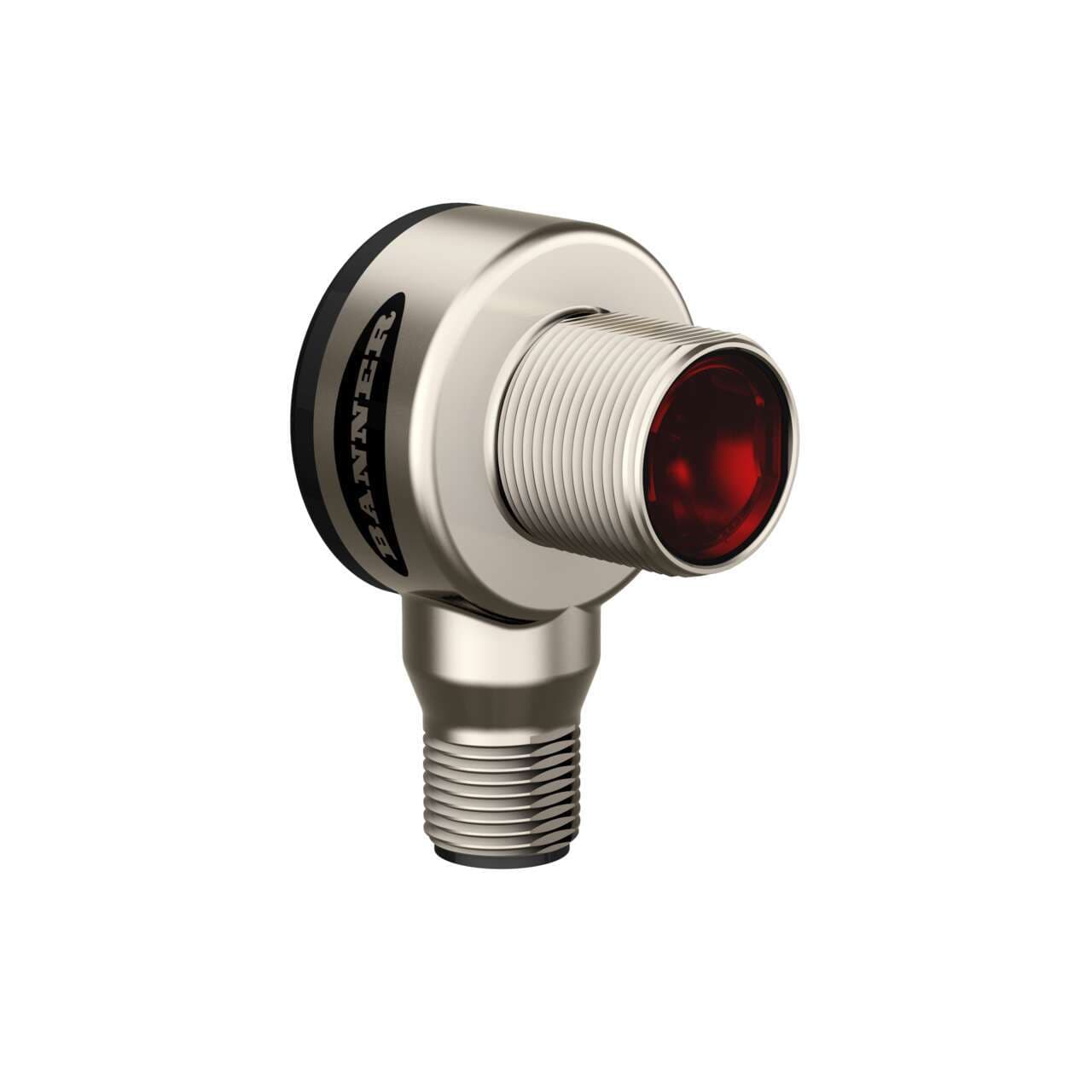

EZ BEAM TM18: Fixed Field Background Suppression; Range: 100 mm; Input: 10-30 V dc; Outputs: PNP Light Operate; 4-pin M12 Integral QD

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    MX
  • Product series / family name
    EZ-BEAM series
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Main function
    Sensor (Photo-electric)
  • Sensing distance
    100mm
  • Digital outputs
    1 x digital output (PNP transistor)
  • Sub-range name
    TM18 series
  • Wavelength
    660 nm
  • Operating mode
    Light-ON
  • Order code / Manufacturer SKU
    42017
  • Primary brand
    Banner Engineering
  • Functions

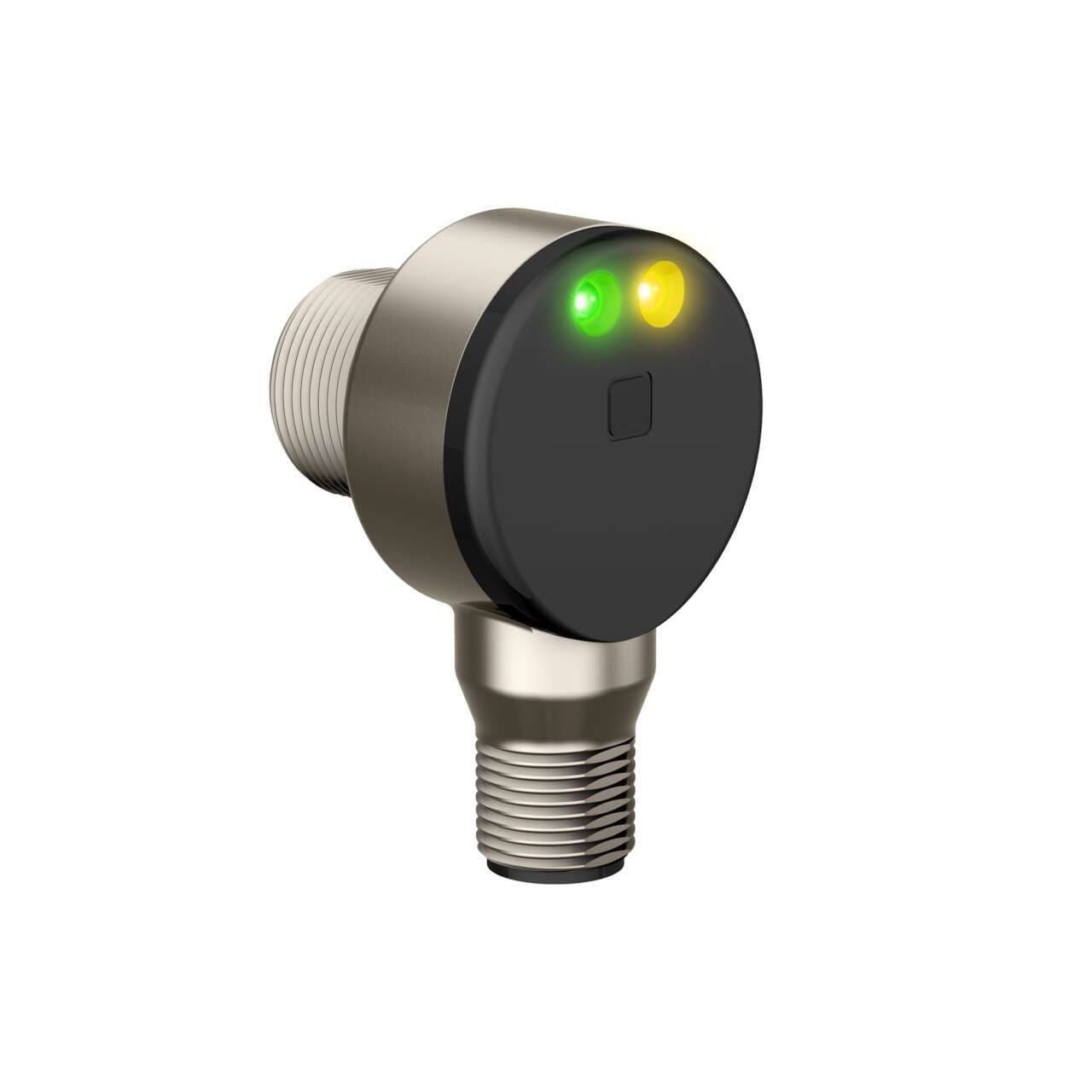

    Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
  • Thread size
    M18
  • Degree of protection
    IP69K NEMA 6
  • Compliant with standard(s)
    cULus CE
  • Design
    background suppression system heavy-duty
  • Light Color
    Visible red
  • Response time
    3ms / 0.003 s
  • Ambient air temperature for operation
    -40...+70 °C
  • Shape
    Cylindrical threaded/barrel
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Material
    Nickel-plate die-cast Zinc housing Acrylic lns.
  • Power
    DC
  • Outputs
    PNP
  • Housing Style
    Barrel
  • Special Feature: Remote Teach
    No
  • Delay at Power-up (ms)
    100
  • Adjustments
    N/A
  • Feature: Encapsulated
    Yes
  • Input/Output
    Discrete
  • Connection
    Integral QD
  • IP Rating
    IP67, IP69
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Audible
    No
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Operation
    Light Operate
  • Lens Material
    Acrylic
  • DeviceNet
    No
  • Sensing Mode (General)
    Proximity
  • Max Op. Temp. (°C)
    70
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Washdown Rated
    Yes
  • Min Op. Temp. (°C)
    -40
  • Output response time (ms)
    3 ON/1.5 OFF
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Max Sensing Distance (mm)
    100
  • Power Supply/Supply Voltage
    10-30 V dc
  • Special Feature: Intrinsically Safe
    No
  • Number of Pins
    4
  • Feature: Timing (Hold/Delay)
    No
  • Primary Housing Material
    Zinc Die-Cast with Nickel-Plating
  • Quick Disconnect Type
    M12 (Euro)
  • Special Feature: Water Detection
    No
  • NEMA Rating
    NEMA 6
  • Barrel Diameter (mm)
    18
  • Sensing Beam
    Visible Red LED
  • Repeatability (µs)
    185
  • Indicator
    LEDs
  • Feature: Hazardous Area
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TM18AP6FF100Q8 on Powermatic Associates is $132.00. Order now.

About the product

Banner Engineering TM18AP6FF100Q8 is a fixed-field photo-electric sensor from the TM18 series, designed with a background suppression system and housed in a nickel-plated die-cast zinc with an acrylic lens. This sensor is pre-equipped with a 4-pin Euro-style M12 connector for connectivity and operates within a supply voltage range of 10Vdc-30Vdc, with nominal values at 12Vdc and 24Vdc. It is built to function in ambient air temperatures ranging from -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6, ensuring durability in various environmental conditions. The sensor features a cylindrical threaded/barrel shape with an M18 thread size, a digital output via a PNP transistor, and a sensing distance of 100mm. It emits visible red light with a wavelength of 660 nm and responds within 3ms. The operating mode for this sensor is Light-ON.
