QS18VN6R Banner Proximity Sensors

Name: QS18VN6R
Brand: Banner
Price: 81 USD
Availability: InStock

Part#:QS18VN6R

Manufacturer:Banner

Alt. Part#:61621

Product Lifecycle:Active

In-stock parts: 57

Nov 16, 2024

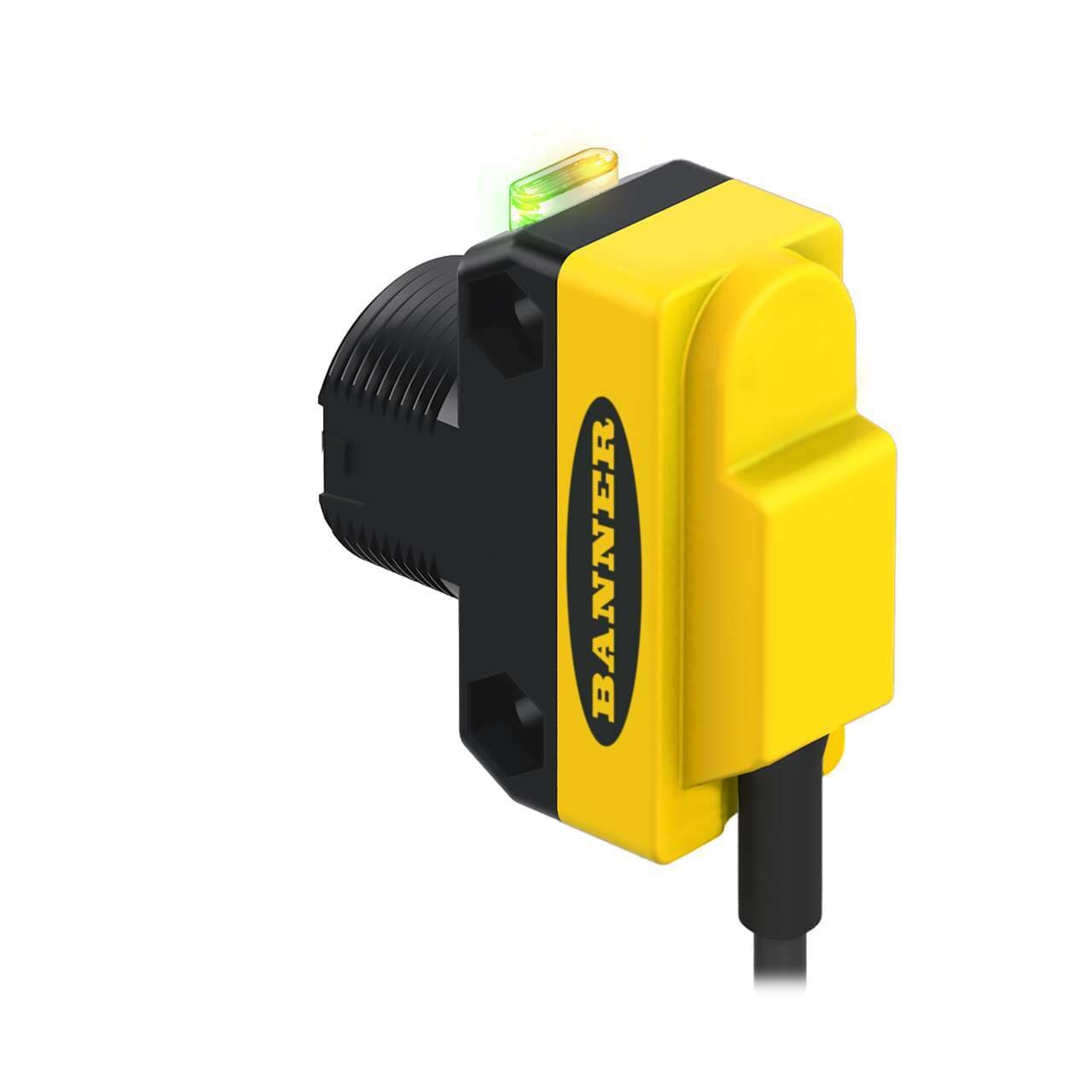

WORLD-BEAM QS18 Series: Receiver; Range: 20 m; Input: 10-30 V dc; Output: Complementary Solid-State NPN; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS18VN6R Banner price in the box on the right side or send a quick quote.

Product Details

Weight
81.64656 g
Country Of Origin
MX
IO Link
No
DeviceNet
No
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Encapsulated
No
Feature: Timing (Hold/Delay)
No
Opposed Mode Emitter/Receiver
Receiver
Indicator
LEDs
Barrel Diameter (mm)
18
Adjustments
N/A
NEMA Rating
NEMA 6
Lens Material
Acrylic
Max Op. Relative Humidity [%]
95% @ 50°C
IP Rating
IP67
Number of Pins
4
Repeatability (µs)
100
Delay at Power-up (ms)
100

Special Feature: Water Detection

Special Feature: Remote Teach

Operation

Light/Dark Operate

Max Op. Temp. (°C)

Output response time (ms)

0.75 ON/0.375 OFF

Min Op. Temp. (°C)

-20

Special Feature: Intrinsically Safe

Connection

Cable

Quick Disconnect Type

No QD

Power Supply/Supply Voltage

10-30 V dc

Outputs

NPN

Housing Style

Rectangular w/M18 Mount

Input/Output

Discrete

Power

Sensing Mode (Detailed)

Receiver

Sensing Mode (General)

Opposed

Primary Housing Material

ABS

Max Sensing Distance (mm)

20000

Cable Length (m)

Sensing Beam

Visible Red or IR

Primary brand

Banner Engineering

Shape

Rectangular

Thread size

M18

Ambient air temperature for operation

-20...+70 °C

Product series / family name

WORLD-BEAM series

Design

through-beam system / opposed mode

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Main function

Sensor (Photo-electric)

Sensing distance

20m

Sub-range name

QS18 series

Functions

Photo-electric sensor receiver green LED (power ON) yellow LED (light sensed)

Mounting mode

Threaded mount

Material

thermoplastic housing Acrylic lns.

Operating mode

Light-ON Dark-ON

Digital outputs

1 x digital output (NPN transistor)

Degree of protection

IP67 NEMA 6

Compliant with standard(s)

cURus CE

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Order code / Manufacturer SKU

61621

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

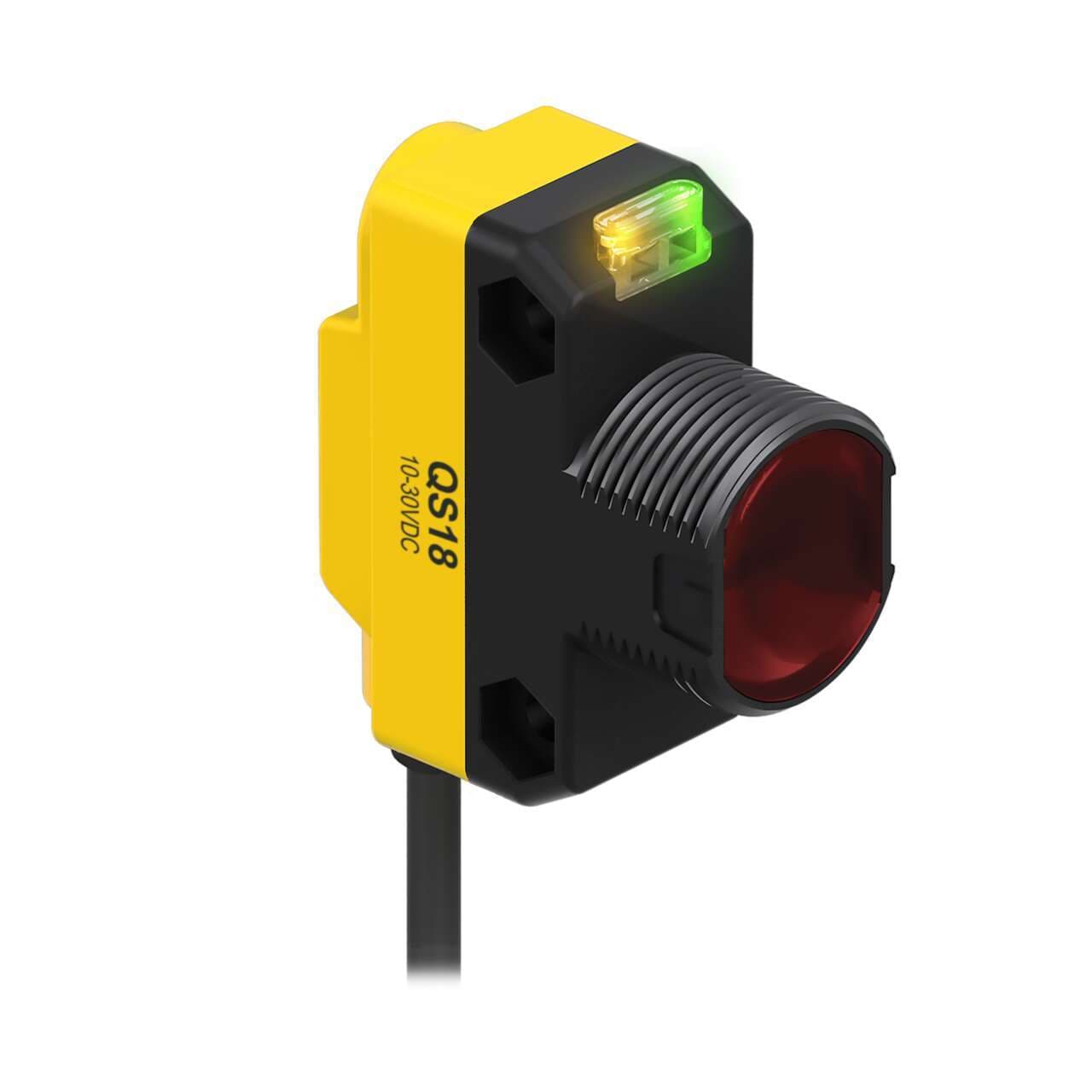

QS18VN6R Description

Banner Engineering QS18VN6R is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component within the QS18 series. This sensor features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. It is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for convenient connection. The QS18VN6R offers a sensing distance of up to 20 meters and includes a digital output (NPN transistor; complementary NO/NC) for versatile signaling. It operates in both Light-ON and Dark-ON modes, accommodating diverse application needs. The sensor's housing is made from durable thermoplastic with an acrylic lens, ensuring protection against environmental conditions as indicated by its IP67 and NEMA 6 ratings. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values.
