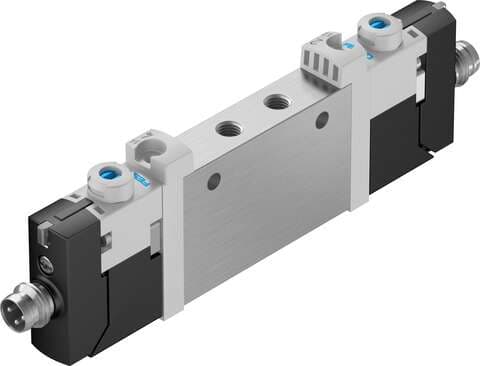

577347 Festo Directional Control Valves

Product Details

• Valve function
  2x3/2, closed, monostable
• Operating voltage
  24V DC
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Operating pressure
  1.5 bar ... 8 bar
• Valve size
  10 mm
• Reset method
  Pneumatic spring
• Type code
  VUVG
• Mounting position
  Any
• Pilot pressure
  1.5 bar ... 8 bar
• Duty cycle
  100%
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Pneumatic connection 1
  M5
• Housing material
  Wrought aluminum alloy
• Degree of protection
  IP65 With plug socket
• Manual override
  Detenting Covered
• Pilot air supply port
  Internal
• Max. negative test pulse on 1 signal
  900 µs
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Electrical connection
  Via electrical sub-base
Pneumatic connection 3
M5
Note on materials
RoHS-compliant
Pilot pressure MPa
0.15 MPa ... 0.8 MPa
Pneumatic working port
M5
Standard nominal flow rate
150 l/min
Sealing principle
Soft
Symbol
00992904
Switching time off
15 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Restricted ambient and media temperature
-5 - 50 °C Without holding power reduction
Ambient temperature
-5 °C ... 60 °C
Pneumatic connection 2
M5
Seals material
HNBR NBR
Lap
Overlap
Actuation type
Electrical
Design
Piston gate valve
Nominal width
2.7 mm
Type of control
Pilot-controlled
Suitability for vacuum
no
Coil characteristics
24 V DC: 1.0 W
Permissible voltage fluctuations
+/- 10 %
Type of mounting
Optionally: With through-hole
Pneumatic connection 5
M5
Exhaust air function
With flow control option
On switching time
6 ms
Max. positive test pulse with 0 signal
700 µs
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Temperature of medium
-5 °C ... 60 °C
Product weight
55 g
Pneumatic connection 4
M5
