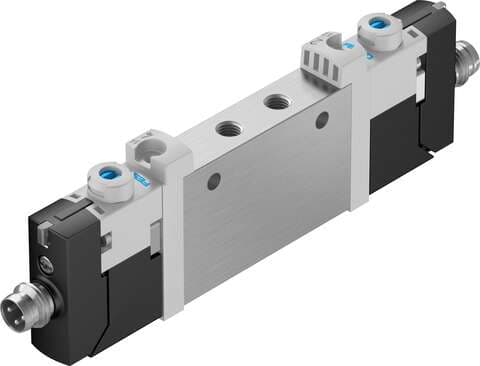

577346 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Actuation type
  Electrical
• Reset method
  Mechanical spring
• Type code
  VUVG
• Pilot air supply port
  Internal
• Max. positive test pulse with 0 signal
  700 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  Optionally: With through-hole
• Pneumatic connection 4
  M5
• Operating pressure
  3 bar ... 8 bar
• Valve size
  10 mm
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Manual override
  Detenting Covered
• Changeover time
  14 ms
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Product weight
  55 g
• Pneumatic connection 3
  M5
• Note on materials
  RoHS-compliant
• Pilot pressure MPa
  0.3 MPa ... 0.8 MPa
Standard nominal flow rate
210 l/min
Pneumatic working port
M5
Sealing principle
Soft
Symbol
00992896
Switching time off
30 ms
Max. negative test pulse on 1 signal
900 µs
Permissible voltage fluctuations
+/- 10 %
Restricted ambient and media temperature
-5 - 50 °C Without holding power reduction
Electrical connection
Via electrical sub-base
Pneumatic connection 5
M5
Design
Piston gate valve
Nominal width
3.2 mm
Mounting position
Any
Pilot pressure
3 bar ... 8 bar
On switching time
11 ms
Coil characteristics
24 V DC: 1.0 W
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 60 °C
Pneumatic connection 2
M5
Seals material
HNBR NBR
Valve function
5/3, closed
Operating voltage
24V DC
Degree of protection
IP65 With plug socket
Exhaust air function
With flow control option
Type of control
Pilot-controlled
Suitability for vacuum
no
Duty cycle
100%
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Temperature of medium
-5 °C ... 60 °C
Pneumatic connection 1
M5
Housing material
Wrought aluminum alloy
