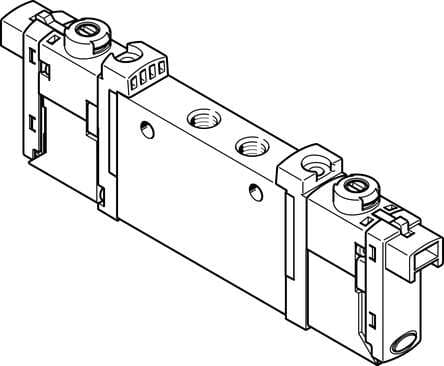

577317 Festo Directional Control Valves

Product Details

• Pilot pressure MPa
  0.15 MPa ... 0.8 MPa
• Standard nominal flow rate
  220 l/min
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Manual override
  Detenting Covered
• Mounting position
  Any
• Duty cycle
  100%
• Actuation type
  Electrical
• Design
  Piston gate valve
• Type code
  VUVG
• Type of control
  Pilot-controlled
• Pilot pressure
  1.5 bar ... 8 bar
• Permissible voltage fluctuations
  +/- 10 %
• Restricted ambient and media temperature
  -5 - 50 °C Without holding power reduction
• Electrical connection
  Via electrical sub-base
• Pneumatic connection 4
  M5
• Operating pressure
  1.5 bar ... 8 bar
• Degree of protection
  IP40 With plug socket
• Exhaust air function
  With flow control option
• Suitability for vacuum
  no
• Coil characteristics
  24 V DC: 1.0 W
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pneumatic connection 1
M5
Seals material
HNBR NBR
Valve function
5/2, bistable
Pneumatic working port
M5
Operating voltage
24V DC
Sealing principle
Soft
Symbol
00992897
Max. negative test pulse on 1 signal
900 µs
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 60 °C
Type of mounting
Optionally: With through-hole
Pneumatic connection 2
M5
Lap
Overlap
Valve size
10 mm
Nominal width
3.2 mm
Pilot air supply port
Internal
Changeover time
7 ms
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pneumatic connection 3
M5
Note on materials
RoHS-compliant
Max. positive test pulse with 0 signal
700 µs
Temperature of medium
-5 °C ... 60 °C
Product weight
55 g
Pneumatic connection 5
M5
Housing material
Wrought aluminum alloy
