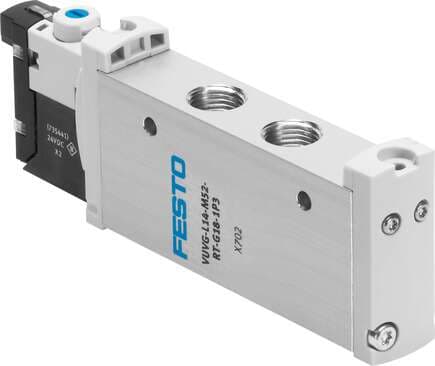

577325 Festo Directional Control Valves

Product Details

• Design
  Piston gate valve
• Nominal width
  5.6 mm
• Operating pressure
  2.5 bar ... 8 bar
• Standard nominal flow rate
  730 l/min
• Reset method
  Pneumatic spring
• Type code
  VUVG
• Type of control
  Pilot-controlled
• Pilot pressure
  2.5 bar ... 8 bar
• Duty cycle
  100%
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Temperature of medium
  -5 °C ... 60 °C
• Electrical connection
  Via electrical sub-base
• Pneumatic connection 5
  G1/8
• Pilot pressure MPa
  0.25 MPa ... 0.8 MPa
• Pneumatic working port
  G1/8
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Mounting position
  Any
• Symbol
  00992908
• Max. negative test pulse on 1 signal
  900 µs
• Permissible voltage fluctuations
  +/- 10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ambient temperature
-5 °C ... 60 °C
Pneumatic connection 2
G1/8
Lap
Overlap
Valve size
14 mm
Operating voltage
24V DC
Exhaust air function
With flow control option
Pilot air supply port
Internal
Suitability for vacuum
no
Max. positive test pulse with 0 signal
700 µs
Restricted ambient and media temperature
-5 - 50 °C Without holding power reduction
Type of mounting
Optionally: With through-hole
Pneumatic connection 4
G1/8
Note on materials
RoHS-compliant
Valve function
5/2, monostable
Actuation type
Electrical
Degree of protection
IP40 With plug socket
Sealing principle
Soft
On switching time
14 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
78 g
Seals material
HNBR NBR
Manual override
Detenting Covered
Switching time off
22 ms
Coil characteristics
24 V DC: 1.0 W
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Pneumatic connection 1
G1/8
Pneumatic connection 3
G1/8
Housing material
Wrought aluminum alloy
