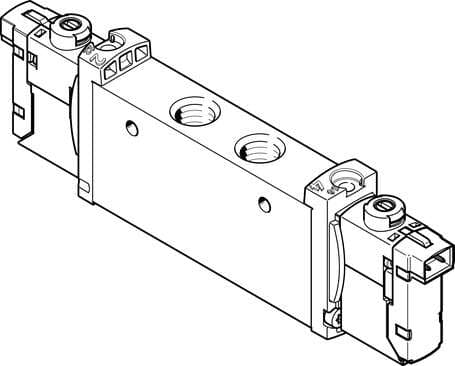

577321 Festo Directional Control Valves

Product Details

• Pilot pressure MPa
  0.15 MPa ... 0.8 MPa
• Pneumatic working port
  G1/8
• Reset method
  Pneumatic spring
• Type code
  VUVG
• Mounting position
  Any
• Lap
  Overlap
• Valve size
  14 mm
• Type of control
  Pilot-controlled
• Switching time off
  25 ms
• Max. positive test pulse with 0 signal
  700 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Electrical connection
  Via electrical sub-base
• Pneumatic connection 4
  G1/8
• Valve function
  2x3/2, closed, monostable
• Actuation type
  Electrical
• Degree of protection
  IP40 With plug socket
• Exhaust air function
  With flow control option
• Suitability for vacuum
  no
• Permissible voltage fluctuations
  +/- 10 %
• Restricted ambient and media temperature
  -5 - 50 °C Without holding power reduction
Pneumatic connection 2
G1/8
Seals material
HNBR NBR
Operating pressure
1.5 bar ... 8 bar
Operating voltage
24V DC
Certification
RCM compliance mark c UL us - Recognized (OL)
Sealing principle
Soft
Pilot pressure
1.5 bar ... 8 bar
Coil characteristics
24 V DC: 1.0 W
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
89 g
Pneumatic connection 3
G1/8
Housing material
Wrought aluminum alloy
Standard nominal flow rate
560 l/min
Design
Piston gate valve
Nominal width
4.6 mm
Manual override
Detenting Covered
Symbol
00992904
Max. negative test pulse on 1 signal
900 µs
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ambient temperature
-5 °C ... 60 °C
Pneumatic connection 1
G1/8
Note on materials
RoHS-compliant
Pilot air supply port
Internal
On switching time
9 ms
Duty cycle
100%
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Temperature of medium
-5 °C ... 60 °C
Type of mounting
Optionally: With through-hole
Pneumatic connection 5
G1/8
