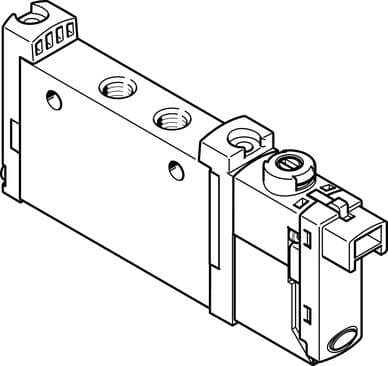

577324 Festo Directional Control Valves

Product Details

• Operating pressure
  2.5 bar ... 8 bar
• Valve size
  10 mm
• Design
  Piston gate valve
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Sealing principle
  Soft
• Symbol
  00992233
• Switching time off
  17 ms
• Permissible voltage fluctuations
  +/- 10 %
• Max. positive test pulse with 0 signal
  700 µs
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Ambient temperature
  -5 °C ... 60 °C
• Type of mounting
  Optionally: With through-hole
• Pneumatic connection 5
  M5
• Seals material
  HNBR NBR
• Pilot pressure MPa
  0.25 MPa ... 0.8 MPa
• Standard nominal flow rate
  220 l/min
• Manual override
  Detenting Covered
• On switching time
  7 ms
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Temperature of medium
  -5 °C ... 60 °C
Pneumatic connection 4
M5
Pneumatic working port
M5
Degree of protection
IP40 With plug socket
Type code
VUVG
Type of control
Pilot-controlled
Pilot pressure
2.5 bar ... 8 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Electrical connection
Via electrical sub-base
Pneumatic connection 3
M5
Valve function
5/2, monostable
Actuation type
Electrical
Reset method
Mechanical spring Pneumatic spring
Nominal width
3.2 mm
Mounting position
Any
Pilot air supply port
Internal
Duty cycle
100%
Max. negative test pulse on 1 signal
900 µs
Restricted ambient and media temperature
-5 - 50 °C Without holding power reduction
Pneumatic connection 1
M5
Product weight
45 g
Housing material
Wrought aluminum alloy
Lap
Overlap
Operating voltage
24V DC
Exhaust air function
With flow control option
Suitability for vacuum
no
Coil characteristics
24 V DC: 1.0 W
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pneumatic connection 2
M5
Note on materials
RoHS-compliant
