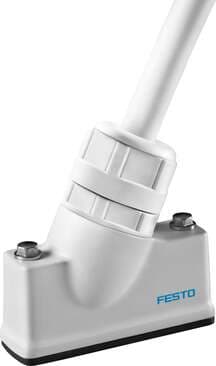

577378 Festo Cable Assemblies

Product Details

• Cable designation
  Without label holder
• Electrical connection 1, function
  Field device end
• Electrical connection 1, number of pins/wires
  44
• Electrical connection 2, connection type
  Cable
• Cable length
  10 m
• Bending radius, flexible cable installation
  ≥ 115 mm
• Special features
  Easy to clean
• Note on degree of protection
  In mounted state
• Material of cable sheath
  PVC
• Material of pin contacts
  Bronze, gold-plated
• Product weight
  1800 g
• Electrical connection 1, cable outlet
  Angled
• Electrical connection 2, function
  Control side
• Electrical connection 2, number of pins/wires
  36
• Cable characteristic
  Standard
• Cable diameter
  9.6 mm
• Degree of protection
  IP65 IP69K
• Ambient temperature with flexible cable installation
  -5 °C ... 60 °C
• Storage temperature
  -20 °C ... 40 °C
• Housing material
  PA-reinforced
Housing colour
Gray
Contact durability
50
Electrical connection 1, design
Rectangular
Electrical connection 1, connection technology
Sub-D
Electrical connection for input 1, connection pattern
00995646
Electrical connection 1, occupied pins/wires
36
DC operating voltage range
0 V ... 30 V
Protective earth connection
Not available
Cable design
36 x 0.25 mm²
Ambient temperature
-5 °C ... 60 °C
Color cable sheath
Gray
Seals material
EPDM
Insulating sheath material
PVC
Type code
NEBV
Contamination level
3
Note on materials
RoHS-compliant
Based on norm
DIN 47100
Electrical connection 1, connection type
Socket
Electrical connection 1, type of mounting
2x screw, 4-40 UNC With seal
Electrical connection 2, connection technology
Open end
Current rating at 40°C
0.86 A
Bending radius, fixed cable installation
≥ 39 mm
Cable diameter tolerance
± 0.2 mm
Nominal conductor cross section
0.25 mm²
Corrosion resistance class (CRC)
3 - High corrosion stress
Material of screws
Stainless steel
