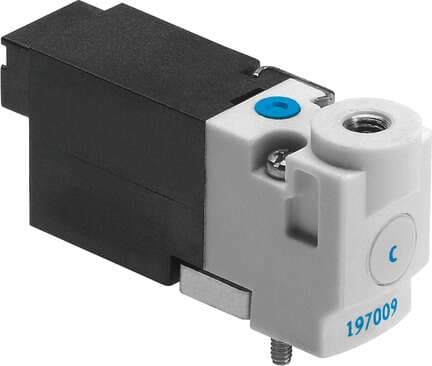

197047 Festo Directional Control Valves

Product Details

• Standard nominal flow rate
  14 l/min
• Pneumatic working port
  M3
• Mounting position
  Any
• Symbol
  00991398
• Switching time off
  5 ms
• Max. positive test pulse with 0 signal
  500 µs
• Permissible voltage fluctuations
  +/- 10 %
• Product weight
  10 g
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Reset method
  Mechanical spring
• Nominal width
  0.9 mm
• Sealing principle
  Soft
• Flow direction
  Non-reversible
• Suitability for vacuum
  yes
• On switching time
  4 ms
• Max. negative test pulse on 1 signal
  400 µs
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Ambient temperature
  -5 °C ... 40 °C
• Pneumatic connection 1
  Sub-base
• Lap
  Underlap
Width
10 mm
Design
Poppet valve with return spring
Width dimension
10 mm
Manual override
Non-detenting
Note on forced dynamization
Switching frequency at least once a week
Max. switching frequency
20 Hz
Electrical power consumption
1 W
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Electrical connection
Plug
Pneumatic connection 2
M3
Valve function
2/2, closed, monostable
Actuation type
Electrical
Operating pressure
-0.9 bar ... 2 bar
Degree of protection
IP40
Exhaust air function
Without flow control option
Type code
MHP1
Valve position ID
Label
Coil characteristics
24 V DC: 1.0 W
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Type of mounting
On sub-base With through-hole
Housing material
PA-reinforced PPS-reinforced
Certificate issuing authority
UL MH19482
Operating voltage
24V DC
Certification
c UL us - Recognized (OL)
Type of control
Direct
Duty cycle
100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-5 °C ... 40 °C
Storage temperature
-20 °C ... 60 °C
Seals material
FPM NBR
