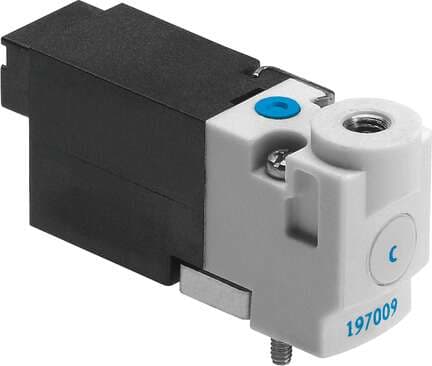

197028 Festo Directional Control Valves

Product Details

• Valve function
  3/2, open, monostable
• Width
  10 mm
• Operating pressure
  0 bar ... 6 bar
• Width dimension
  10 mm
• Mounting position
  Any
• Note on forced dynamization
  Switching frequency at least once a week
• Max. switching frequency
  20 Hz
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Product weight
  10 g
• Electrical connection
  Plug
• Seals material
  FPM NBR
• Actuation type
  Electrical
• Pneumatic working port
  M3
• Sealing principle
  Soft
• Flow direction
  Non-reversible
• Electrical power consumption
  1 W
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Storage temperature
  -20 °C ... 60 °C
• Pneumatic connection 11
  Sub-base
• Lap
  Underlap
Standard nominal flow rate
10 l/min
Reset method
Mechanical spring
Nominal width
0.7 mm
Degree of protection
IP40
Manual override
Non-detenting
Valve position ID
Label
On switching time
4 ms
Duty cycle
100%
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-5 °C ... 40 °C
Pneumatic connection 2
M3
Housing material
PA-reinforced PPS-reinforced
Operating voltage
12V DC
Certification
c UL us - Recognized (OL)
Exhaust air function
With flow control option
Type of control
Direct
Switching time off
4 ms
Permissible voltage fluctuations
+/- 10 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-5 °C ... 40 °C
Type of mounting
On sub-base With through-hole
Pneumatic connection 33
Sub-base
Certificate issuing authority
UL MH19482
Design
Poppet valve with return spring
Type code
MHP1
Symbol
00991322
Coil characteristics
12 V DC: 1.0 W
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Note on materials
Free of copper and PTFE RoHS-compliant
