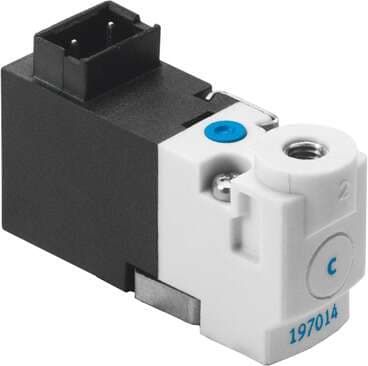

197048 Festo Directional Control Valves

Product Details

• Actuation type
  Electrical
• Pneumatic working port
  M3
• Design
  Poppet valve with return spring
• Degree of protection
  IP40
• Width dimension
  10 mm
• Exhaust air function
  Without flow control option
• Symbol
  00991398
• Max. switching frequency
  20 Hz
• Duty cycle
  100%
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Ambient temperature
  -5 °C ... 40 °C
• Type of mounting
  On sub-base With through-hole
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Type of control
  Direct
• Note on forced dynamization
  Switching frequency at least once a week
• Coil characteristics
  5 V DC: 1.0 W
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Temperature of medium
  -5 °C ... 40 °C
• Valve function
  2/2, closed, monostable
Lap
Underlap
Certificate issuing authority
UL MH19482
Reset method
Mechanical spring
Type code
MHP1
Manual override
Non-detenting
Suitability for vacuum
yes
Permissible voltage fluctuations
+/- 10 %
Housing material
PA-reinforced PPS-reinforced
Seals material
FPM NBR
Standard nominal flow rate
14 l/min
Operating pressure
-0.9 bar ... 2 bar
Certification
c UL us - Recognized (OL)
Sealing principle
Soft
Flow direction
Non-reversible
On switching time
4 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Storage temperature
-20 °C ... 60 °C
Electrical connection
Plug
Pneumatic connection 2
M3
Width
10 mm
Operating voltage
5V DC
Nominal width
0.9 mm
Mounting position
Any
Valve position ID
Label
Switching time off
5 ms
Electrical power consumption
1 W
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
10 g
Pneumatic connection 1
Sub-base
