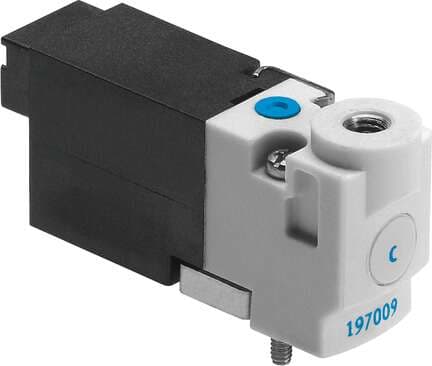

197010 Festo Directional Control Valves

Product Details

• Certificate issuing authority
  UL MH19482
• Standard nominal flow rate
  10 l/min
• Reset method
  Mechanical spring
• Nominal width
  0.65 mm
• Type of control
  Direct
• Symbol
  00991308
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pneumatic connection 2
  M3
• Housing material
  PA-reinforced PPS-reinforced
• Lap
  Underlap
• Operating voltage
  12V DC
• Certification
  c UL us - Recognized (OL)
• Flow direction
  Non-reversible
• Max. switching frequency
  20 Hz
• On switching time
  4 ms
• Coil characteristics
  12 V DC: 1.0 W
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Storage temperature
  -20 °C ... 60 °C
• Electrical connection
  Plug
Seals material
FPM NBR
Actuation type
Electrical
Pneumatic working port
M3
Degree of protection
IP40
Exhaust air function
With flow control option
Mounting position
Any
Note on forced dynamization
Switching frequency at least once a week
Duty cycle
100%
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-5 °C ... 40 °C
Type of mounting
On sub-base With through-hole
Pneumatic connection 3
Sub-base
Valve function
3/2, closed, monostable
Width
10 mm
Design
Poppet valve with return spring
Width dimension
10 mm
Sealing principle
Soft
Switching time off
4 ms
Permissible voltage fluctuations
+/- 10 %
Ambient temperature
-5 °C ... 40 °C
Pneumatic connection 1
Sub-base
Note on materials
Free of copper and PTFE RoHS-compliant
Operating pressure
0 bar ... 8 bar
Type code
MHP1
Manual override
Non-detenting
Valve position ID
Label
Electrical power consumption
1 W
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Product weight
10 g
