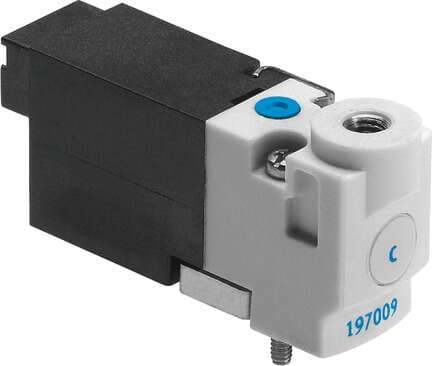

197046 Festo Directional Control Valves

Product Details

• Suitability for vacuum
  yes
• Certificate issuing authority
  UL MH19482
• Standard nominal flow rate
  14 l/min
• Reset method
  Mechanical spring
• Width dimension
  10 mm
• Sealing principle
  Soft
• Symbol
  00991398
• Lap
  Underlap
• Width
  10 mm
• Design
  Poppet valve with return spring
• Nominal width
  0.9 mm
• Exhaust air function
  Without flow control option
• Note on forced dynamization
  Switching frequency at least once a week
• Type of control
  Direct
• Duty cycle
  100%
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Storage temperature
  -20 °C ... 60 °C
• Ambient temperature
  -5 °C ... 40 °C
• Pneumatic connection 1
  Sub-base
• Actuation type
  Electrical
Operating voltage
12V DC
Certification
c UL us - Recognized (OL)
Mounting position
Any
Flow direction
Non-reversible
On switching time
4 ms
Coil characteristics
12 V DC: 1.0 W
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Electrical connection
Plug
Pneumatic connection 2
M3
Valve function
2/2, closed, monostable
Pneumatic working port
M3
Degree of protection
IP40
Manual override
Non-detenting
Switching time off
5 ms
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Type of mounting
On sub-base With through-hole
Housing material
PA-reinforced PPS-reinforced
Operating pressure
-0.9 bar ... 2 bar
Type code
MHP1
Valve position ID
Label
Max. switching frequency
20 Hz
Permissible voltage fluctuations
+/- 10 %
Temperature of medium
-5 °C ... 40 °C
Seals material
FPM NBR
Electrical power consumption
1 W
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Product weight
10 g
Note on materials
Free of copper and PTFE RoHS-compliant
