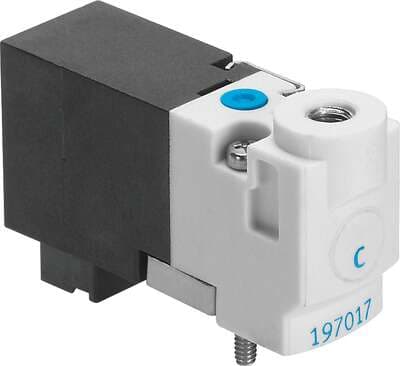

197053 Festo Directional Control Valves

Product Details

• Duty cycle
  100%
• Seals material
  FPM NBR
• Valve function
  2/2, closed, monostable
• Standard nominal flow rate
  14 l/min
• Operating voltage
  24V DC
• Reset method
  Mechanical spring
• Sealing principle
  Soft
• Symbol
  00991398
• Switching time off
  5 ms
• Coil characteristics
  24 V DC: 1.0 W
• Storage temperature
  -20 °C ... 60 °C
• Degree of protection
  IP40
• Type code
  MHP1
• Flow direction
  Non-reversible
• Valve position ID
  Label
• Permissible voltage fluctuations
  +/- 10 %
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Electrical connection
  Plug
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Width
  10 mm
Operating pressure
-0.9 bar ... 2 bar
Nominal width
0.9 mm
Manual override
Non-detenting
On switching time
4 ms
Max. negative test pulse on 1 signal
400 µs
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-5 °C ... 40 °C
Product weight
10 g
Pneumatic connection 2
M3
Lap
Underlap
Actuation type
Electrical
Pneumatic working port
M3
Certification
c UL us - Recognized (OL)
Width dimension
10 mm
Type of control
Direct
Suitability for vacuum
yes
Electrical power consumption
1 W
Max. positive test pulse with 0 signal
500 µs
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ambient temperature
-5 °C ... 40 °C
Pneumatic connection 1
Sub-base
Certificate issuing authority
UL MH19482
Design
Poppet valve with return spring
Exhaust air function
Without flow control option
Mounting position
Any
Note on forced dynamization
Switching frequency at least once a week
Max. switching frequency
20 Hz
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Housing material
PA-reinforced PPS-reinforced
Type of mounting
On sub-base With through-hole
