197040 Festo Directional Control Valves
Part#:197040
Alt. Part#:MHA1-M5H-2/2G-0,9-TC
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

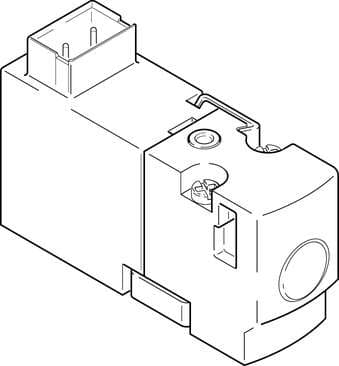

solenoid valve MHA1-M5H-2/2G-0,9-TC manifold block valve for individual and battery mounting, particularly small design, with plug connection at top. Valve function: 2/2 closed, monostable, Type of actuation: electrical, Width: 10 mm, Standard nominal flo
Product Details
- Operating pressure -0.9 bar ... 2 bar
- Reset method Mechanical spring
- Mounting position Any
- Valve function 2/2, closed, monostable
- Actuation type Electrical
- Operating voltage 12V DC
- Design Poppet valve with return spring
- Nominal width 0.9 mm
- Sealing principle Soft
- Symbol 00991398
- Note on forced dynamization Switching frequency at least once a week
- On switching time 4 ms
- Electrical power consumption 1 W
- Temperature of medium -5 °C ... 40 °C
- Storage temperature -20 °C ... 60 °C
- Pneumatic connection 1 Sub-base
- Lap Underlap
- Width 10 mm
- Pneumatic working port Sub-base
- Type code MHA1
- Manual override Non-detenting
- Exhaust air function Without flow control option
- Suitability for vacuum yes
- Switching time off 5 ms
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Product weight 10 g
- Seals material FPM NBR
- Certificate issuing authority UL MH19482
- Standard nominal flow rate 14 l/min
- Degree of protection IP40
- Certification c UL us - Recognized (OL)
- Width dimension 10 mm
- Flow direction Non-reversible
- Type of control Direct
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Coil characteristics 12 V DC: 1.0 W
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Type of mounting On sub-base With through-hole
- Housing material PA-reinforced PPS-reinforced
- Valve position ID Label
- Max. switching frequency 20 Hz
- Duty cycle 100%
- Permissible voltage fluctuations +/- 10 %
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Electrical connection Plug
- Note on materials Free of copper and PTFE RoHS-compliant
- Ambient temperature -5 °C ... 40 °C
- Pneumatic connection 2 Sub-base
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
