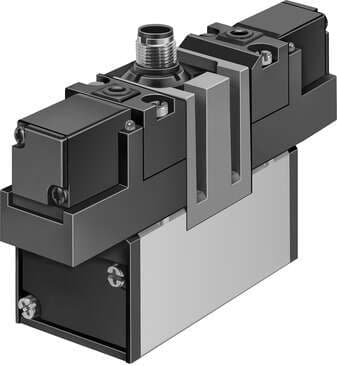

184513 Festo Directional Control Valves

Product Details

• Degree of protection
  IP65
• Type code
  MEBH
• On switching time
  38 ms
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  With through-hole
• Pneumatic connection 5
  Sub-base, size 3 as per ISO 5599-1
• Standard nominal flow rate
  4000 l/min
• Operating pressure
  3 bar ... 10 bar
• Width dimension
  71 mm
• Conforms to standard
  ISO 5599-1
• ISO code
  358
• Symbol
  00991083
• Temperature of medium
  -10 °C ... 50 °C
• Pneumatic connection 1
  Sub-base, size 3 as per ISO 5599-1
• Pneumatic connection 4
  Sub-base, size 3 as per ISO 5599-1
• Valve function
  5/3, pressurized
• Design
  Piston gate valve
• Sealing principle
  Soft
• Type of control
  Pilot-controlled
• Switching time off
  130 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pilot exhaust air port 82
Not ducted
Pneumatic connection 3
Sub-base, size 3 as per ISO 5599-1
Seals material
NBR
Actuation type
Electrical
Pneumatic working port
Sub-base, size 3 as per ISO 5599-1 G1/2
Reset method
Mechanical spring
Exhaust air function
With flow control option
Pilot air supply port
Internal
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 50 °C
Product weight
1120 g
Pilot exhaust air port 84
Not ducted
Width
65 mm
Operating voltage
24V DC
Nominal width
14.5 mm
Mounting position
Any
Manual override
Non-detenting
Flow direction
Non-reversible
Coil characteristics
24 V DC: 2.5 W
Electrical connection
M12x1 Round design
Pneumatic connection 2
Sub-base, size 3 as per ISO 5599-1
Housing material
Die-cast aluminum
