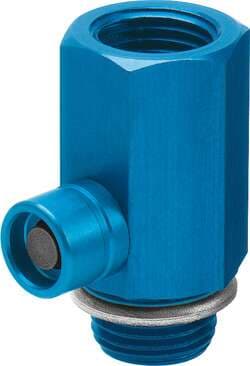

184588 Festo Pneumatic Components

184588 on Powermatic Associates
Festo

Part#:184588

Alt. Part#:HAB-1/2

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

manual override HAB-1/2 For exhaust air. Nominal size: 14 mm, Assembly position: Any, Valve function: exhaust component, Operating pressure: 0 - 10 bar, Standard nominal flow rate, exhaust: 165 l/min

Product Details

  • Type code
    HAB
  • Valve function
    Exhaust element
  • Standard nominal flow rate exhaust air 6->5 bar
    165 l/min
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Temperature of medium
    -20 °C ... 80 °C
  • Pneumatic connection 1
    G1/2
  • Type of mounting
    Screw-in
  • Note on materials
    RoHS-compliant
  • Operating pressure
    0 bar ... 10 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Ambient temperature
    -20 °C ... 80 °C
  • Housing material
    Wrought aluminum alloy Anodized
  • Nominal width
    14 mm
  • Mounting position
    Any
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pneumatic connection 2
    G1/2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
