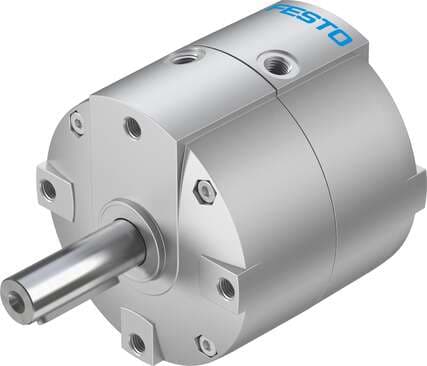

1845722 Festo Pneumatic Actuators
Part#:1845722
Alt. Part#:DRVS-40-90-P
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description
semi-rotary drive DRVS-40-90-P Size: 40, Cushioning angle: 0,5 deg, Swivel angle: 0 - 90 deg, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any
Product Details
- Symbol 00991265
- Swivel angle 0 deg ... 90 deg
- Type code DRVS
- Design Rotary vane
- Operating pressure 2 bar ... 8 bar
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Max. radial force 350 N
- Note on materials RoHS-compliant
- Seals material TPE-U(PU)
- Cushioning angle 0.5 deg
- Cushioning Elastic cushioning rings/pads at both ends
- Ambient temperature 0 °C ... 60 °C
- Theoretical torque at 6 bar 20 Nm
- Drive shaft material Steel, nickel-plated
- Housing material Die-cast aluminum Painted
- Size 40
- Mounting position Any
- Position sensing For proximity sensor
- Max. swivel frequency at 6 bar 3 Hz
- Permissible mass moment of inertia 0.035 kgm²
- Type of mounting With internal thread
- Mode of operation Double-acting
- Variants Spigot shaft
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Product weight 1530 g
- Max. axial force 120 N
- Pneumatic connection G1/8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
