164043 Festo Pneumatic Actuators

Name: 164043
Brand: Festo

Part#:164043

Alt. Part#:DZF-32-80-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 1, 2025

Product description

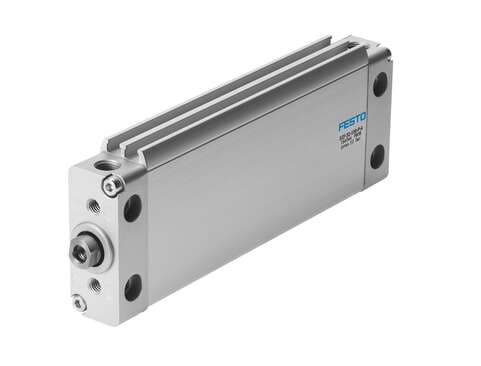

flat cylinder DZF-32-80-P-A Non-rotating, for position sensing, with elastic cushioning rings in end positions. Various mounting options, with or without additional mounting components. Stroke: 80 mm, Piston diameter: (* 32 mm, * Equivalent diameter), Max

Product Details

Operating pressure
0.1 MPa ... 1 MPa
Moving mass at 0 mm stroke
65 g
Cover material
Wrought aluminum alloy
Stroke
80 mm
Design
Piston Piston rod
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. torque for protection against rotation
0.8 Nm
Additional weight per 10 mm stroke
24 g
Basic weight with 0 mm stroke
272 g
Type code
DZF
Mounting position
Any
Symbol
00991217
Ambient temperature
-20 °C ... 80 °C
Pneumatic connection
G1/8
Piston rod material
High-alloy steel
Piston diameter
32 mm Equivalent diameter
Mode of operation
Double-acting
Protection against torsion/guide
Oval piston
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Theoretical force at 6 bar, advancing
483 N

Type of mounting

Optionally: With accessories

Housing material

Aluminum Smooth anodized

Max. angle of rotation of the piston rod +/-

0.8 deg

Cushioning

Elastic cushioning rings/pads at both ends

Position sensing

For proximity sensor

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Theoretical force at 6 bar, retracting

415 N

Additional moving mass per 10 mm stroke

9 g

Seals material

NBR TPE-U(PU)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
