Part#:170824

Alt. Part#:DFM-12-10-P-A-GF

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 22, 2025

Product description

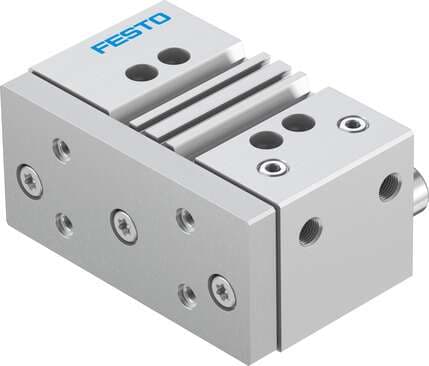

guided drive DFM-12-10-P-A-GF With integrated guide. Centre of gravity distance from working load to yoke plate: 25 mm, Stroke: 10 mm, Piston diameter: 12 mm, Operating mode of drive unit: Yoke, Cushioning: P: Flexible cushioning rings/plates at both ends

Product Details

  • Drive unit operating mode
    Yoke
  • Mounting position
    Any
  • Ambient temperature
    -20 °C ... 80 °C
  • Piston diameter
    12 mm
  • Design
    Guide
  • Max. speed
    0.8 m/s
  • Impact energy in the end positions
    0.07 J
  • Pneumatic connection
    M5
  • Stroke
    10 mm
  • Guide
    Sliding guide
  • Operating pressure
    0.2 MPa ... 1 MPa
  • Mode of operation
    Double-acting
  • Max. payload as a function of the stroke at defined distance xs
    28 N
  • Product weight
    344 g
  • Cover material
    Wrought aluminum alloy
  • Distance of centre of gravity of payload to yoke plate xs
    25 mm
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Symbol
    00991737
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Moving mass
    172 g
  • Note on materials
    RoHS-compliant
  • Piston rod material
    High-alloy stainless steel
  • Max. permissible torque load Mx as a function of the stroke
    0.6 Nm
  • Type code
    DFM
  • Position sensing
    For proximity sensor
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Theoretical force at 6 bar, retracting
    51 N
  • Alternative connections
    See product drawing
  • Housing material
    Wrought aluminum alloy
  • Theoretical force at 6 bar, advancing
    68 N
  • Seals material
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
