163403 Festo Pneumatic Actuators

163403 on Powermatic Associates
Festo

Part#:163403

Alt. Part#:DNC-63-50-PPV-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 15, 2025

Product description

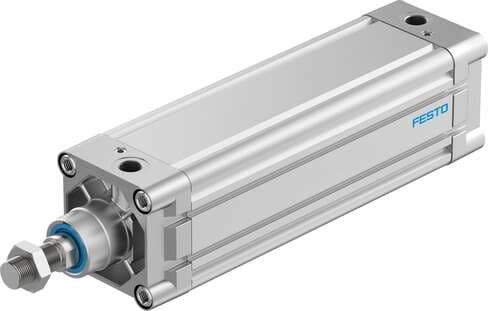

standards-based cylinder DNC-63-50-PPV-A As per ISO 15552, with profile cylinder barrel, for proximity sensing, with adjustable cushioning at both end positions. Stroke: 50 mm, Piston diameter: 63 mm, Piston rod thread: M16x1,5, Cushioning: PPV: Pneumatic

Product Details

  • Piston rod thread
    M16x1.5
  • Piston diameter
    63 mm
  • Mounting position
    Any
  • Symbol
    00991235
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Theoretical force at 6 bar, retracting
    1682 N
  • Theoretical force at 6 bar, advancing
    1870 N
  • Pneumatic connection
    G3/8
  • Piston rod material
    High-alloy steel
  • Maritime classification
    See certificate
  • Cushioning
    Pneumatic cushioning, adjustable at both ends
  • Position sensing
    For proximity sensor
  • Mode of operation
    Double-acting
  • Impact energy in the end positions
    0.5 J
  • Type of mounting
    With internal thread With accessories
  • Seals material
    TPE-U(PU)
  • Stroke
    50 mm
  • Type code
    DNC
  • Design
    Piston Profile barrel
  • Operating pressure
    0.06 MPa ... 1.2 MPa
  • Ambient temperature
    -20 °C ... 80 °C
  • Cushioning length
    22 mm
  • Basic weight with 0 mm stroke
    1709 g
  • Cover material
    Die-cast aluminum Coated
  • Material of cylinder barrel
    Wrought aluminum alloy Smooth anodized
  • Piston rod end
    External thread
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Moving mass at 0 mm stroke
    663 g
  • Additional moving mass per 10 mm stroke
    25 g
  • Note on materials
    RoHS-compliant
  • Conforms to standard
    ISO 15552
  • Variants
    Piston rod at one end
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Additional weight per 10 mm stroke
    73 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
