1383341 Festo Pneumatic Actuators

Name: 1383341
Brand: Festo

Part#:1383341

Alt. Part#:DSBC-80-250-PPVA-N3

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 1, 2025

Product description

standards-based cylinder DSBC-80-250-PPVA-N3 With adjustable cushioning at both ends. Stroke: 250 mm, Piston diameter: 80 mm, Piston rod thread: M20x1,5, Cushioning: PPV: Pneumatic cushioning adjustable at both ends, Assembly position: Any

Product Details

Design
Piston Profile barrel
Piston rod wiper seal material
TPE-U(PU)
Nut material
Steel, galvanized
Stroke
250 mm
Mounting position
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Impact energy in the end positions
1.8 J
Moving mass at 0 mm stroke
810 g
Type of mounting
Optionally: With accessories
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Type code
DSBC
Position sensing
For proximity sensor
Variants
Piston rod at one end
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Theoretical force at 6 bar, advancing
3016 N
Note on materials
RoHS-compliant
Symbol
00991235
Material of bearing
POM
Piston rod thread
M20x1.5

Conforms to standard

ISO 15552

Mode of operation

Double-acting

Ambient temperature

-20 °C ... 80 °C

Additional weight per 10 mm stroke

92 g

Pneumatic connection

G3/8

Piston rod material

High-alloy steel

Cushion piston material

POM

Flange screws material

Steel, galvanized

Piston diameter

80 mm

Piston rod end

External thread

Operating pressure

0.04 MPa ... 1.2 MPa

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Theoretical force at 6 bar, retracting

2721 N

Cover material

Die-cast aluminum, coated

Buffer seal material

TPE-U(PU)

Cushioning

Pneumatic cushioning, adjustable at both ends

Cushioning length

31 mm

Basic weight with 0 mm stroke

2660 g

Material of cylinder barrel

Wrought aluminum alloy, smooth-anodized

Additional moving mass per 10 mm stroke

39 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1383341 Related Documents

1383341 DataSheet.pdf

Similar products from: Festo Pneumatic Actuators

544034

Festo

mini slide DGSL-25-50-PA With position sensing, highly accurate, durable ball-cage guide, flexible damping on both sides without metallic end position (P). Stroke: 50 mm, Adjustable endposition range/front length: 55 mm, Adjustable endposition range/rear

1 in stock

536287

Festo

compact cylinder ADN-32-80-I-P-A Per ISO 21287, with position sensing and internal piston rod thread Stroke: 80 mm, Piston diameter: 32 mm, Piston rod thread: M8, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

1 in stock

1804669

Festo

standards-based cylinder DSBC-125-250-PPSA-N3 with self-adjusting pneumatic end position cushioning Stroke: 250 mm, Piston diameter: 125 mm, Piston rod thread: M27x2, Cushioning: PPS: Self-adjusting pneumatic end-position cushioning, Assembly position: An

6 in stock

536248

Festo

compact cylinder ADN-20-40-I-P-A Per ISO 21287, with position sensing and internal piston rod thread Stroke: 40 mm, Piston diameter: 20 mm, Piston rod thread: M6, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

1 in stock

164043

Festo

flat cylinder DZF-32-80-P-A Non-rotating, for position sensing, with elastic cushioning rings in end positions. Various mounting options, with or without additional mounting components. Stroke: 80 mm, Piston diameter: (* 32 mm, * Equivalent diameter), Max

1 in stock

170860

Festo

guided drive DFM-32-100-P-A-GF With integrated guide. Centre of gravity distance from working load to yoke plate: 50 mm, Stroke: 100 mm, Piston diameter: 32 mm, Operating mode of drive unit: Yoke, Cushioning: P: Flexible cushioning rings/plates at both en

2 in stock

Manufacturer warranty

1383341 Festo

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 1383341 with other Pneumatic Actuators products

Design

Piston rod wiper seal mat...

Nut material

Stroke

Mounting position

Operating medium

Impact energy in the end ...

Moving mass at 0 mm strok...

Type of mounting

Piston seal material

Selected product

1 in stock

1383341

Festo

standards-based cylinder DSBC-80-250-PPVA-N3 With adjustable cushioning at both ends. Stroke: 250 mm...

DesignPiston Profile barrel

Piston rod wiper seal materialTPE-U(PU)

Nut materialSteel, galvanized

Stroke250 mm

Mounting positionAny

Operating mediumCompressed air as per ISO 85...

Impact energy in the end positions1.8 J

Moving mass at 0 mm stroke810 g

Type of mountingOptionally: With accessories

Piston seal materialTPE-U(PU)

6 in stock

1804669

Festo

standards-based cylinder DSBC-125-250-PPSA-N3 with self-adjusting pneumatic end position cushioning ...

Design-

Piston rod wiper seal materialTPE-U(PU)

Nut materialSteel, galvanized

Stroke250 mm

Mounting position-

Operating medium-

Impact energy in the end positions-

Moving mass at 0 mm stroke-

Type of mounting-

Piston seal materialTPE-U(PU)

6 in stock

19252

Festo

standards-based cylinder DSNU-25-250-PPV-A Based on DIN ISO 6432, for proximity sensing. Various mou...

Design-

Piston rod wiper seal material-

Nut material-

Stroke250 mm

Mounting position-

Operating medium-

Impact energy in the end positions-

Moving mass at 0 mm stroke-

Type of mounting-

Piston seal material-

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

Recently viewed products

CRDSNU-20-72-P-A-CS

Festo

Festo CRDSNU-20-72-P-A-CS is a pneumatic cylinder designed for mounting via accessories, featuring a high-alloy stainless steel cylinder barrel, cover, and piston rod. It operates within an ambient air temperature range of 0°C to +80°C and has a round cylindrical shape. This stainless steel double-acting single-ended round ISO pneumatic air cylinder falls under the CRDSNU series, with a design based on ISO6432. It includes built-in magnet elastic cushioning at both ends for unlubricated operation and allows for position sensing via a proximity sensor. The cylinder is double-acting, utilizing compressed air as per ISO8573-1;2010 [7;4;4] standards. It features an M8 male threaded rod and a 1/8" BSPP / G1/8" threaded pneumatic port for connections. The operating pressure range is +1 to +10bar, with a bore size of 20mm and a stroke length of 72mm.

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

Novanta IMS MDI3CRL17C4-EQ-N is a stepper motor that features an integrated driver and operates as a 2-phase DC stepper motor. It is designed with an external single-end 512-line optical encoder, a rear control knob, and a triple (3) motor stack, enhanced by the Plus 2 version for expanded features. This motor utilizes a 16-pin locking wire crimp connector and a 10-pin friction-lock wire crimp connector for its connections. It supports RS-422 and RS-485 communication protocols. The supply voltage required for operation ranges from 12Vdc to 48Vdc, with an optimal performance at 24Vdc. It is mounted using a 42x42mm flange. The ambient air temperature suitable for its operation is between 0 and +85°C. This stepper motor is rated with a degree of protection of IP20, has a moment of inertia of 0.082kg.cm^2, a stall torque of 53N.cm, and offers a resolution characterized by a 1.8° step angle.

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

Novanta IMS MDI4MRQ34B2-EQ is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase AC stepper motor design. It is equipped with an external single-end 512-line optical encoder and a double (2) motor stack, Plus 2 version for expanded features. The connection is facilitated through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a 240Vac supply voltage and is designed for mounting with an 85x85mm flange. It can operate in ambient air temperatures ranging from 0 to +85°C and has a degree of protection rated at IP65. The moment of inertia is specified at 1.6kg.cm2, with a stall torque of 353N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

LMHCE572C

Novanta IMS

Novanta IMS LMHCE572C is a stepper motor within the high-torque stepper motors sub-range, featuring an integrated driver and a high-torque DC stepper motor. It is designed with an incremental magnetic encoder, double (2) motor stack, and operates on closed-loop hMTechnology. The connection types include a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting Ethernet/IP and Modbus TCP communication protocols. The supply voltage ranges from 12Vdc to 60Vdc, with optimal performance at 24Vdc and 48Vdc. It is mounted via a 57x57mm flange and offers a degree of protection rated at IP65. The moment of inertia is 0.22kg.cm^2, with a stall torque of 186N.cm and a resolution of a 1.8° step angle.

0 in stock

61570882

SAB

SABIX A 157 FRNC - 16 AWG/1c, flame retardant halogen-free 1000V white hook-up wire, UL, CE, RoHS

0 in stock

ZB4BD3

Schneider Electric

Schneider Electric ZB4BD3 is a selector switch belonging to the XB4 sub-range, featuring a head with a standard handle. The bezel of this switch is chromium-plated and made of metal, presenting a round shape. It offers a high degree of protection with ratings of IP69K, NEMA 4X, and NEMA 13, ensuring its suitability for various industrial environments. The mechanical durability of this switch is rated at 1,000,000 operations at no load. It has a diameter of 22 mm and operates in a 3-position stay-put mode, with angular positions set at -45°, 0, and +45°.

0 in stock

CRDSNU-20-72-P-A-CS

Festo

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

0 in stock

LMHCE572C

Novanta IMS

0 in stock

ZB4BD3

Schneider Electric

0 in stock

CRDSNU-20-72-P-A-CS

Festo

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

0 in stock

Relevant products

I5MADK0000000S

Verified stock: 2,420

Lenze I5MADK0000000S is a keypad designed with an LCD display. This part serves as a keypad with its primary function to facilitate user input and interaction.

Lenze

1383377

Verified stock: 0

standards-based cylinder DSBC-80-500-PPSA-N3 with self-adjusting pneumatic end position cushioning Stroke: 500 mm, Piston diameter: 80 mm, Piston rod thread: M20x1,5, Cushioning: PPS: Self-adjusting pneumatic end-position cushioning, Assembly position: An

Festo

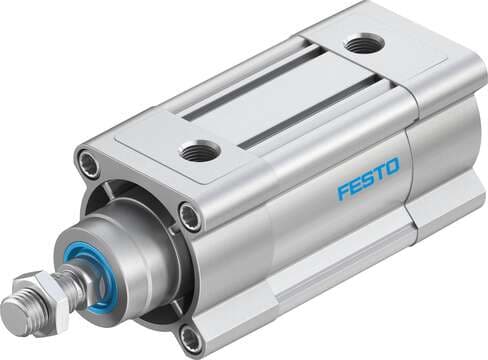

1383633
