19252 Festo Pneumatic Actuators

19252 on Powermatic Associates
Festo

Part#:19252

Alt. Part#:DSNU-25-250-PPV-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

6 in stock

Apr 1, 2025

Product description

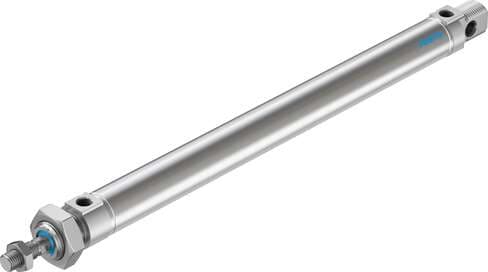

standards-based cylinder DSNU-25-250-PPV-A Based on DIN ISO 6432, for proximity sensing. Various mounting options, with or without additional mounting components. With adjustable end-position cushioning. Stroke: 250 mm, Piston diameter: 25 mm, Piston rod

Product Details

  • Position sensing
    For proximity sensor
  • Piston rod thread
    M10x1.25
  • Piston rod end
    External thread
  • Symbol
    00991235
  • Variants
    Piston rod at one end
  • Moving mass at 0 mm stroke
    71 g
  • Type of mounting
    With accessories
  • Cover material
    Wrought aluminum alloy Plain anodized
  • Piston diameter
    25 mm
  • Conforms to standard
    CETOP RP 52 P ISO 6432
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Theoretical force at 6 bar, advancing
    294.5 N
  • Note on materials
    RoHS-compliant
  • Maritime classification
    See certificate
  • Type code
    DSNU
  • Design
    Piston Cylinder barrel
  • Mode of operation
    Double-acting
  • Cushioning length
    17 mm
  • Additional weight per 10 mm stroke
    11 g
  • Material of cylinder barrel
    High-alloy stainless steel
  • Stroke
    250 mm
  • Cushioning
    Pneumatic cushioning, adjustable at both ends
  • Mounting position
    Any
  • Operating pressure
    0.1 MPa ... 1 MPa
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Theoretical force at 6 bar, retracting
    247.4 N
  • Basic weight with 0 mm stroke
    238 g
  • Seals material
    NBR TPE-U(PU)
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Impact energy in the end positions
    0.3 J
  • Ambient temperature
    -20 °C ... 80 °C
  • Additional moving mass per 10 mm stroke
    6 g
  • Pneumatic connection
    G1/8
  • Piston rod material
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
