192593 Festo Compressed Air Preparation Units

Name: 192593
Brand: Festo

Part#:192593

Alt. Part#:LFR-1/4-D-7-O-MIDI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

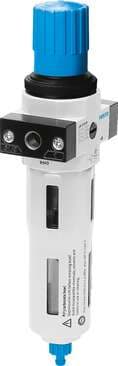

filter regulator LFR-1/4-D-7-O-MIDI Without pressure gauge, maximum outlet pressure 7 bar. Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration: 40 µm

Product Details

Size
Midi
Actuator lock
Rotary knob with detent
Symbol
00991586
Pressure regulation range
0.5 bar ... 7 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-10 °C ... 60 °C
Housing material
Die-cast zinc
Maritime classification
See certificate
Grade of filtration
40 µm
Condensate drain
Manually rotating
Operating pressure
1 bar ... 16 bar
Air quality class at the output
Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
Type of mounting
Optionally: With accessories
Pressure gauge
G1/4 prepared
Series
D
Mounting position
Vertical +/- 5°
Bowl guard
Metal bowl guard
Operating medium
Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
Storage temperature
-10 °C ... 60 °C
Product weight
900 g

Note on materials

RoHS-compliant

Type code

LFR

Design

Filter regulator without pressure gauge

Standard nominal flow rate

2100 l/min

Temperature of medium

-10 °C ... 60 °C

Pneumatic connection 2

G¼

Max. condensate volume

43 ml

Max. pressure hysteresis

0.2 bar

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Pneumatic connection 1

G1/4

Material of bowl

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
