184509 Festo Pneumatic Components

184509 on Powermatic Associates
Festo

Part#:184509

Alt. Part#:JMEBH-5/2-D-3-ZSR-C

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

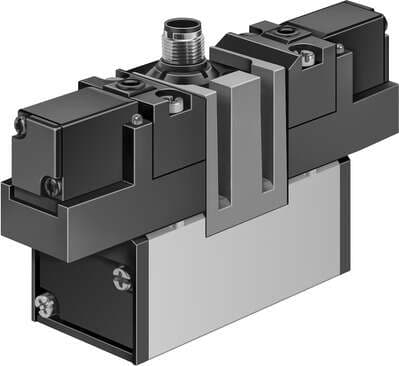

solenoid valve JMEBH-5/2-D-3-ZSR-C With central plug connector Valve function: 5/2 bistable, Type of actuation: electrical, Width: 65 mm, Standard nominal flow rate: 4500 l/min, Operating pressure: 2 - 10 bar

Product Details

  • Type code
    JMEBH
  • Mounting position
    Any
  • Manual override
    Non-detenting
  • Ambient temperature
    -10 °C ... 50 °C
  • Pilot exhaust air port 82
    Not ducted
  • Pneumatic connection 5
    Sub-base, size 3 as per ISO 5599-1
  • Product weight
    1080 g
  • Width
    65 mm
  • Nominal width
    14.5 mm
  • Type of control
    Pilot-controlled
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Electrical connection
    M12x1 Round design
  • Pneumatic connection 4
    Sub-base, size 3 as per ISO 5599-1
  • Standard nominal flow rate
    4500 l/min
  • Design
    Piston gate valve
  • Exhaust air function
    With flow control option
  • Changeover time
    16 ms
  • Temperature of medium
    -10 °C ... 50 °C
  • Pneumatic connection 1
    Sub-base, size 3 as per ISO 5599-1
  • Pneumatic connection 3
    Sub-base, size 3 as per ISO 5599-1
  • Valve function
    5/2, bistable
  • Operating pressure
    2 bar ... 10 bar
  • Degree of protection
    IP65
  • Sealing principle
    Soft
  • ISO code
    355
  • Flow direction
    Non-reversible
  • Symbol
    00991005
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pilot exhaust air port 84
    Not ducted
  • Seals material
    NBR
  • Actuation type
    Electrical
  • Pneumatic working port
    Sub-base, size 3 as per ISO 5599-1 G1/2
  • Operating voltage
    24V DC
  • Width dimension
    71 mm
  • Conforms to standard
    ISO 5599-1
  • Pilot air supply port
    Internal
  • Coil characteristics
    24 V DC: 2.5 W
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type of mounting
    With through-hole
  • Pneumatic connection 2
    Sub-base, size 3 as per ISO 5599-1
  • Housing material
    Die-cast aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
