1845721 Festo Pneumatic Actuators
Part#:1845721
Alt. Part#:DRVS-32-270-P
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description

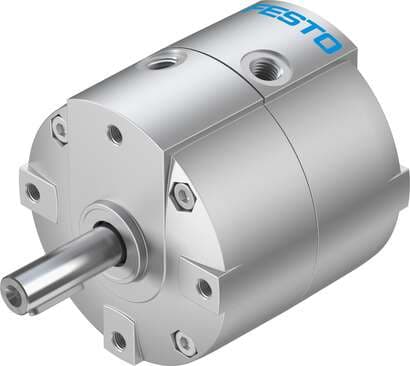

semi-rotary drive DRVS-32-270-P Size: 32, Cushioning angle: 0,5 deg, Swivel angle: 0 - 270 deg, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any
Product Details
- Cushioning angle 0.5 deg
- Position sensing For proximity sensor
- Variants Spigot shaft
- Max. axial force 75 N
- Ambient temperature 0 °C ... 60 °C
- Cushioning Elastic cushioning rings/pads at both ends
- Operating pressure 2 bar ... 8 bar
- Max. radial force 200 N
- Theoretical torque at 6 bar 10 Nm
- Size 32
- Mounting position Any
- Max. swivel frequency at 6 bar 2 Hz
- Product weight 896 g
- Drive shaft material Steel, nickel-plated
- Type code DRVS
- Symbol 00991265
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Permissible mass moment of inertia 0.02 kgm²
- Pneumatic connection G1/8
- Housing material Die-cast aluminum Painted
- Swivel angle 0 deg ... 270 deg
- Mode of operation Double-acting
- Design Rotary vane
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Type of mounting With internal thread
- Seals material TPE-U(PU)
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
