184519 Festo Air Boosters

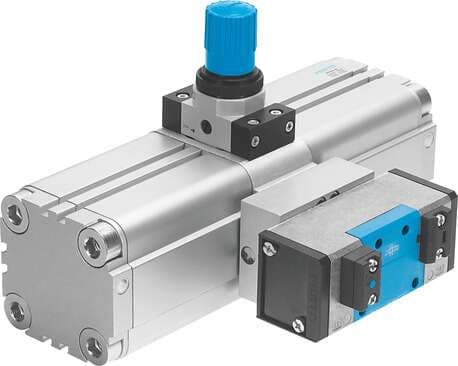

Festo 184519 pressure booster DPA-100-10 for generating higher pressures. Piston diameter: 100 mm, Assembly position: Any, Design structure: Twin-piston pressure booster, Pressure gauge: Prepared for G1/4, Output pressure 2: 4 - 10 bar
Festo

Part#:184519

Manufacturer:Festo

Alt. Part#:DPA-100-10

Product Lifecycle:Active

Get a quick Quote!

pressure booster DPA-100-10 for generating higher pressures. Piston diameter: 100 mm, Assembly position: Any, Design structure: Twin-piston pressure booster, Pressure gauge: Prepared for G1/4, Output pressure 2: 4 - 10 bar

About the manufacturer: Festo is one of the manufacturers that offers Air Boosters that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 184519 Festo price in the box on the right side or send a quick quote.

Product Details

  • Mounting position
    Any
  • Outlet pressure 2
    4 bar ... 10 bar
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Storage temperature
    5 °C ... 60 °C
  • Type code
    DPA
  • Pressure regulation range
    4 bar ... 10 bar
  • Inlet pressure 1
    2 bar ... 8 bar
  • Ambient temperature
    5 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Information on pressure regulation range
    If the controller spring is tensioned to the maximum, the maximum output pressure may be exceeded by 40%.
  • Operating pressure
    2 bar ... 8 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:3:4]
  • Type of mounting
    With internal thread
  • Pneumatic connection 3
    G1/2
  • Design
    Twin-piston pressure intensifier
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 2
    G1/2
  • Piston diameter
    100 mm
  • Symbol
    00991432
  • Pressure gauge
    G1/4 prepared
  • Product weight
    13000 g
  • Pneumatic connection 1
    G1/2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 184519 Specs

184519 184519 DataSheet.pdf
