1845713 Festo Pneumatic Actuators

1845713 on Powermatic Associates
Festo

Part#:1845713

Alt. Part#:DRVS-16-90-P

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

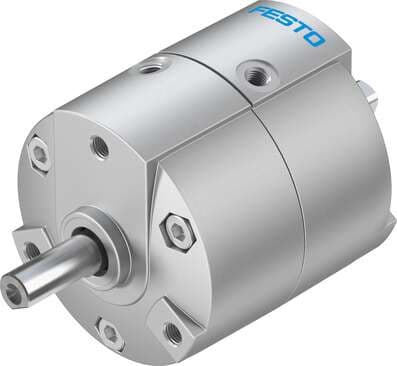

semi-rotary drive DRVS-16-90-P Size: 16, Cushioning angle: 0,5 deg, Swivel angle: 0 - 90 deg, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

Product Details

  • Size
    16
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Variants
    Spigot shaft
  • Max. axial force
    25 N
  • Type of mounting
    With internal thread
  • Mounting position
    Any
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Theoretical torque at 6 bar
    2 Nm
  • Permissible mass moment of inertia
    0.01 kgm²
  • Drive shaft material
    Steel, nickel-plated
  • Swivel angle
    0 deg ... 90 deg
  • Design
    Rotary vane
  • Max. swivel frequency at 6 bar
    3 Hz
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Note on materials
    RoHS-compliant
  • Housing material
    Die-cast aluminum Painted
  • Type code
    DRVS
  • Position sensing
    For proximity sensor
  • Operating pressure
    2.5 bar ... 8 bar
  • Max. radial force
    30 N
  • Pneumatic connection
    M5
  • Seals material
    TPE-U(PU)
  • Cushioning angle
    0.5 deg
  • Mode of operation
    Double-acting
  • Symbol
    00991265
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    0 °C ... 60 °C
  • Product weight
    272 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1845713 Related Documents

1845713 DataSheet.pdf
