1845707 Festo Pneumatic Actuators

1845707 on Powermatic Associates
Festo

Part#:1845707

Alt. Part#:DRVS-6-180-P

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

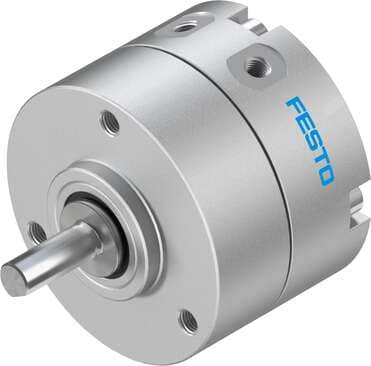

semi-rotary drive DRVS-6-180-P Size: 6, Cushioning angle: 0,5 deg, Swivel angle: 0 - 180 deg, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

Product Details

  • Cushioning angle
    0.5 deg
  • Mode of operation
    Double-acting
  • Max. swivel frequency at 6 bar
    3 Hz
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Permissible mass moment of inertia
    6.5E-4 kgm²
  • Pneumatic connection
    M3
  • Swivel angle
    0 deg ... 180 deg
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Position sensing
    For proximity sensor
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    38 g
  • Type of mounting
    With internal thread
  • Size
    6
  • Variants
    Spigot shaft
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Theoretical torque at 6 bar
    0.15 Nm
  • Housing material
    Wrought aluminum alloy Anodized
  • Type code
    DRVS
  • Design
    Rotary vane
  • Operating pressure
    3.5 bar ... 8 bar
  • Max. axial force
    10 N
  • Note on materials
    RoHS-compliant
  • Seals material
    TPE-U(PU)
  • Mounting position
    Any
  • Symbol
    00991265
  • Ambient temperature
    0 °C ... 60 °C
  • Max. radial force
    15 N
  • Drive shaft material
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
